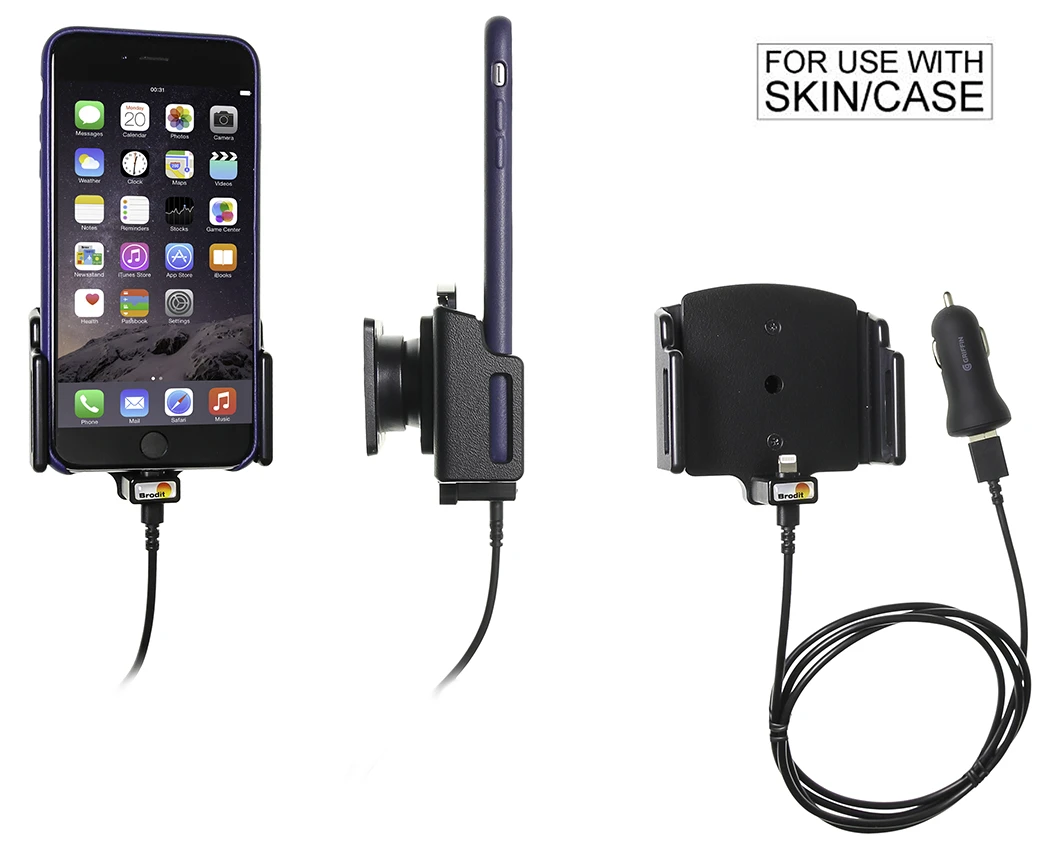

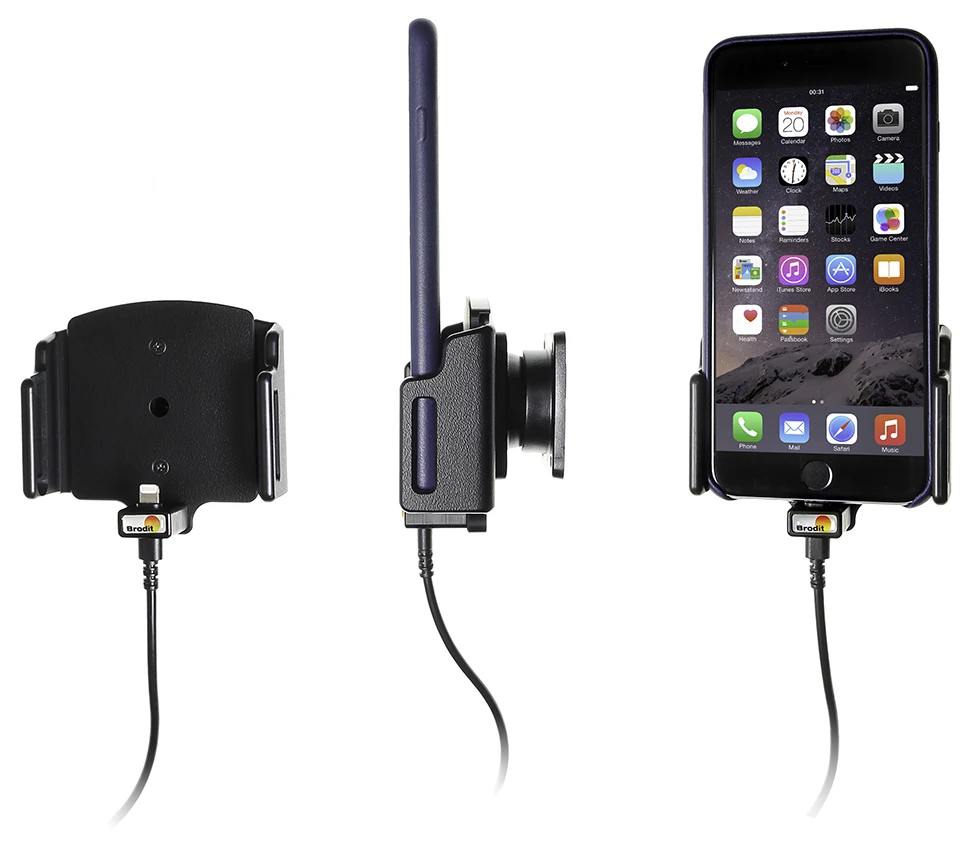

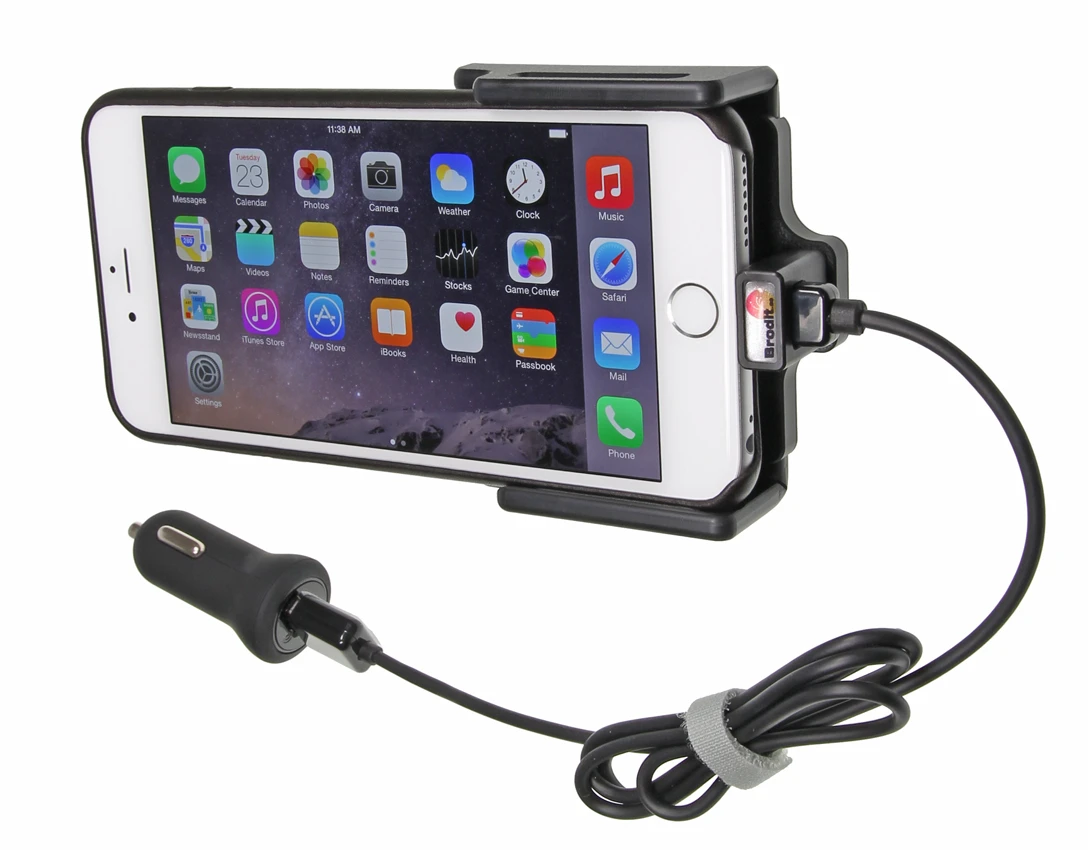

Active holder with USB-cable and cig-plug adapter
8 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
NOTE! It is important to slide the device STRAIGHT DOWNWARD into the holder, and to slide it STRAIGHT UPWARD out of the holder.
Use an active holder for your iPhone on the road and you will always have a freshly charged battery! In addition, you will always have your iPhone within easy sight and reach. Safe, comfortable and convenient! The holder has a neat and discreet design which blends well with the vehicle's interior. Your iPhone is held securely in place in an upright position for maximum cellular reception.

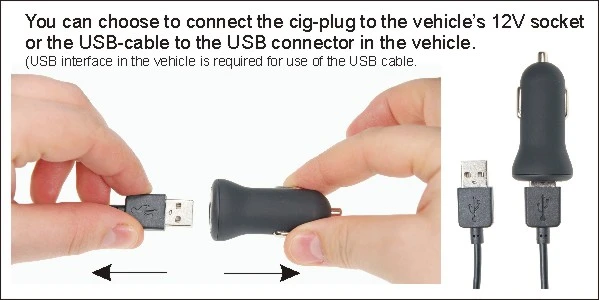

The holder is equipped with an Apple approved cig-plug cable for connection to the vehicle's 12 Volt socket. When you place the iPhone in the holder, it automatically connects to the charging unit. If you have a car with USB interface, you can disconnect the cig-plug from the holder's cable in order to get a USB-cable to connect directly to the USB connector in your vehicle.
Length of charging cable: 123 cm.
Important note!
In order to be able to transmit audio files from your device through the USB-cable this feature must be supported by the stereo in your car. This is easily tested by connecting your device to the stereo with the USB/charging cable that comes with your device. Charging through USB works regardless.
The holder is made of ABS plastic and has a perfect fit. It is easy to put the device into the holder, and just as easy to take it with you when leaving the vehicle.
Fits devices with skin that has the following dimensions: Width: 75-89 mm, Thickness: 2-10 mm. (May fit for skins thicker than 10 mm, depending on shape/design of the edges).
The holder is equipped with a tilt swivel so you can adjust the angle of your device in order to avoid light reflection on the screen. You can tilt the holder 22° in each direction. Attach onto ProClip Mounting Platform.
This product supports Qualcomm QC 2.0 quick charge (provided the device supports Qualcomm QC 2.0 quick charge).
دليل تركيب المنتج
رقم الخطوة 1

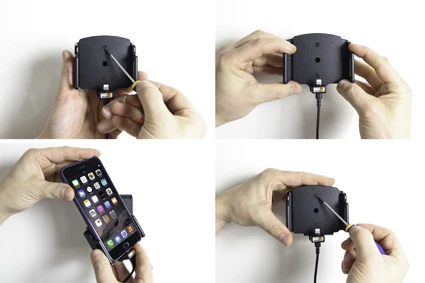

To adjust the holder for your device: Loosen the screws on the front side of the holder, so the sides of the holders can be adjusted. Place the device in the holder and press the sides together so the device is firmly in place. Tighten the screws on the front side of the holder.
رقم الخطوة 2

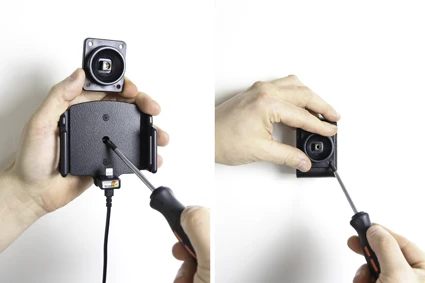

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.
رقم الخطوة 3

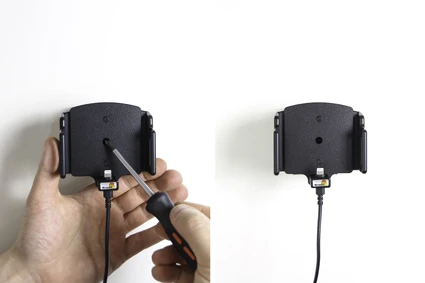

Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Screw a few turns on the screw, just so the thread starts to pull. Pull the holder toward you and hold it slightly tensed, in the same time tighten the screw so the holder is pulled toward the tilt swivel. Tighten the screw firm at first, then loosen it a bit so the holder is firmly in place, but still can be adjusted. NOTE! It is important to slide the device STRAIGHT DOWNWARD into the holder, and to slide it STRAIGHT UPWARD out of the holder.
رقم الخطوة 4

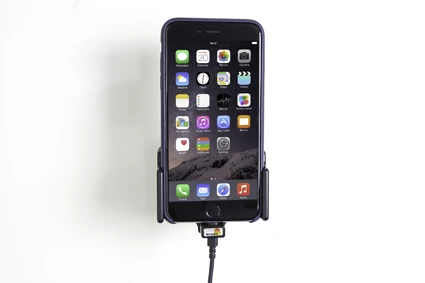

The holder is in place.
