For use with Li-Ion or Li-Poly batteries.

معلومات فنية

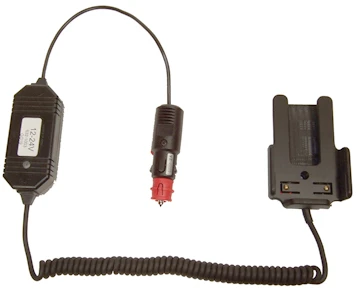

The Vehicle Charging Cradle is custom made for a perfect fit. The cradle holds a two-way radio in an upright position for better reception. Each has a cigarette lighter charging cord permanently attached to the cradle with built in contact points for the battery. Utilizing a Delta-V charging technique, the cradle provides rapid and trickle charging. The Vehicle Charging Cradle can accommodate original battery sizes for a variety of two-way radios. Each cradle has a number of features such as a security timer, overheat sensor, and LED indicator to show that charging is in progress. The indicator changes from red to green when fully charged. Attach onto a ProClip Mounting Platform.

التعليمات

General description:

- Voltage limited current generator.

- Battery chemistry LiIon

- Voltage regulation terminates charging

- LED status changes when battery is charged (to about 75%)

Specifications:

Input voltage: 10-30 V:

Maximum output voltage 8.4V

Number of cells 2

Charging current max 450 mA

Charging time: about 3 hours/ amp hour capacity

Restart: No restart the battery is charged as soon as the voltage falls under 8.4V

Battery voltage: 8.4 V

Take the radio (battery) out of the holder if it isn't going to be used for longer times.

التوافق

• Kenwood : TK-3360
• Kenwood : NX-320
• Kenwood : TK-3170
• Kenwood : TK-2360
• Kenwood : TK-3173
• Kenwood : TK-2140
• Kenwood : TK-2160
• Kenwood : TK-3160
• Kenwood : TK-2170
• Kenwood : TK-3140
• Kenwood : NX-220
