Active holder with cig-plug
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

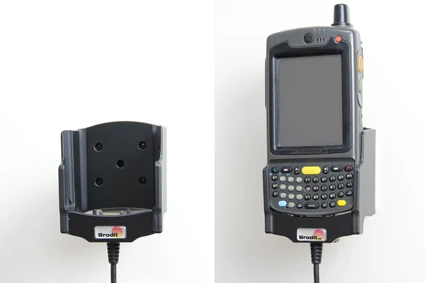

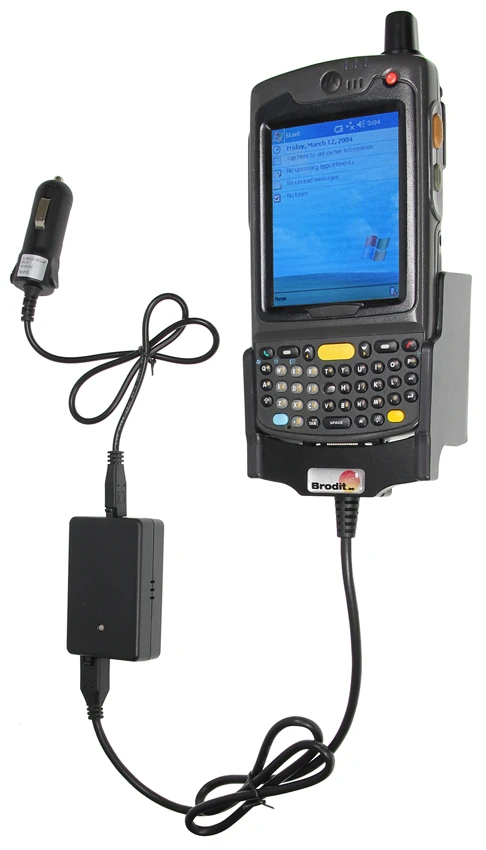

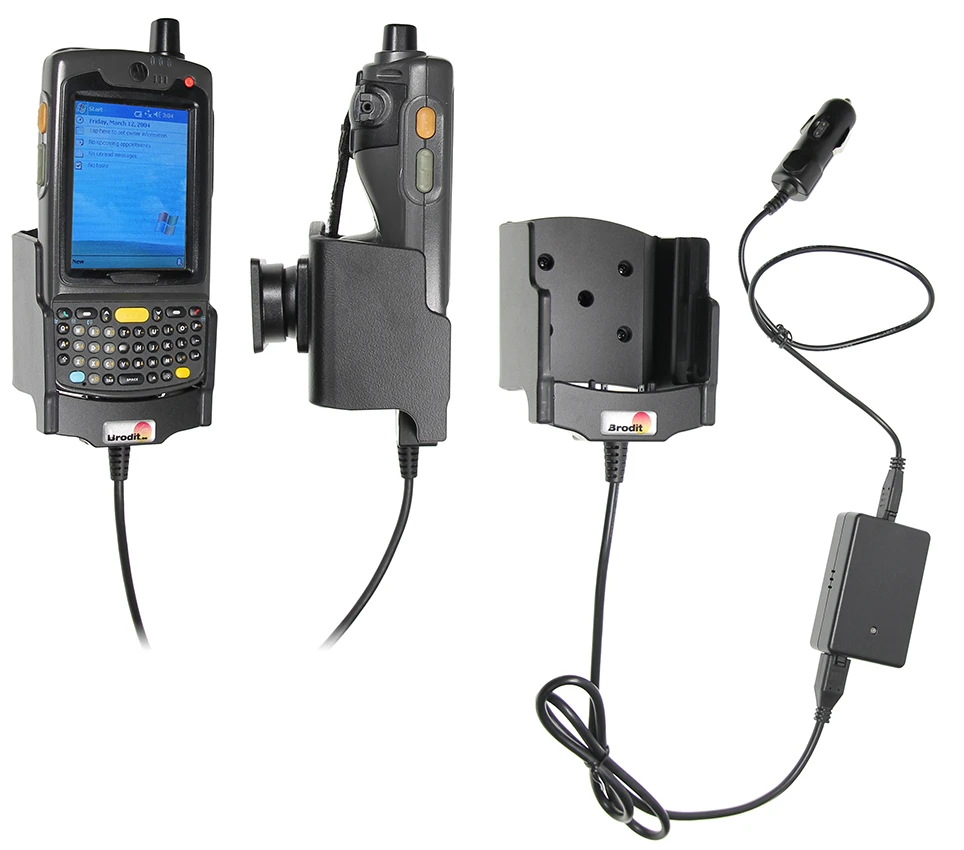

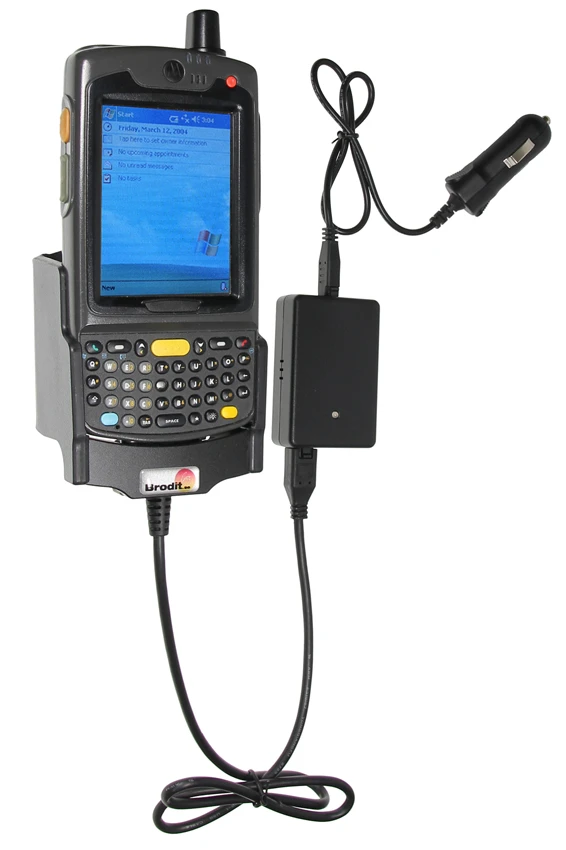

The active holder charges your battery when it is in the holder. The charging device connects to the PDA automatically when you put the PDA in the holder. The holder is attached onto a tilt swivel and can be adjusted in order to avoid light reflection. Connects to the vehicle’s cigarette lighter socket, 12/24 Volt. The holder fits devices both with standard and extended battery. Attach onto ProClip Mounting Platform.
Charging specifications:
Input voltage: DC/10-30V
Charging voltage: DC/4.75-5.3V
Output current(Typ): 2.0A
Input & output protection: Input polarity reversal/Output over voltage/Output over current/Output short protection
LED charging indicator: Power input indicator(Green), Ovp/Ocp/Output short(Red)
Operating temperature: 0°C ~ +40°C
Storage temperature: -20°C ~ +80°C
RoHS compliant: ROHS
دليل تركيب المنتج
رقم الخطوة 1

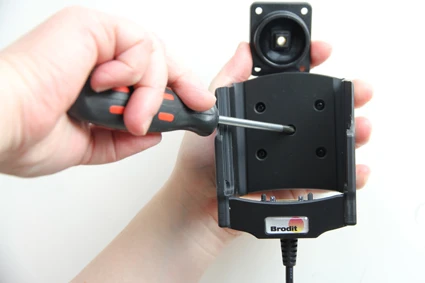

Loosen the screw in the center of the holder so you can remove the attaching part on the back.
رقم الخطوة 2

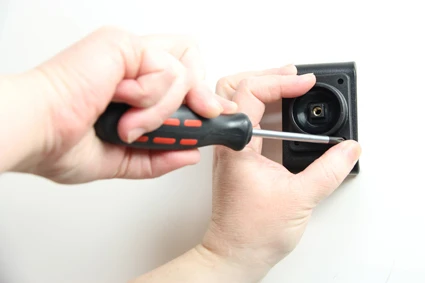

Place the attaching part on desired position. Screw the attaching part into place with the enclosed screws.
رقم الخطوة 3

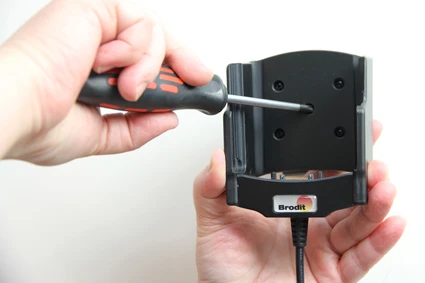

Place the holder over the attaching part. Screw the holder onto the attaching part.
رقم الخطوة 4
The holder is in place. Peel off the adhesive tape cover on the box. Place the box into the desired position inside the dashboard and press it into place so the adhesive tape attaches.
