تفاصيل المنتج

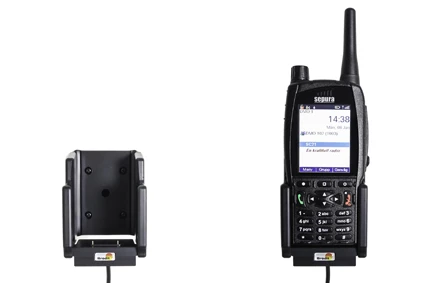

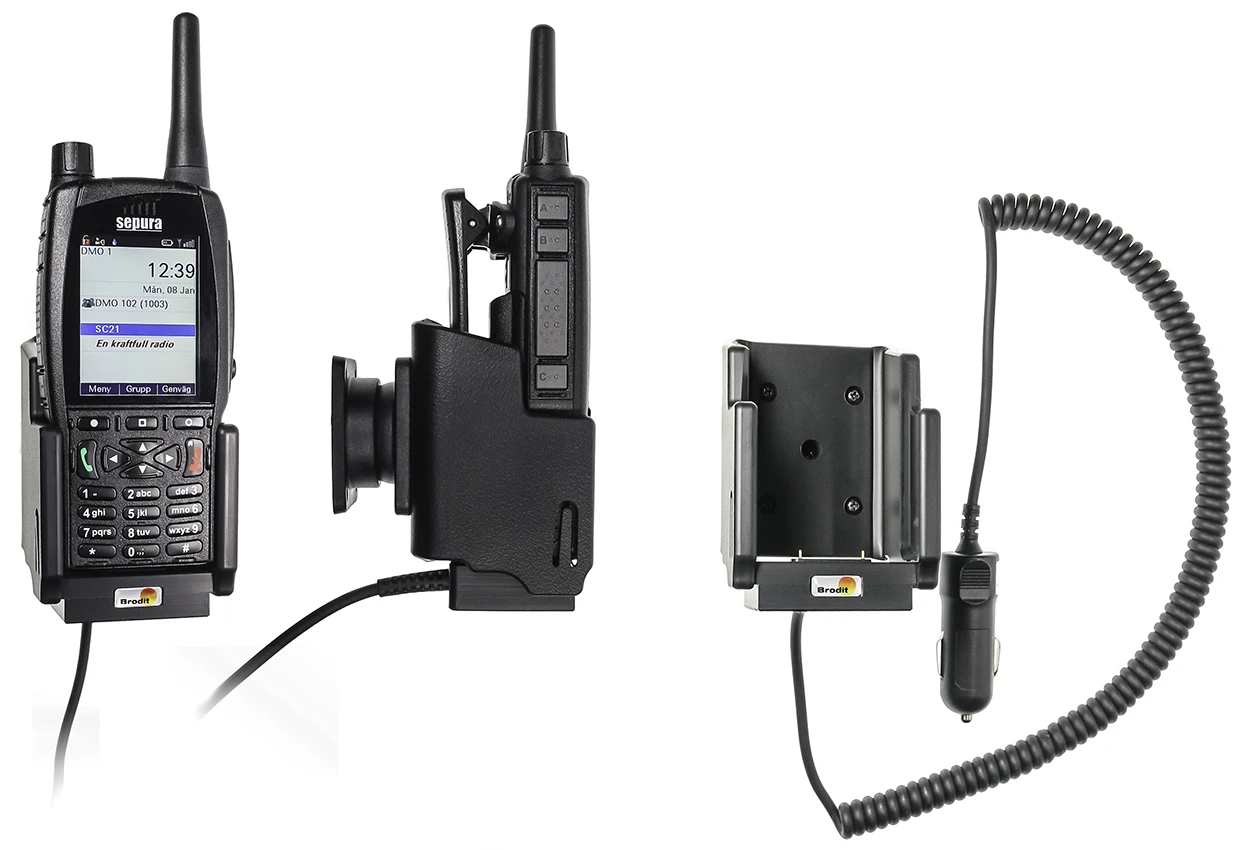

Active holder with cig-plug
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
Are you using a two-way radio every day in your work? Then a Brodit active holder will make your days much easier! By keeping the device in an active holder, you will always have it within easy sight and reach while driving between jobs. Not only that; the holder also supplies a fully charged battery at all times. The active holder has a unique slim design with the charging box integrated in the holder. Connects to the vehicle’s cigarette lighter socket, 12/24 Volt. Attach onto a ProClip Mounting Platform.
دليل تركيب المنتج
رقم الخطوة 1

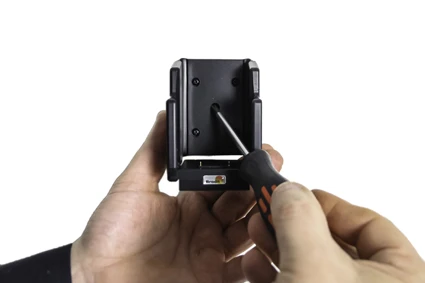

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 2

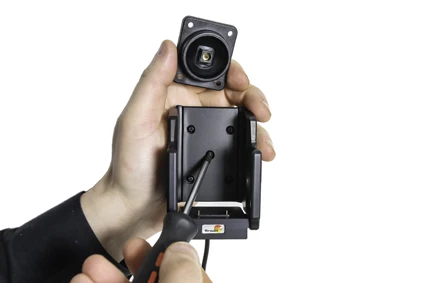

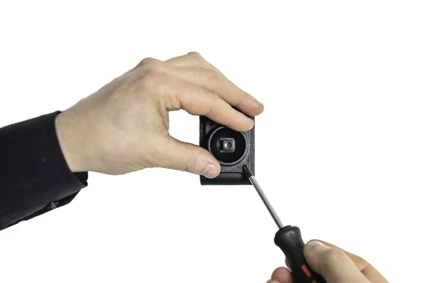

Place the attaching plate on desired position. Screw the attaching plate into place with the enclosed screws.
رقم الخطوة 3
Place the holder over the attaching plate so the tilt swivel fits. Screw the holder onto the attaching plate.
رقم الخطوة 4

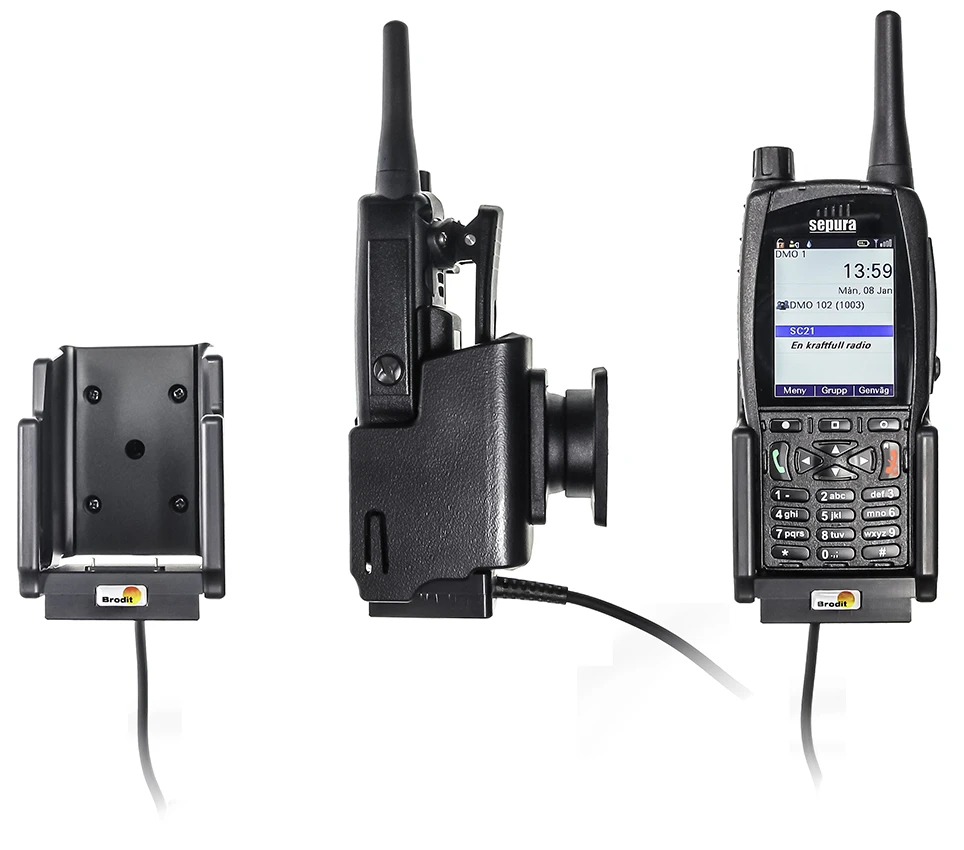

The holder is in place. Charging Specifications Battery Chemistry: Li-ion or Li-Poly batteries Input Voltage: 11-30 V Charging Voltage: 9.5 V Max. Charging Time: 2-3 hours depending on battery capacity Rapid Charge: 1,2 A +/- 5% RoHS Compliant: Yes Input Transient Protected: Withstands +150V & -450V. A 2,5A fuse is mounted on the incoming supply. Output Short Circuit Protected: The charger will supply a maximum current of 1,2 A which protects both the charger and the connected equipment. The current limit is set to standards of the producer and shall not be higher.
