Active holder with cig-plug

رقم الصنف : 712447

With tilt swivel. 2.7A charging. 12/24V. With Easy-switching system. Charging via pogo pins. For device with standard/extended battery, with/without handstrap/pistolgrip.

Honeywell CK62

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

With tilt swivel. 2.7A charging. 12/24V. With Easy-switching system. Charging via pogo pins. For device with standard/extended battery, with/without handstrap/pistolgrip.

معلومات فنية

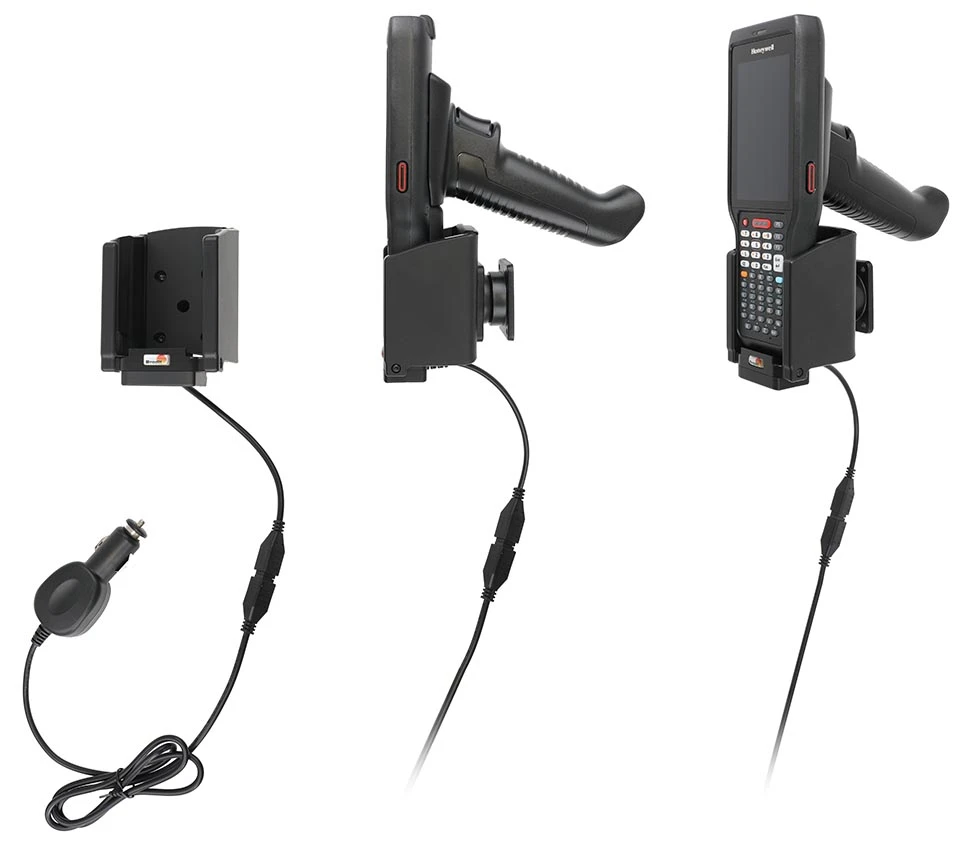

Charging holder with cigarette lighter plug. Keeps your battery fully charged at all times and your device in an upright position for better reception. Provides for safer driving when viewing, accessing and operating your device in your vehicle. Custom made design with a perfect, firm fit for device with standard and extended battery, with or without handstrap, as well as with or without pistolgrip. Easy dock/undock your device with one hand.

Charging via pogo pins for reliable and durable charging that is gentle on the device's charging connector and can withstand frequent daily use. 2.7A charging. 12/24 Volt.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. For easy and optimal installation, attach the holder onto a custom ProClip Vehicle Mount, a Pedestal Mount or attach it directly to any surface.

Easy-switching system:

The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

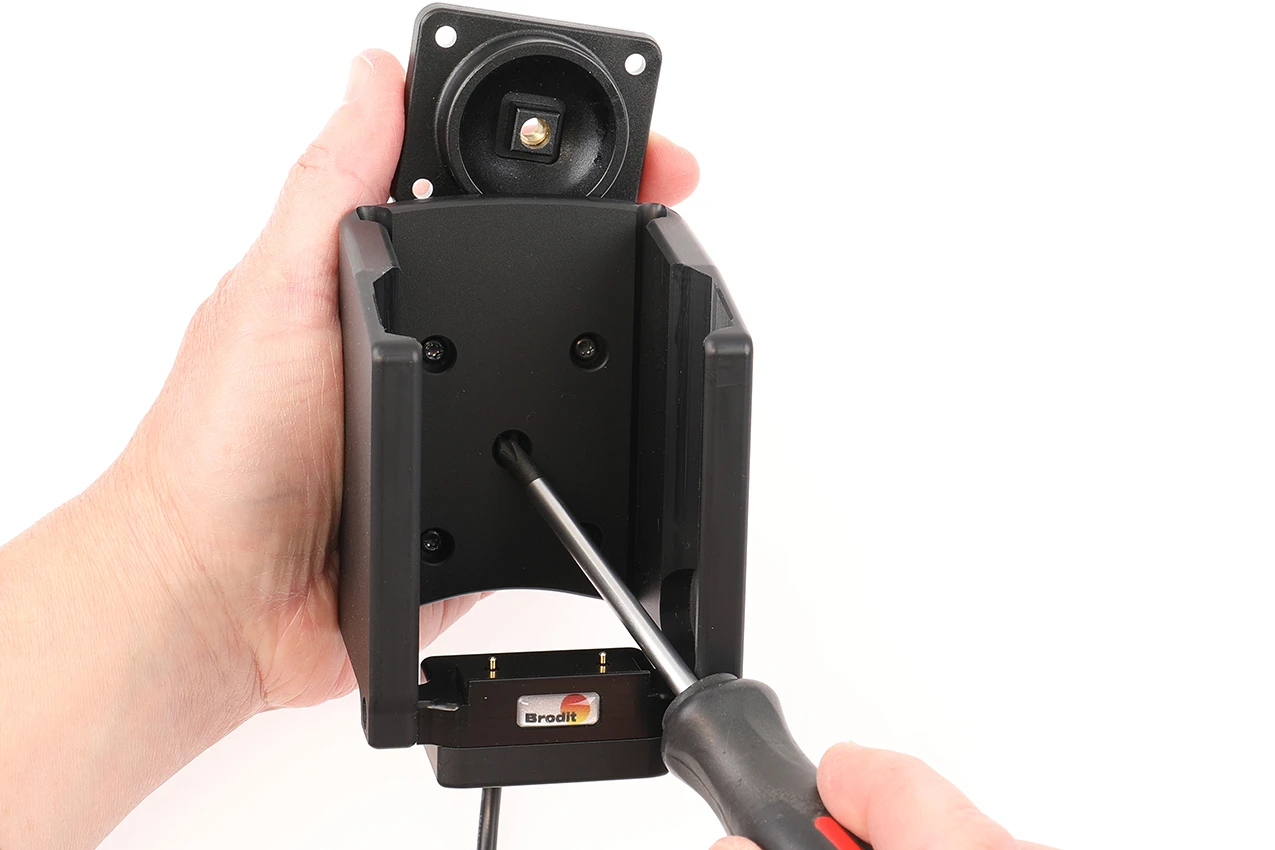

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

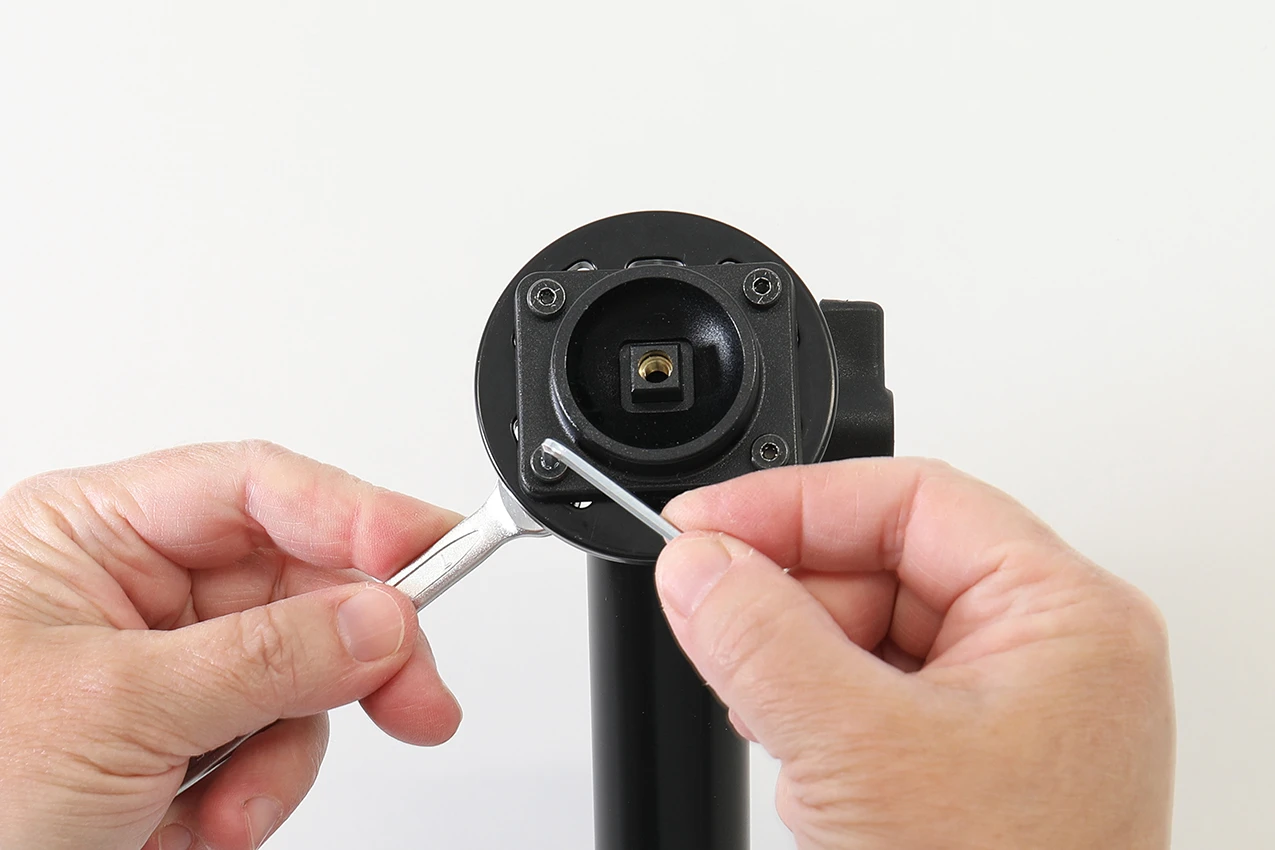

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.

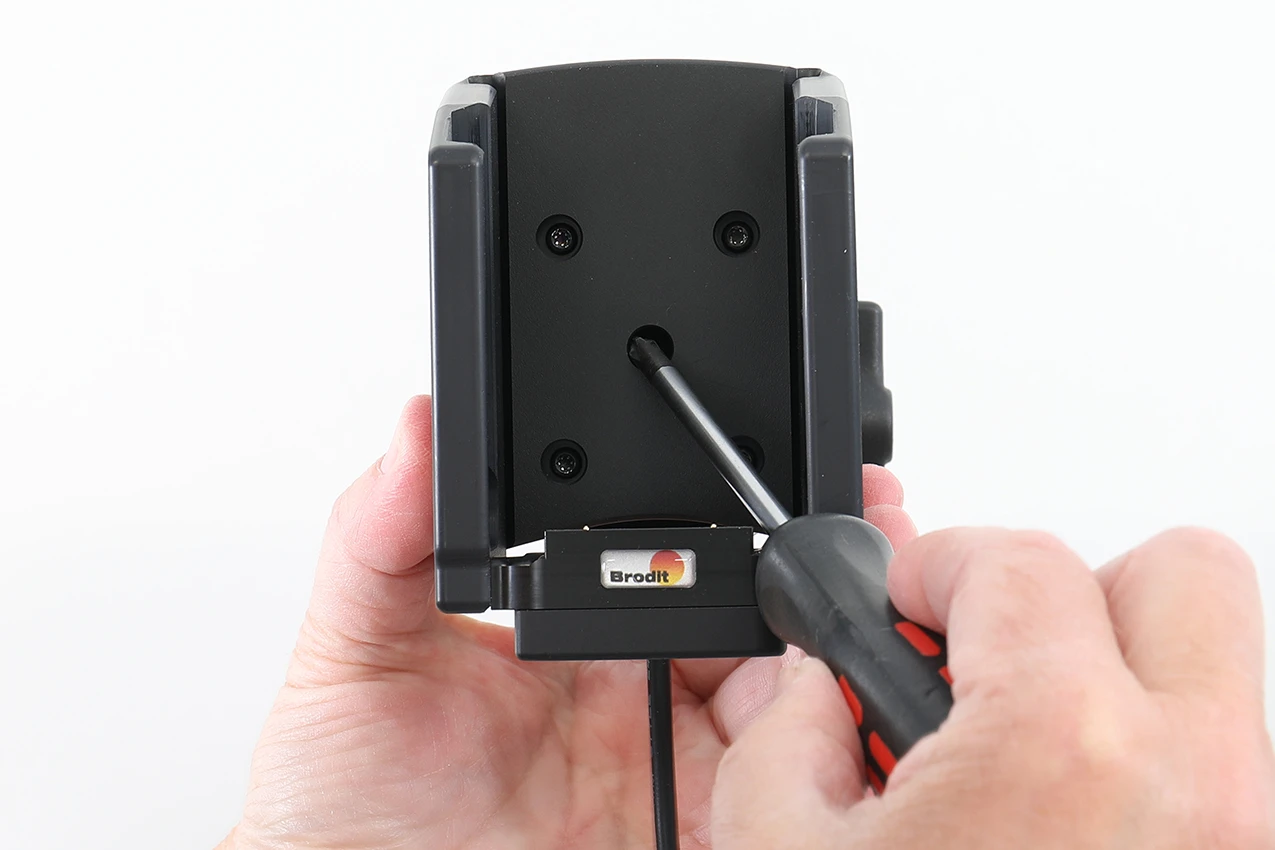

3. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw so the holder is firmly in place, but still can be adjusted.

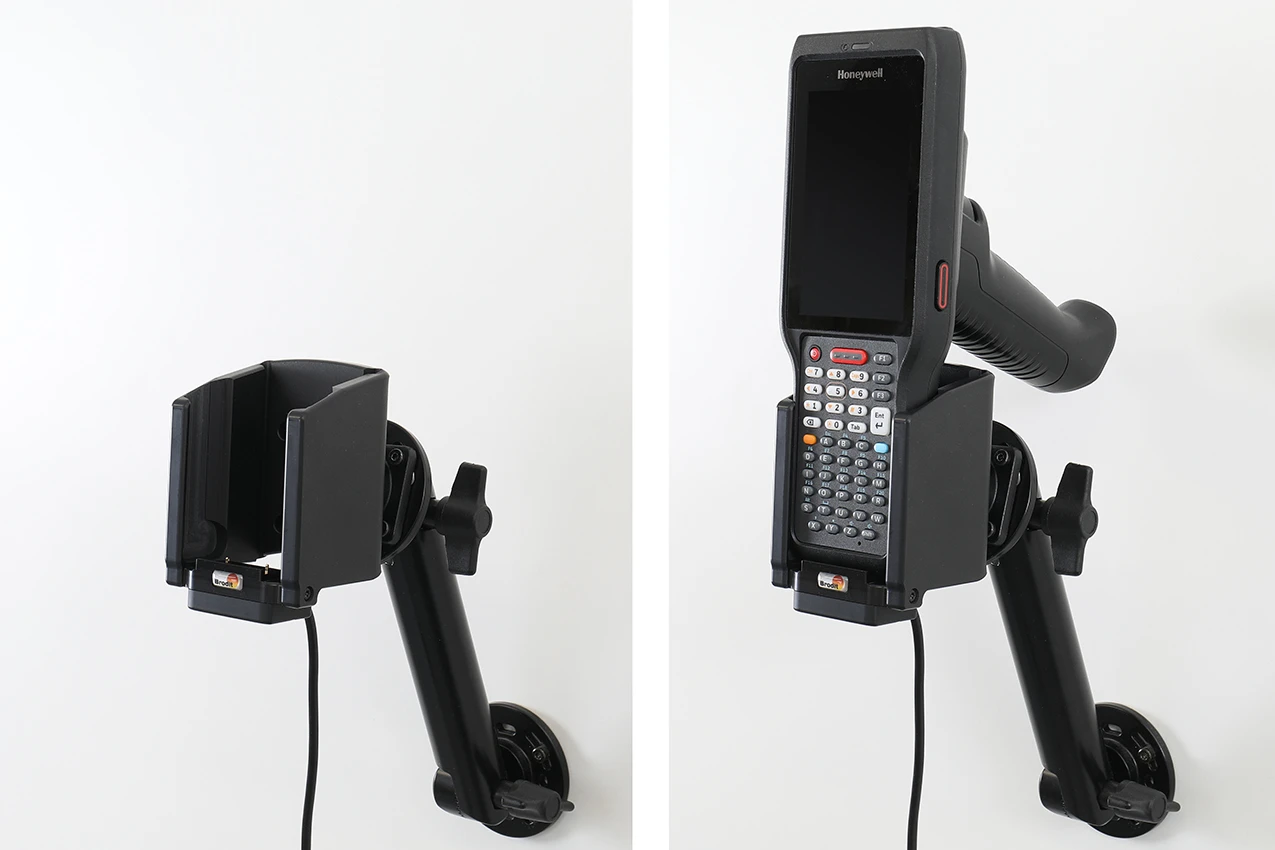

4. The holder is in place.

التوافق

Honeywell : CK62
