تفاصيل المنتج
Active holder with cig-plug
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

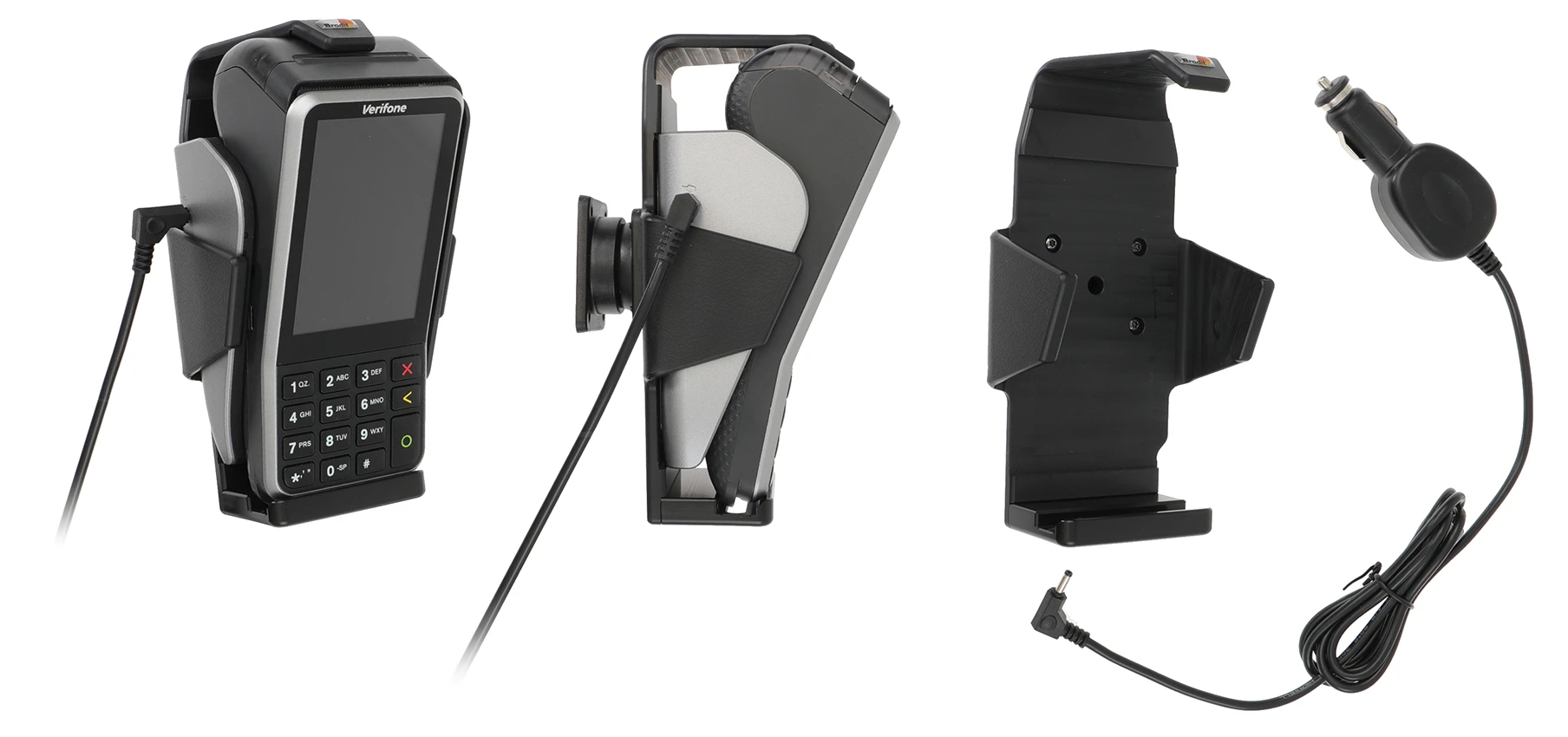

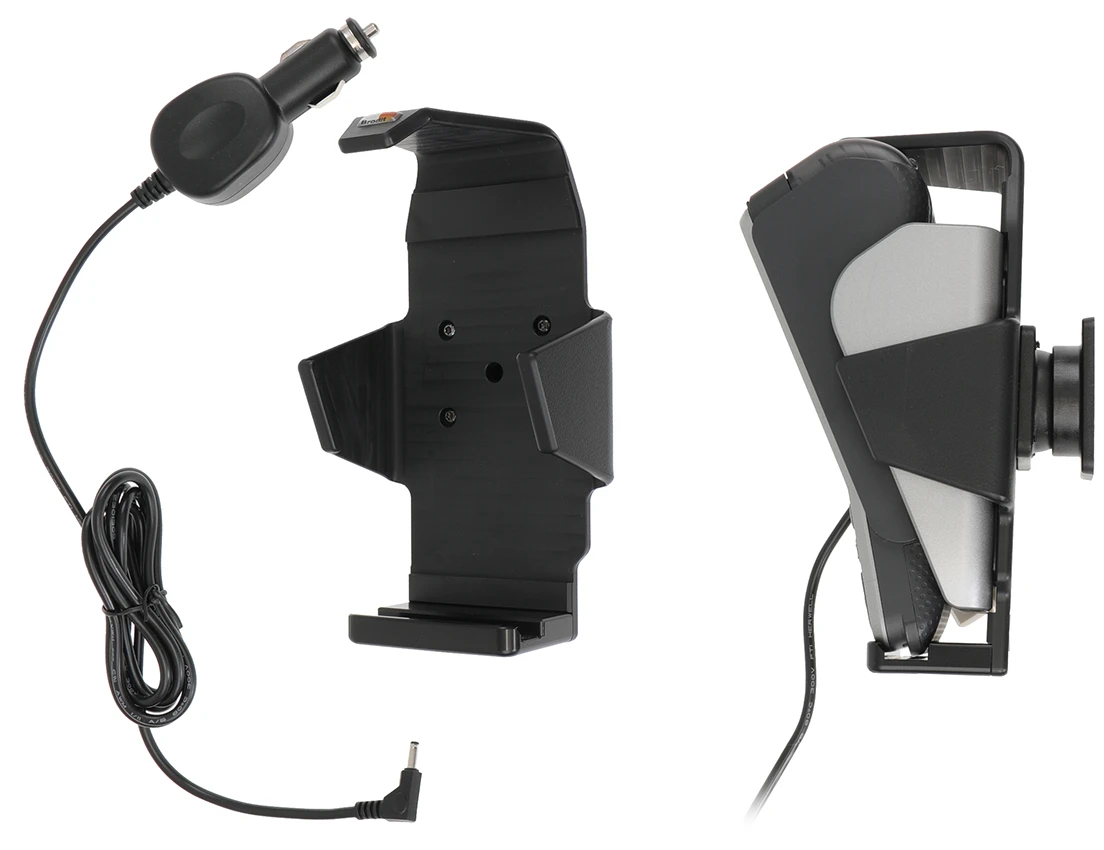

With your payment terminal in an active holder, you will always have a fully charged battery. Customized, perfect fit foe device with base station. 12/24 Volt.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS plastic. Color: black. Made in Sweden. Attach onto a ProClip Mounting Platform or a Pedestal Mount.
دليل تركيب المنتج
رقم الخطوة 1

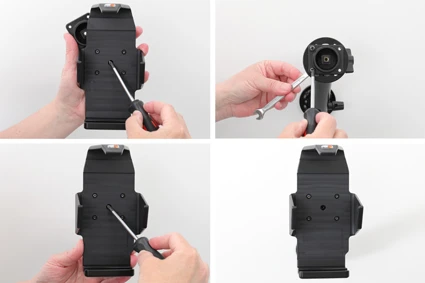

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 2

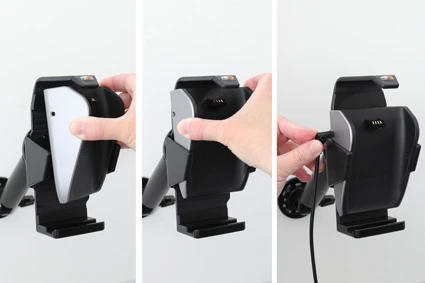

Place one side of the base station into the holder. Rotate the base station, at the same time press forward so it goes into the holder. Slide it downwards into place. Attach the charging cable to the base station.
رقم الخطوة 3

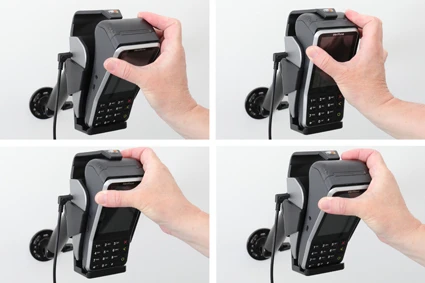

Place the lower part of the device in the lower part of the holder. Press/flip the upper part of the device forward into the holder. Pull the upper part of the device out of the upper part of the holder. Lift the device out from the holder.
رقم الخطوة 4

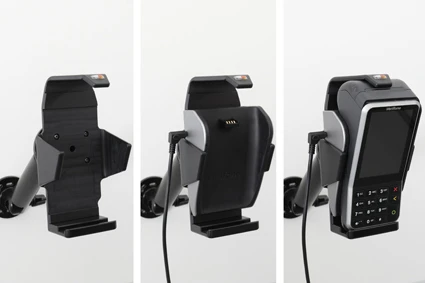

The holder is in place.
