Active holder with cig-plug
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

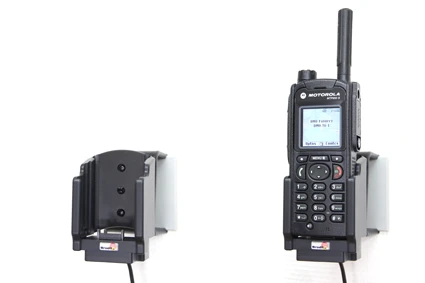

Are you using a two-way radio every day in your work? Then a Brodit active holder will make your days much easier! By keeping the device in an active holder, you will always have it within easy sight and reach while driving between jobs. Not only that; the holder also supplies a fully charged battery at all times.
The active holder has a unique slim design with the charging box integrated in the holder and LED indicator to show that charging is in progress, the indicator changes from red to green when fully charged. Attach onto a ProClip Mounting Platform.
دليل تركيب المنتج
رقم الخطوة 1

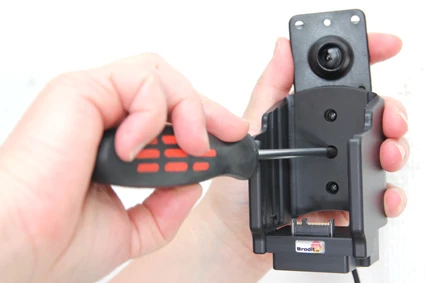

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 2

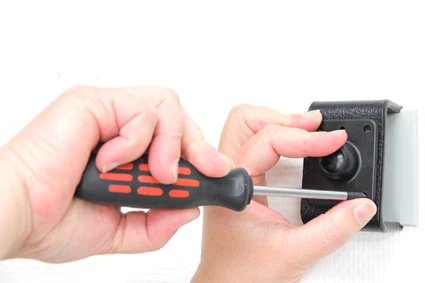

Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.
رقم الخطوة 3

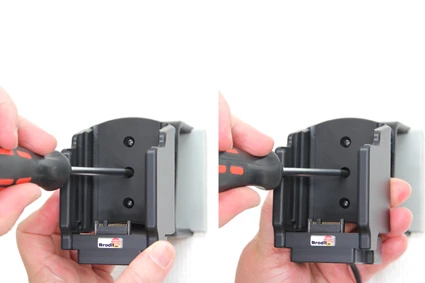

Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Screw a few turns on the screw, just so the thread starts to pull. Pull the holder toward you and hold it slightly tensed, in the same time tighten the screw so the holder is pulled toward the tilt swivel. Tighten the screw firm at first, then loosen it a bit so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 4
The holder is in place. Specifications: Input voltage 11-30 Volt Output voltage 4.6 Volt Charge current 1.6A Charge time 2-3 hours Efficiency 82% Built-in 2,5A non replaceable fuse
