With tilt swivel. Slim design with charger integrated in the holder and with USB on-the-go connectivity.

معلومات فنية

Are you using your Symbol every day in your work? Then a Brodit active holder will make your days much easier! By keeping the device in an active holder, you will always have it within easy sight and reach while driving between jobs. Not only that; this active holder supplies a fully charged

battery at all times, as well as USB on-the-go! This means that the Symbol can be run as both host and client (depending on the equipment connected to the holder).

The active holder has a unique slim design with the charging box integrated in the holder, so the cigarette lighter cable has no hefty charging box on the cable. The holder is made of black ABS plastic which is cold and heat resistant so you can use it in any environment. It is safe to use because of the short circuit protection and its high efficiency which reduces the heat produced in the unit.

Attach the holder to a ProClip Mounting Platform in order to get a firm installation in any car or truck. The holder can be used with the following cables:

Item no 945021 Micro USB - RS-232 (driver required)

Item no 945020 Micro USB - USB-A female

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

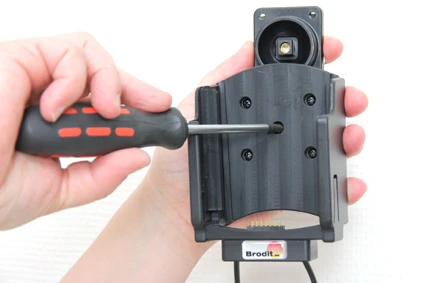

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

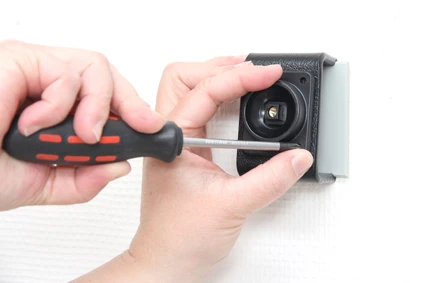

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.

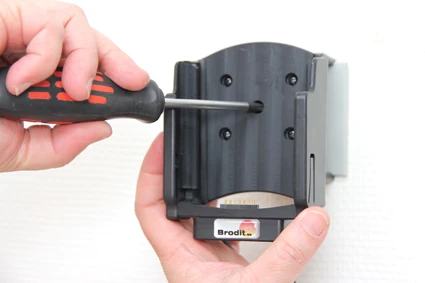

3. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.

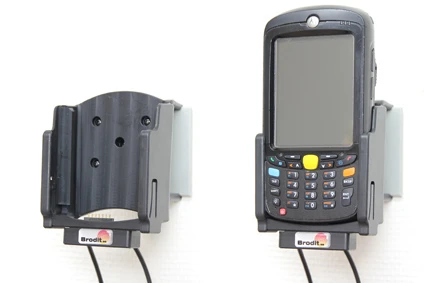

4. The holder is in place.

التوافق

• Symbol : MC55
• Motorola : MC55
• Symbol : MC65
• Zebra : MC67
• Motorola : MC65
• Symbol : MC67
• Zebra : MC65
• Zebra : MC55
• Motorola : MC67
