Active holder with cig-plug
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

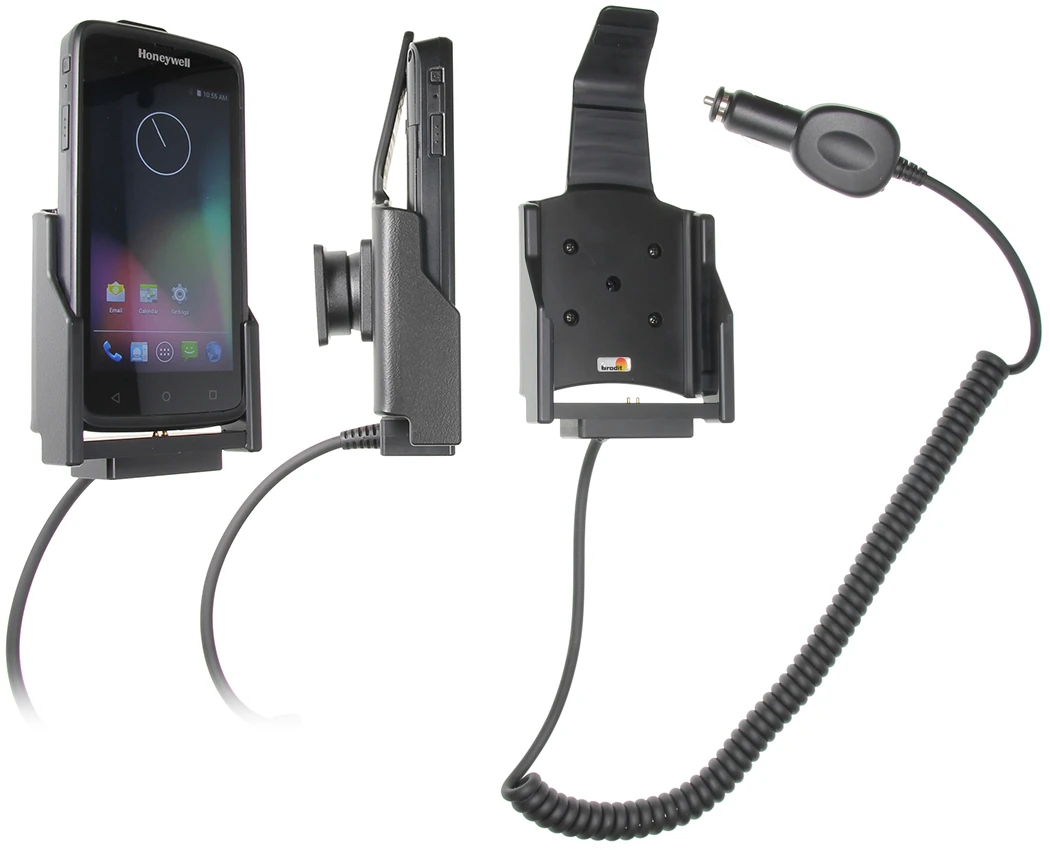

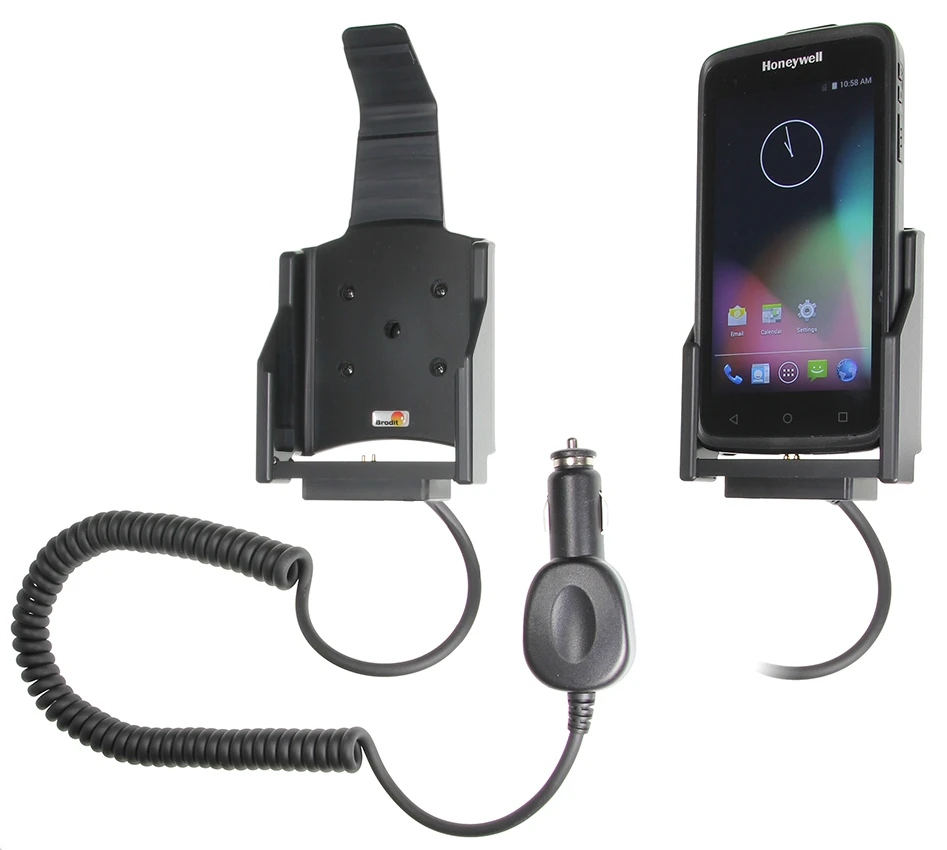

The active holder charges your battery when it is in the holder. The charging device connects to the PDA automatically when you put the PDA in the holder. The holder is attached onto a tilt swivel and can be adjusted in order to avoid light reflection. Connects to the vehicle's cigarette lighter socket, 12/24 Volt. Fits for device with or without handstrap. Attach onto a ProClip Mounting Platform.
Dimensions: 85 x 177 x 62 mm (W x H x D mm)
Weight: 284 g
Cable length (+plug 9,5 cm): 66 cm, stretched:150 cm (or a bit more if needed).
Charging specifications:
Input voltage: DC/10-24V
Charging voltage: DC/4.6-5.3V
Output current(Typ): 3.0A
Input & output protection: Input polarity reversal/Output over voltage/Output over current/Output short protection
LED charging indicator: Product output indicator
Operating temperature: 0°C ~ +40°C
Storage temperature: -20°C ~ +80°C
RoHS compliant: ROHS
دليل تركيب المنتج
رقم الخطوة 1

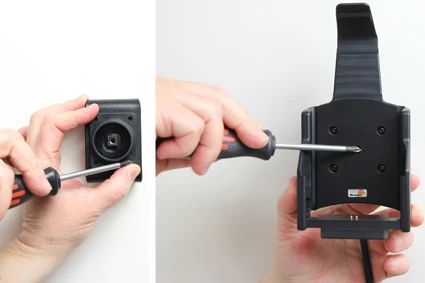

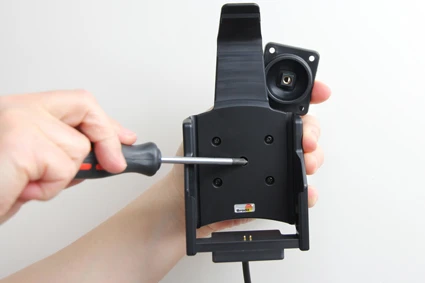

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 2
Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 3

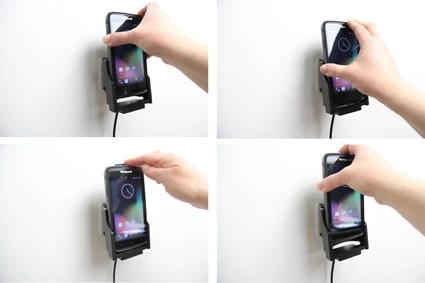

To place the device in the holder: Place the bottom part of the device into the holder. Slide the device downward into place in the holder. To remove the device from the holder: Press the upper part of the holder forward. When the device is set free, lift it upward out of the holder.
رقم الخطوة 4

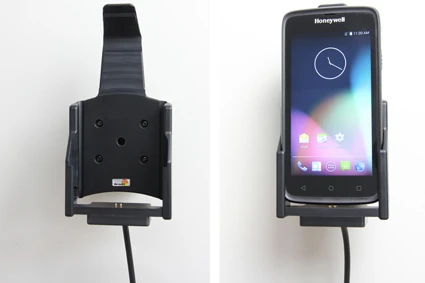

The holder is in place.
