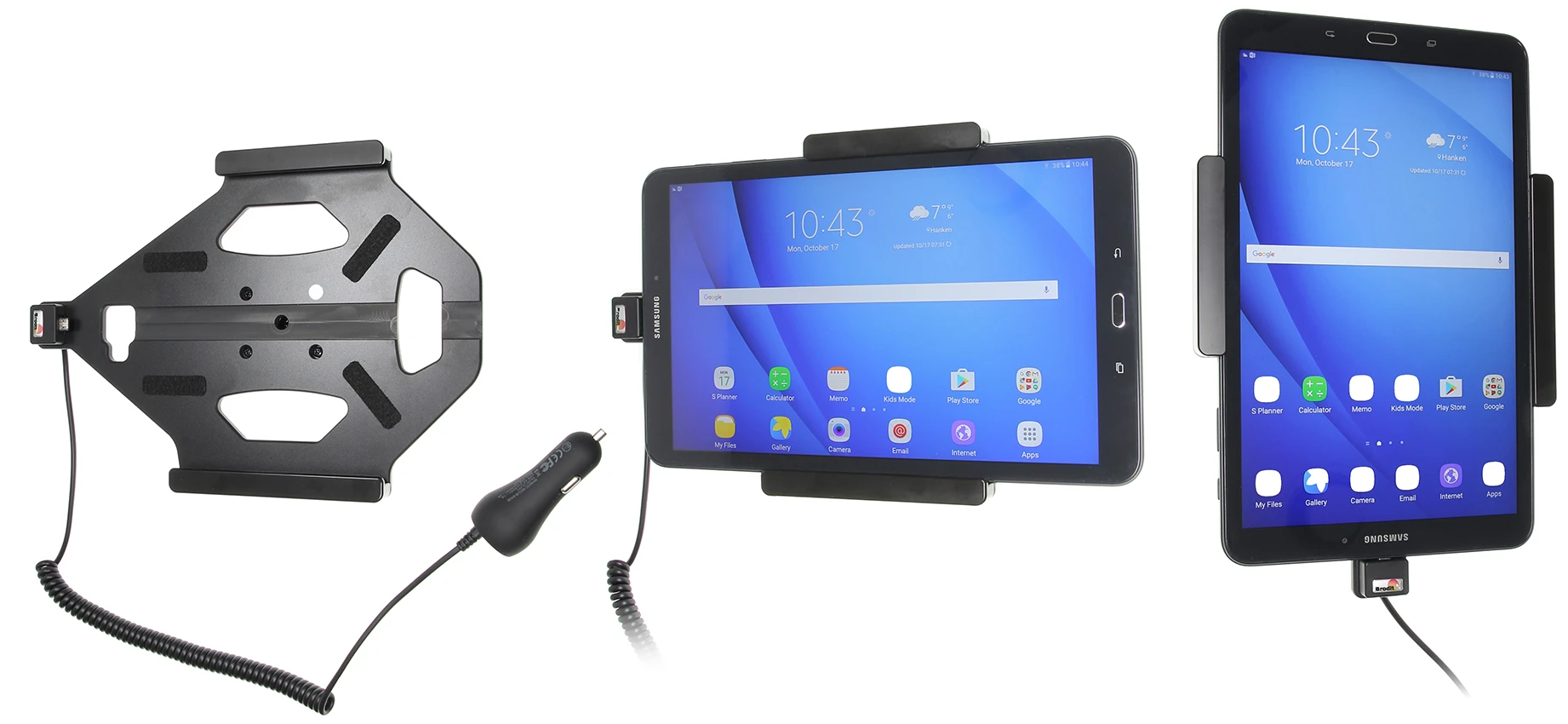

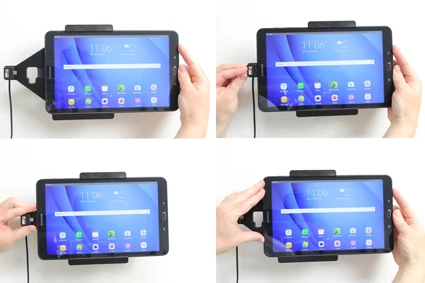

Keep your device's battery fully charged in an active holder, always within easy sight and reach! Neat, discreet and convenient. Custom made with a perfect, firm fit. With cig-plug cable, 2A charging via the Micro-USB connector. You can charge a second device via the USB A outlet in the cig-plug, 1A charging. You have full access to the camera and all buttons when the device is in the holder. It is easy to slide the tablet in place in the holder so it connects to the charging, and to take it out of the holder when leaving the vehicle.

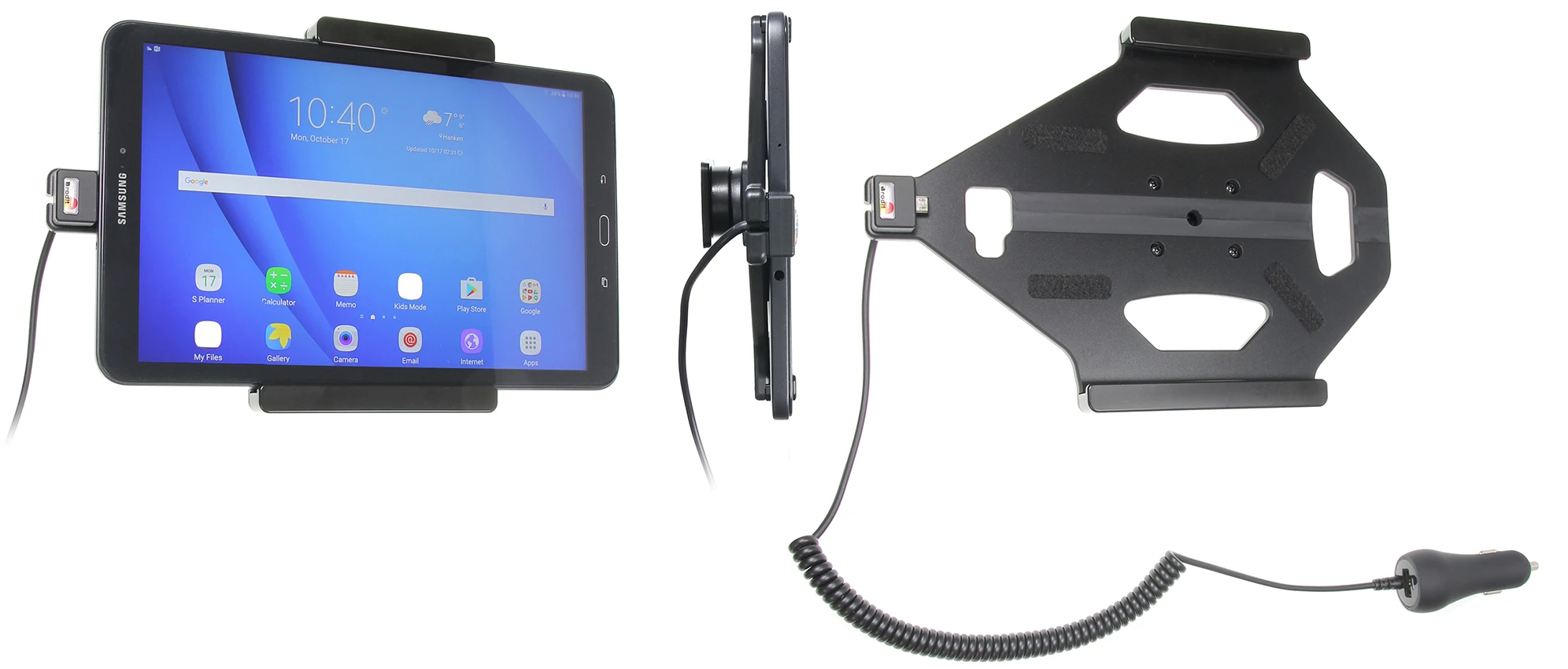

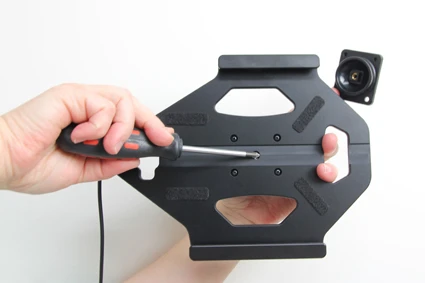

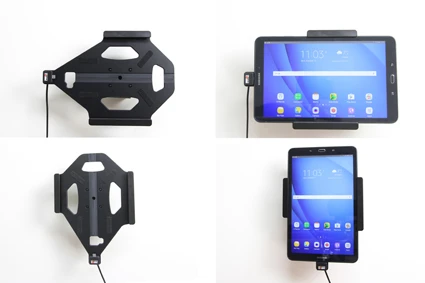

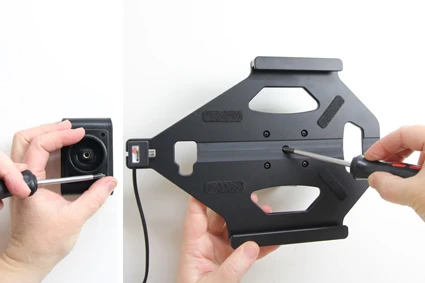

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 20° and swivels 360°. Mounting plate 42x50 mm with predrilled AMPS-holes +2x3,5 mm centered holes. Made of high grade black ABS/Acetal plastic. Made in Sweden.

Tablets (Surfpads) should not be installed onto a car’s dashboard if they block the view or block key controls. ProClip (Brodit’s vehicle mounting bracket) is designed for installation of smaller devices like mobile phones and GPS devices, ProClip is not designed for large devices like tablets. In some vehicles the ProClip has an extra firm fit and can then be used also for installation of a tablet. If you want to place a tablet onto the car’s dashboard, each combination of tablet-car must be examined in detail by you in order to determine if such an installation is possible in the specific case. Consideration should be given to the position and how firmly the ProClip is in place, as well as the size of the tablet you wish to use. Brodit will not give any recommendations for such installations.

An installation of a tablet onto a vehicle’s dashboard is always done on the customer’s own responsibility. Brodit recommends to use tablets on the car’s headrest, installed onto a Brodit headrest mount.

Dimensions: 175 x 250 x 42 mm (W x H x D mm)

Weight: 301 g

Cable length (+plug 8 cm): 46 cm, stretched:100 cm (or a bit more if needed).

Charging specifications:

Input voltage: DC/10-30V

Charging voltage: DC/4.75-5.25V

Output current(Typ): 2.0A

LED charging indicator: Power on.

Operating temperature: 0°C ~ +40°C

Storage temperature: -20°C ~ +60°C

Approvals: E, CE, FCC, ROHS
