Active holder with cig-plug

رقم الصنف : 216236

With tilt swivel. 3A charging. 12/24V. With Easy-switching system. Charging via pogo pins. Fits for device with handstrap.

Zebra TC70

Zebra TC72

more...

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

With tilt swivel. 3A charging. 12/24V. With Easy-switching system. Charging via pogo pins. Fits for device with handstrap.

معلومات فنية

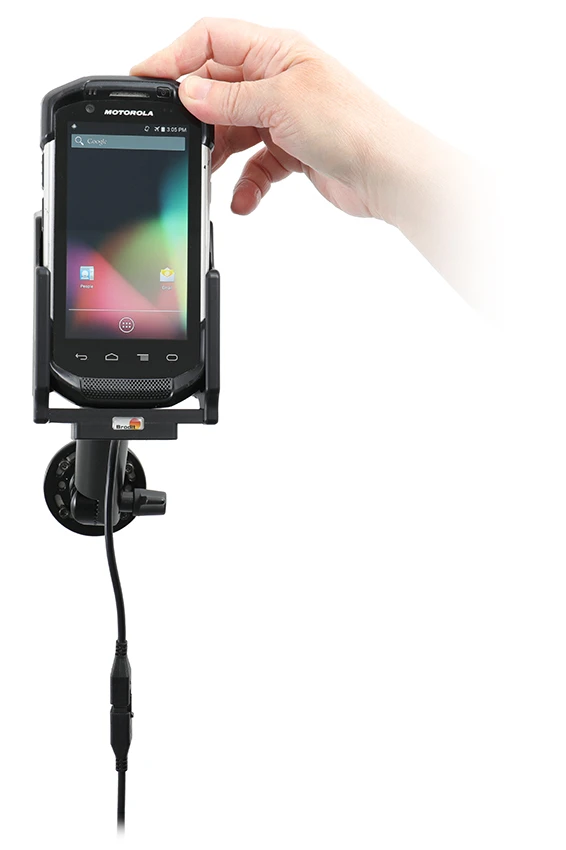

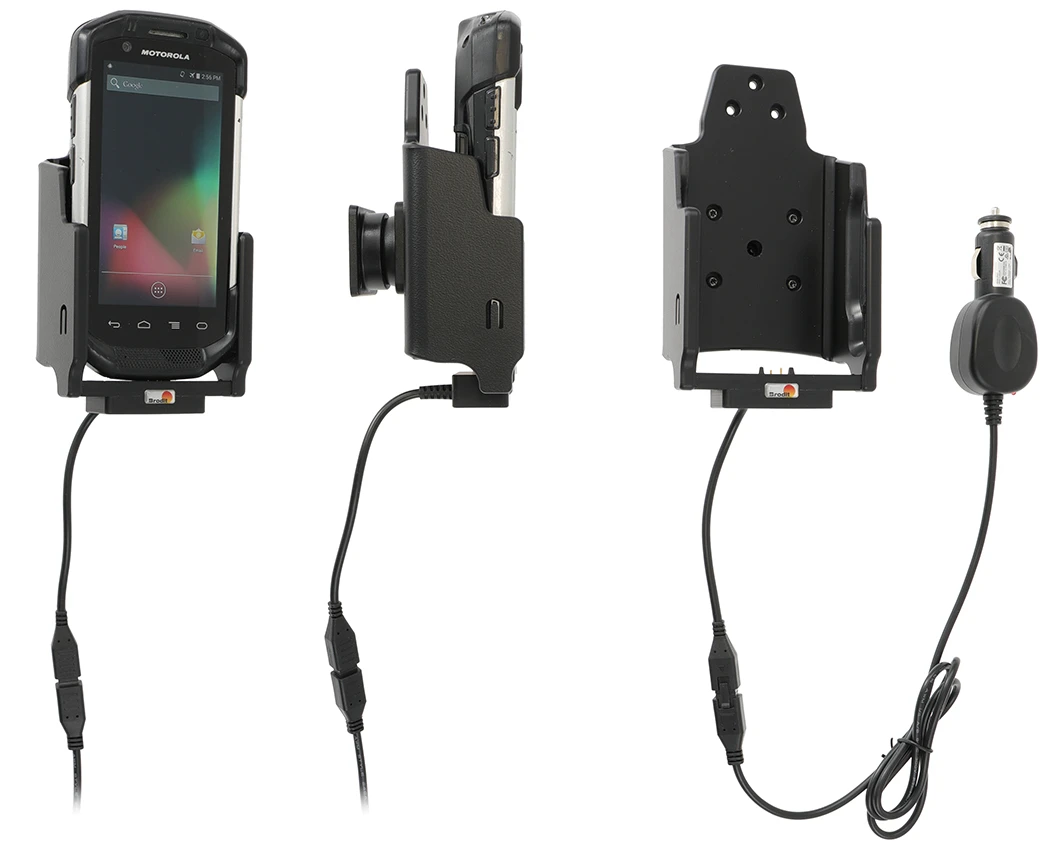

The active holder charges your battery when it is in the holder. The charging device connects to the unit automatically when you put the unit in the holder. The holder is attached onto a tilt swivel and can be adjusted in order to avoid light reflection. Connects to the vehicle's cigarette lighter socket, 12/24 Volt.

Prepared for fitting a key lock Item no. 216238

Easy-switching system:

The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

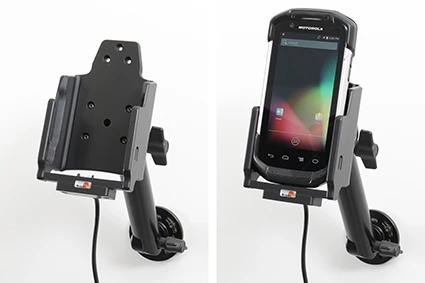

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a Pedestal Mount or an ProClip mounting platform.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

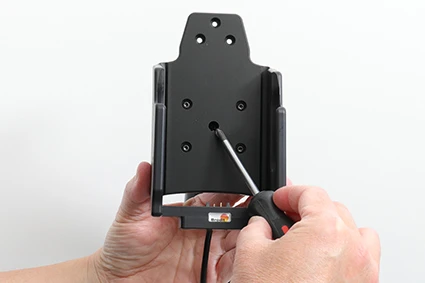

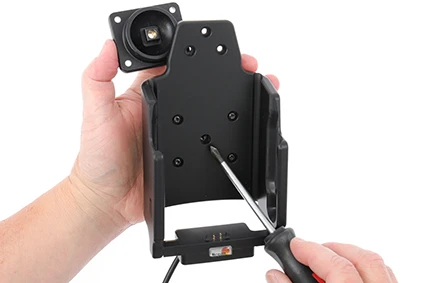

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

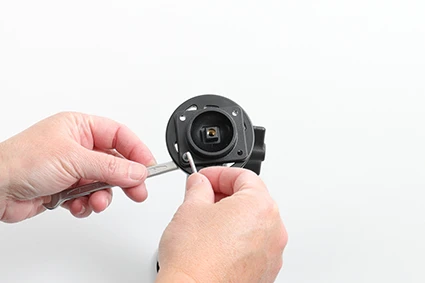

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.

3. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw so the holder is firmly in place, but still can be adjusted.

4. The holder is in place.

التوافق

Zebra : TC70
Zebra : TC72
Zebra : TC77
Zebra : TC75
