Active holder with cig-plug

رقم الصنف : 216146

With magnetic tip. With USB-cable + cig-plug adapter with 2 USB ports: QC 3.0A + 2.4A. With tilt swivel. 12/24 Volt. Ingenico Link/2500 Standard & Touch Version with Type-C charging on the side.

Ingenico Link 2500

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

With magnetic tip. With USB-cable + cig-plug adapter with 2 USB ports: QC 3.0A + 2.4A. With tilt swivel. 12/24 Volt. Ingenico Link/2500 Standard & Touch Version with Type-C charging on the side.

معلومات فنية

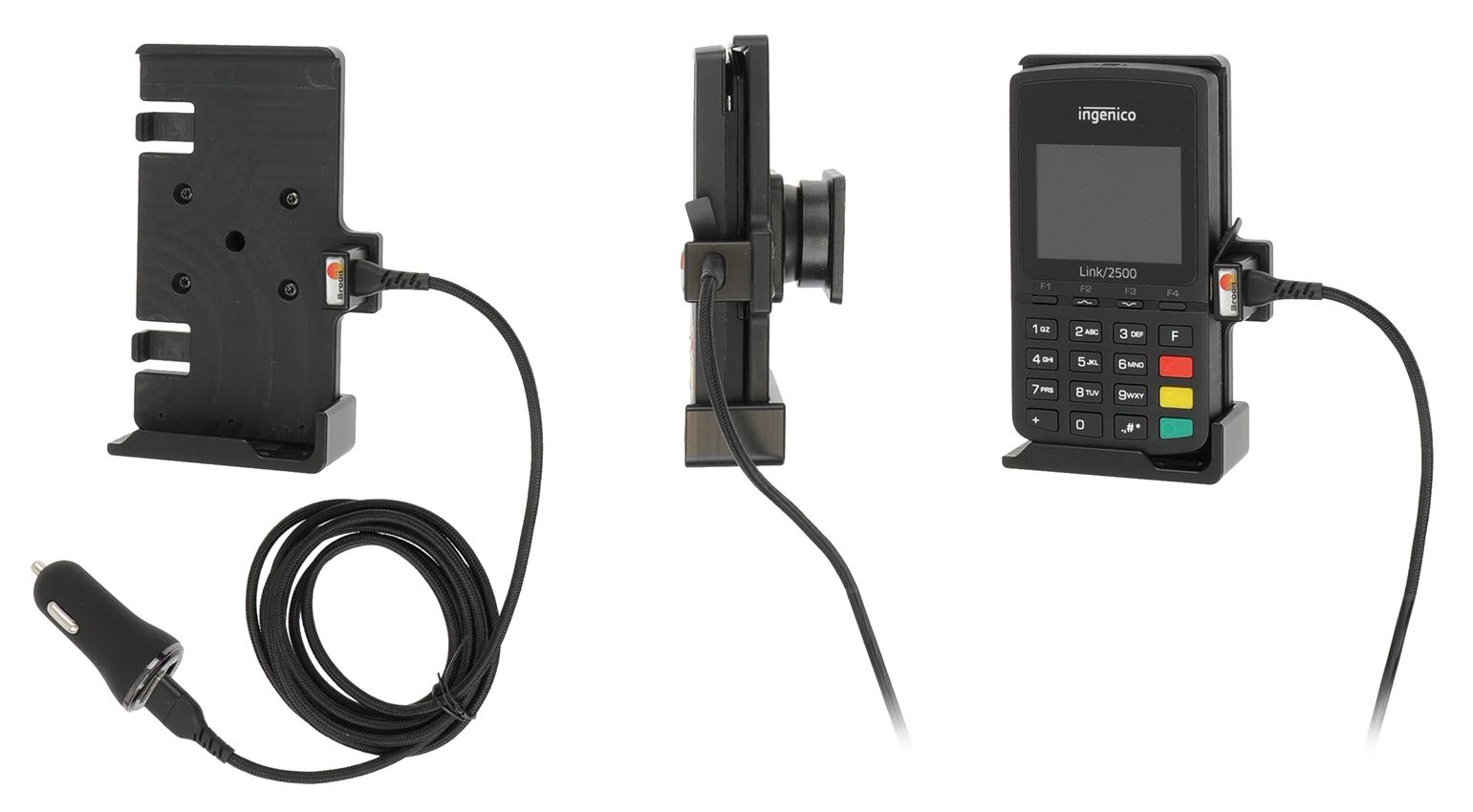

Keep your device fully charged at all times -without the daily wear and tear of the connector! Custom made holder with a perfect, firm fit. With magnetic tip and a USB-cable with cig-plug adapter, choose to connect either to the vehicle's USB outlet or the 12/24V socket. The cig-plug adapter has two USB ports: QC 3.0A + 2.4A.

Thanks to the magnetic tip it is even easier to place the device in the holder with a one handed grip, and to take it with you when leaving the vehicle. You simply remove the tip of the charging connector and press it into the device's charging port. The charging connects correctly at once each time, it minimizes wear and keeps the device's connector in good condition. The magnetic tip is a very strong and durable construction, withstands a minimum of 30 000 times of folding. It also protects your device's charging port from dust and dirt. Nylon braided cable with USB 2.0 high speed sync for data transmission. Not recommended to be used with devices with skin/case.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade ABS/Acetal plastic. Color: black. Made in Sweden. Attach onto a ProClip Mounting Platform or a Pedestal Mount.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

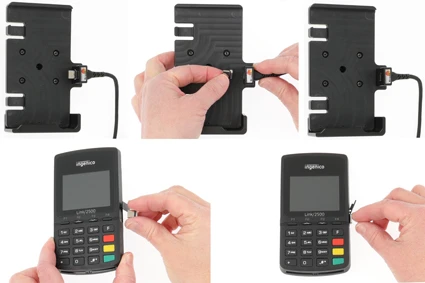

1. Fold the magnetic tip on the charging connector and remove the magnetic tip from the holder. Press the magnetic tip into place in the charging connector in the device.

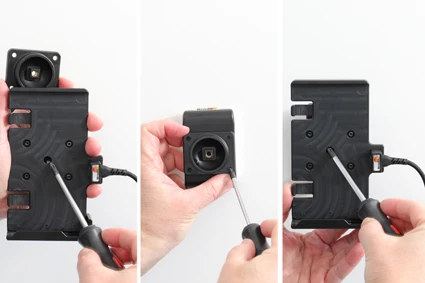

2. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw so the holder is firmly in place, but still can be adjusted.

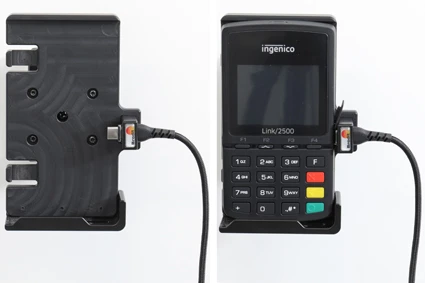

3. To place the device in the holder: Slide the device sideways into the holder so the magnetic tip connects. To remove the device from the holder: Slide the device sideways and out from the holder.

4. The holder is in place.

التوافق

Ingenico : Link 2500
