الوصف

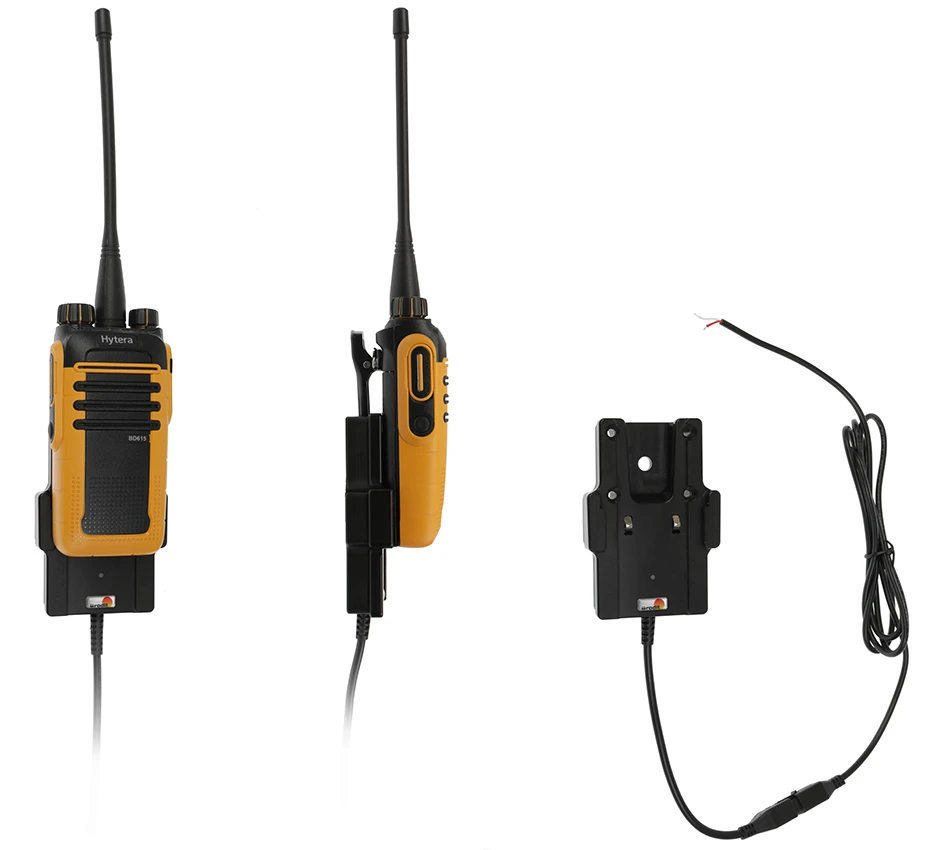

Slim design with charger integrated in the holder.

معلومات فنية

Are you using a two-way radio every day in your work? Then a Brodit active holder will make your days much easier! By keeping the device in an active holder, you will always have it within easy sight and reach while driving between jobs. The cables are to be connected inside the dashboard, this gives a discreet, neat installation without cables hanging over the interior.

The charging device is integrated in the holder itself, so there is no large charging box on the cable and LED indicator to show that charging is in progress, the indicator changes from red to green when fully charged. 12/24 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. 2 A charger. Professional installation recommended. Attach onto ProClip Mounting Platform.

التعليمات

Battery Chemistry: Li-ion or Li-Poly batteries

Input Voltage: 11-30 V

Charging Voltage: 8.4 V

Timer for Max. Charging Time: Automatic, stops at 8.4 V

Max. Charging Time: 2-3 hours depending on battery capacity

Rapid Charge: 1 A +/- 5%

Trickle Charge: 0 to 50 mA

LED Charging Indicator: LED Red to Green indicator

Temperature Control: Controlled by battery

RoHS Compliant: Yes

Input Transient Protected: Withstands +200V & -600V. A 2,5A fuse is mounted on the incoming supply.

Output Short Circuit Protected: The charger will supply a maximum current of 1 A which protects both the charger and the connected equipment. The current limit is set to standards of the producer and shall not be higher.

التوافق

• Hytera : BD505
• Hytera : BD 615
