Active holder for fixed installation

رقم الصنف : 727458

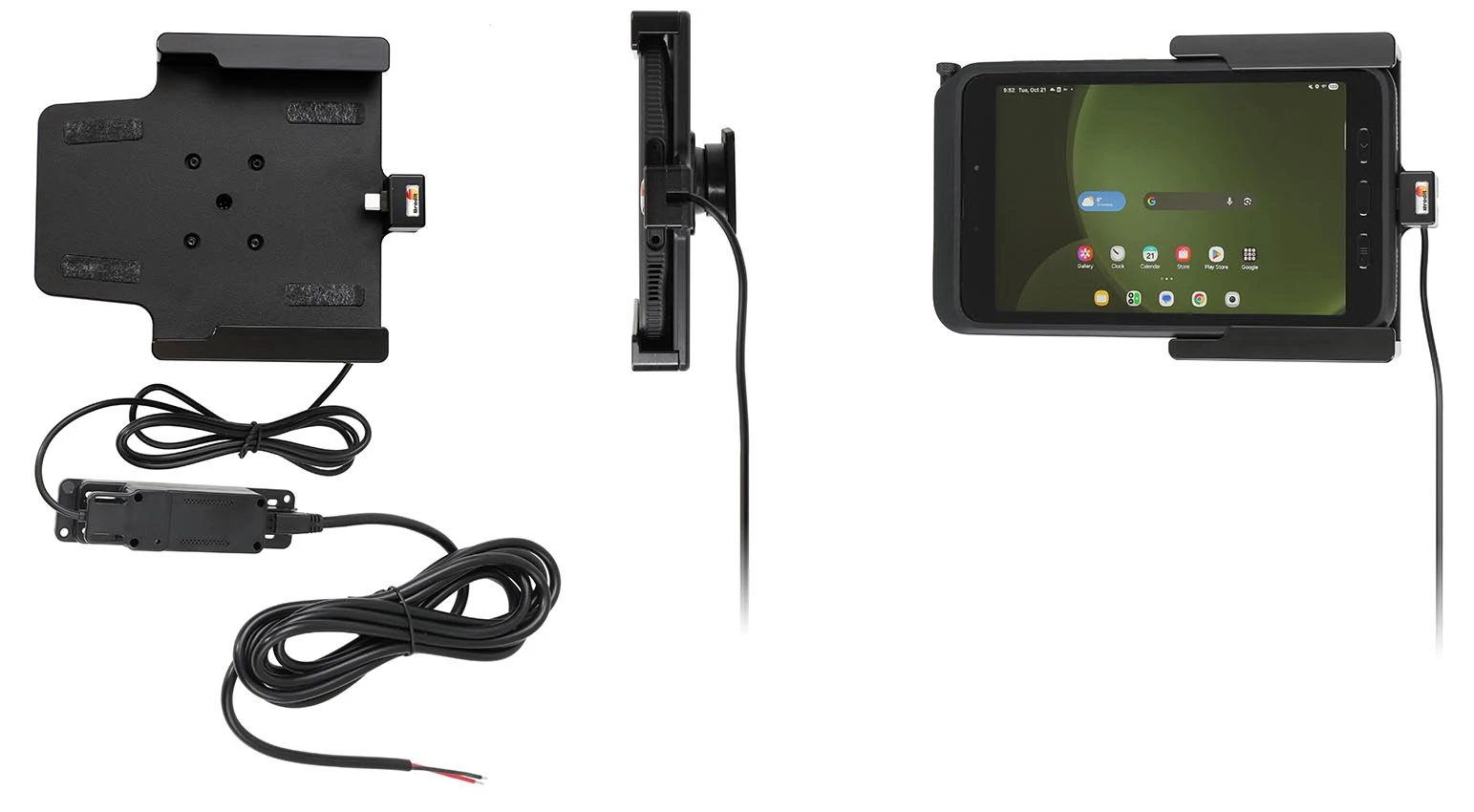

Charging box 60W. 2 USB ports USB-A and USB-C, 30W/port. With tilt swivel. Fits the device with original skin.

Samsung Galaxy Tab Active 5 SM-X300/SM-X306B

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

Charging box 60W. 2 USB ports USB-A and USB-C, 30W/port. With tilt swivel. Fits the device with original skin.

معلومات فنية

Charging holder with hard-wired power supply for a discreet, neat installation without cables hanging over the interior! Keeps your battery fully charged at all times and your device in an upright position for better reception. Provides for safer driving when viewing, accessing and operating your device in your vehicle. Custom made design with a perfect, firm fit.

Charging via USB-C connector enables for quick charging. The charging box has two USB ports: USB-A (free for power supply of additional device) and USB-C (connected to the holder). 12/24Volt.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. For easy and optimal installation, attach the holder onto a custom ProClip Vehicle Mount, a Pedestal Mount or attach it directly to any surface.

Choose installation placement with care, devices must not be placed in positions where they may block the view or important controls. The cradle should only be attached onto a suitable place. Installations always take place at the customer's own discretion and responsibility.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

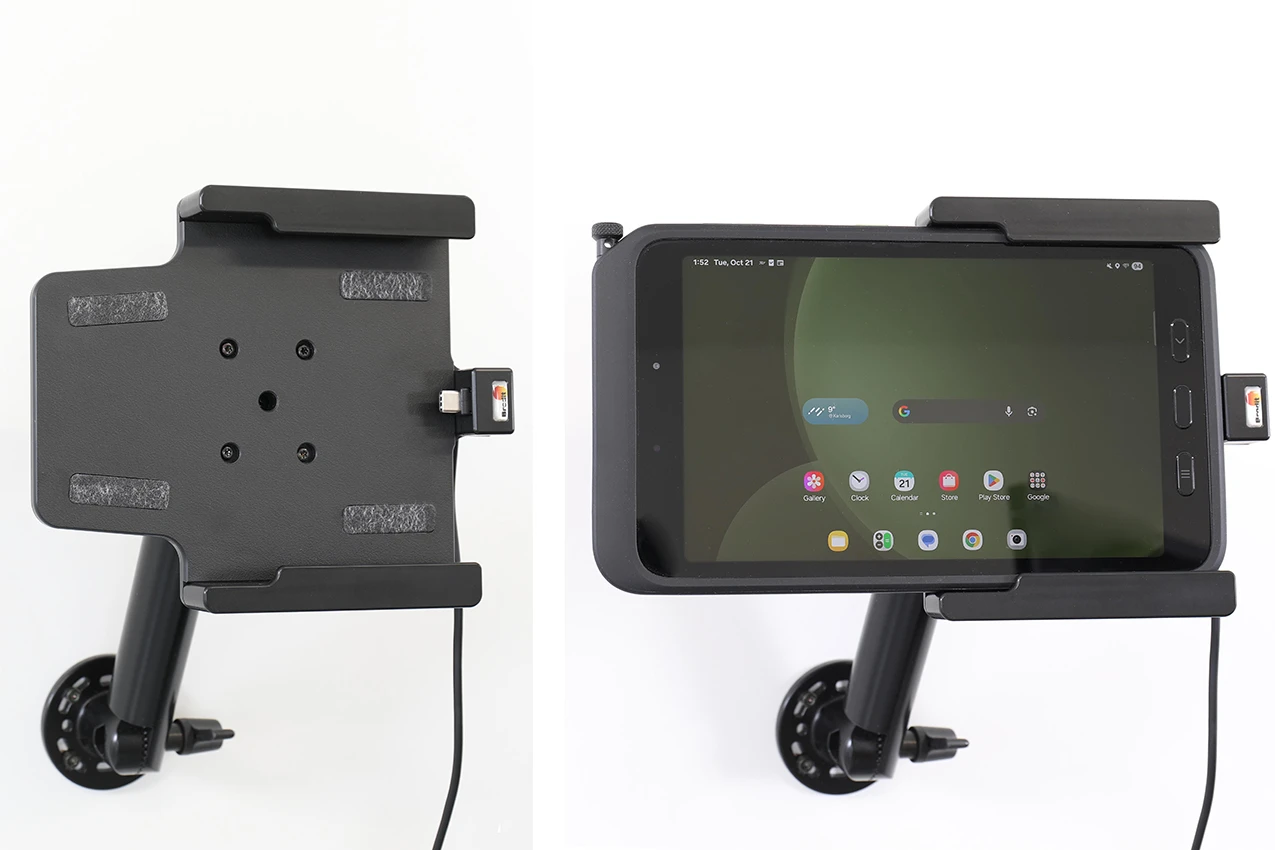

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.

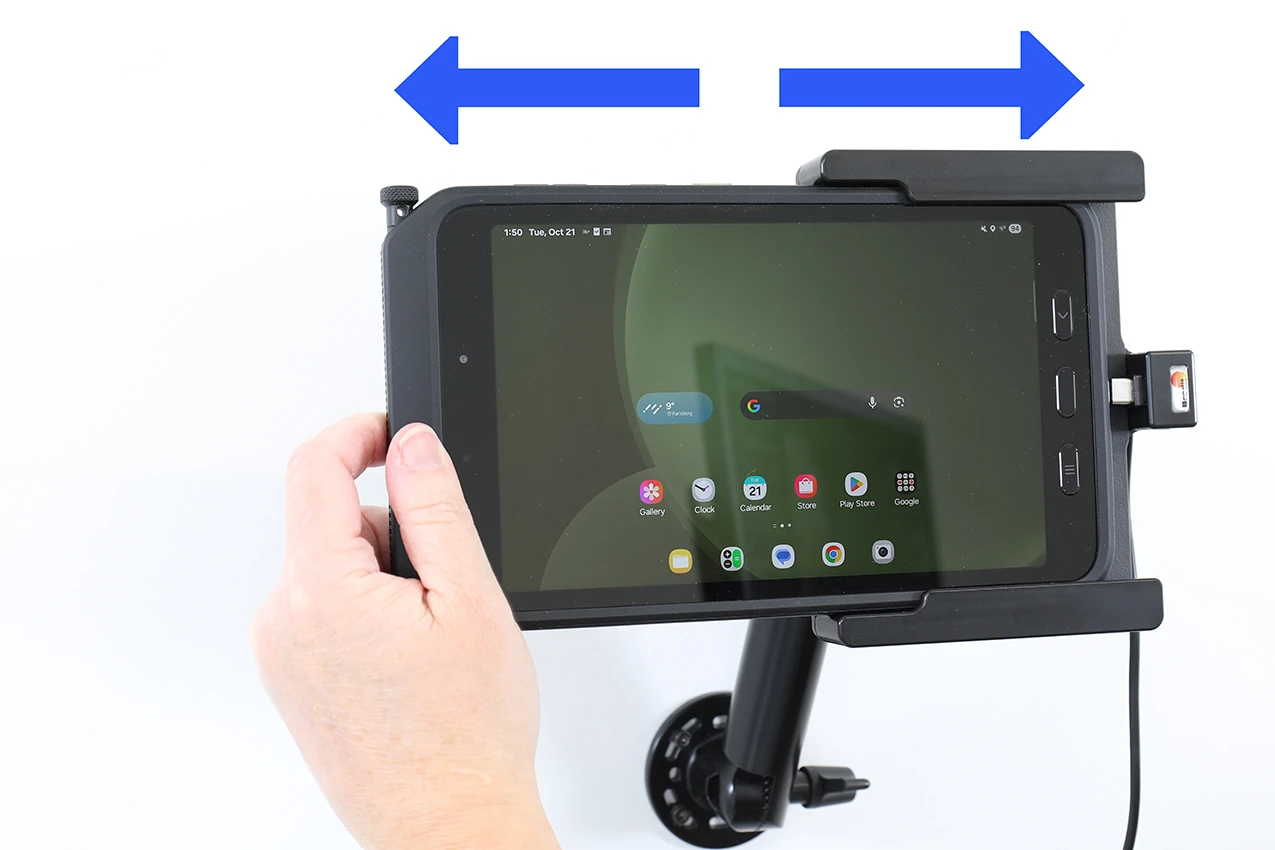

3. To place the device in the holder: Slide the device sideways into the holder until you hear / feel it snaps into place. To remove the device from the holder: Slide the device sideways and out.

4. The holder is in place.

التوافق

Samsung : Galaxy Tab Active 5 SM-X300/SM-X306B
