الوصف

With USB-C cable. 2 USB ports: Type-A and Type-C: QC 3.0A + 2.4A. With tilt swivel. 2.7A charging. 12/24V. For device in Protective Rubber Boot (PRS3800X01507) and Pistol Grip (ARS38PSTNNN11).

معلومات فنية

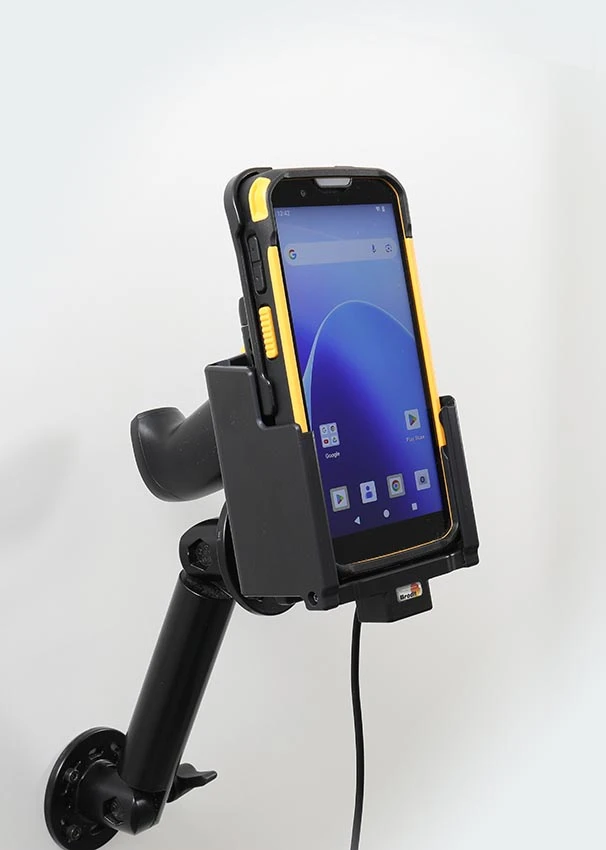

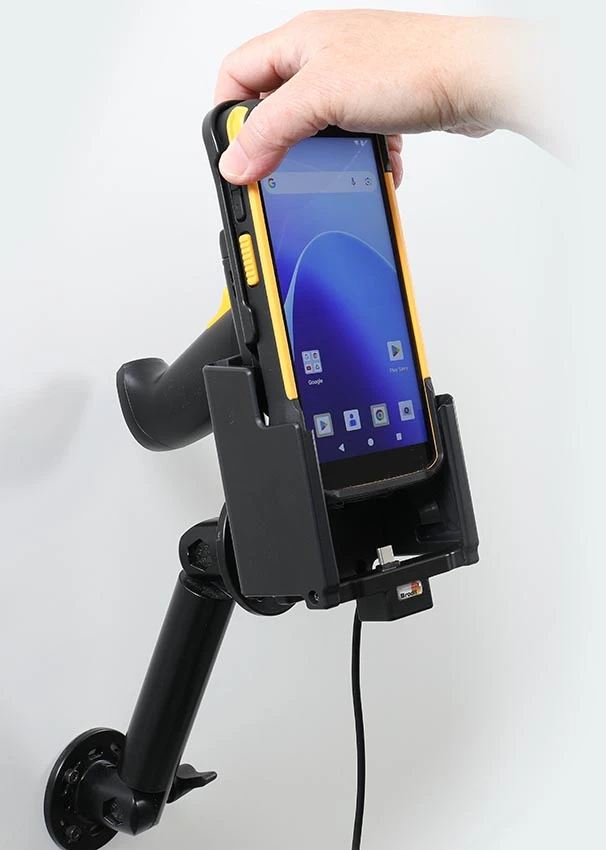

Charging holder with hard-wired power supply for a discreet, neat installation without cables hanging over the interior! Keeps your battery fully charged at all times and your device in an upright position for better reception. Provides for safer driving when viewing, accessing and operating your device in your vehicle. Custom made design with a perfect, firm fit for device in protective rubber boot PRS3800X01507 and pistol grip ARS38PSTNNN11. Easy dock/undock your device with one hand.

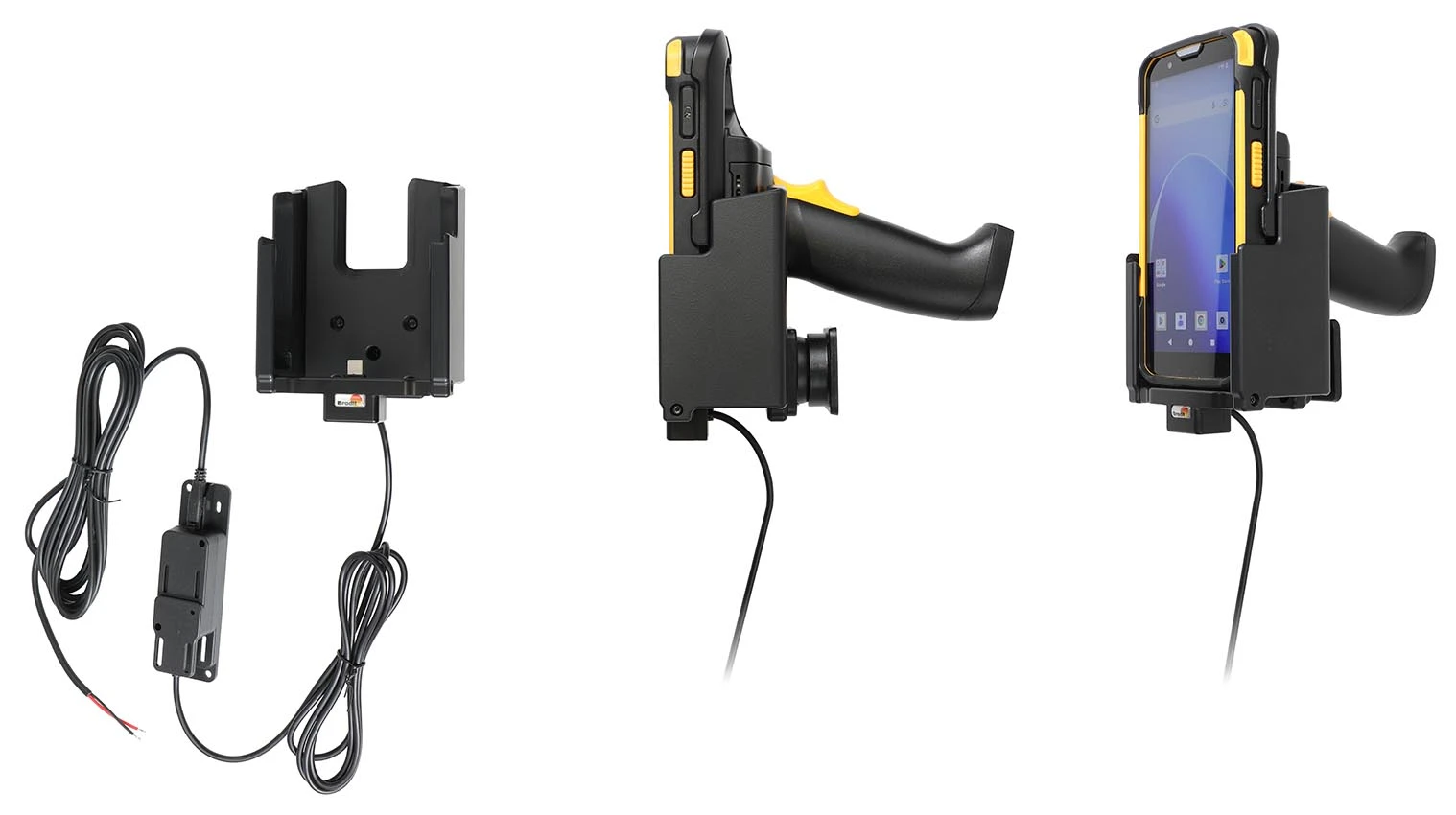

Charging via USB-C connector enables for quick charging. The charging box has two USB ports: Type-A (free for power supply of additional device) and Type-C (connected to the holder). 12/24Volt.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. For easy and optimal installation, attach the holder onto a custom ProClip Vehicle Mount, a Pedestal Mount or attach it directly to any surface.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

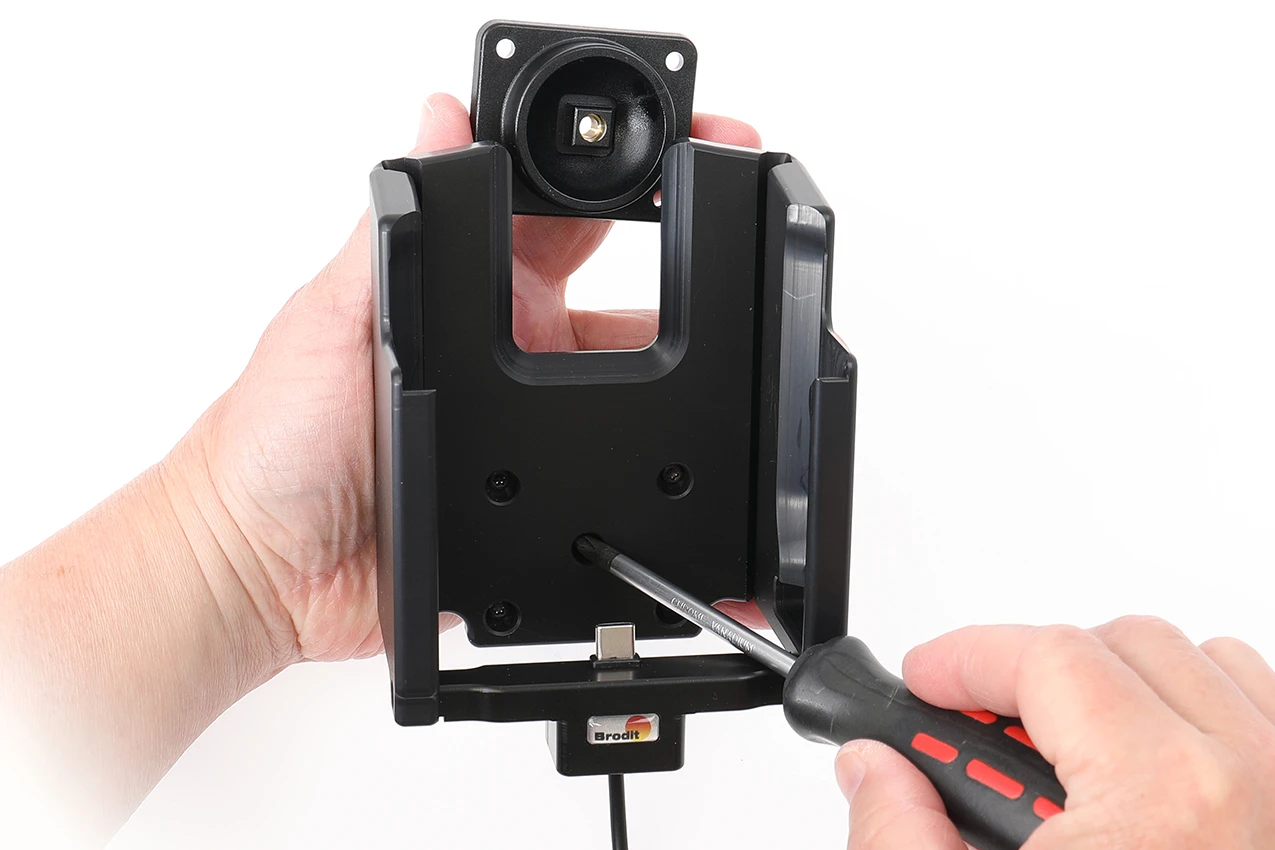

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

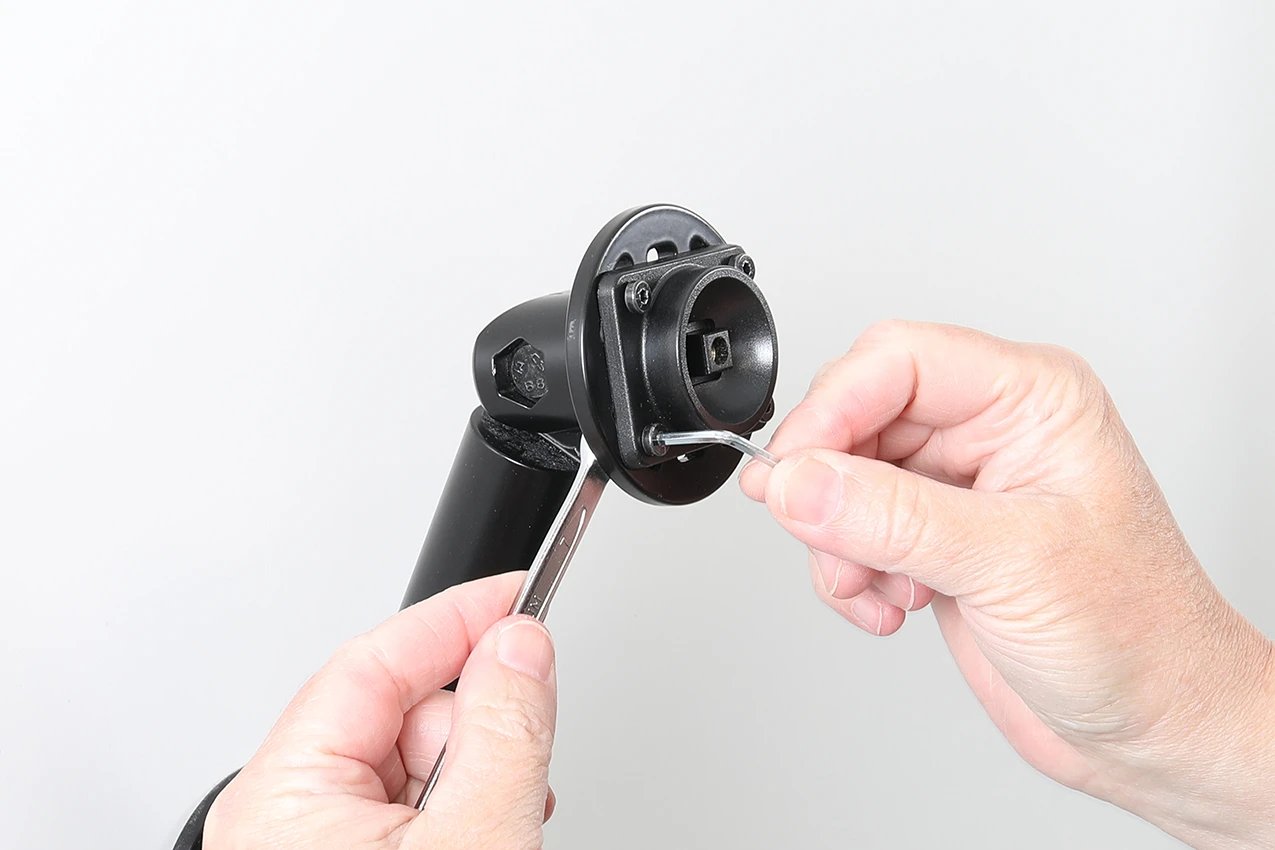

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.

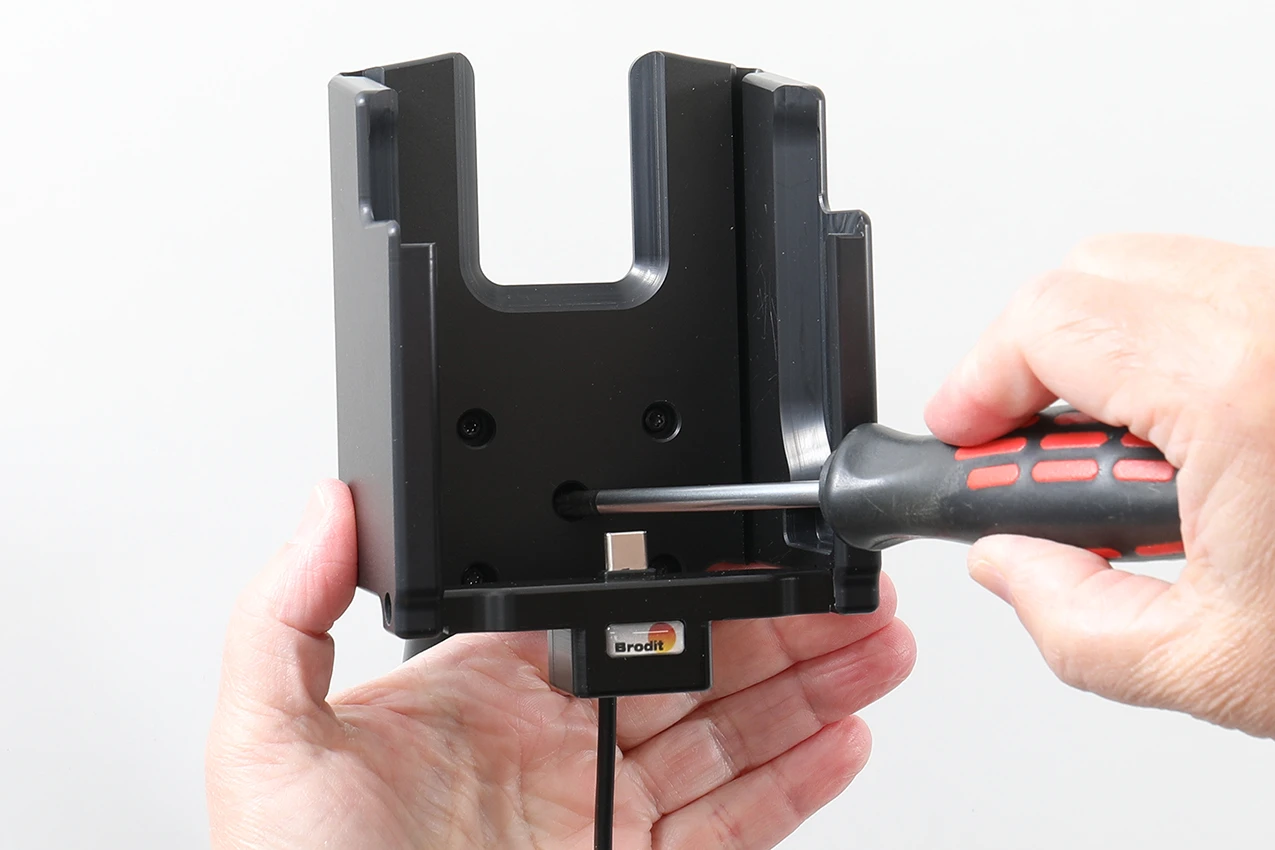

3. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw so the holder is firmly in place, but still can be adjusted.

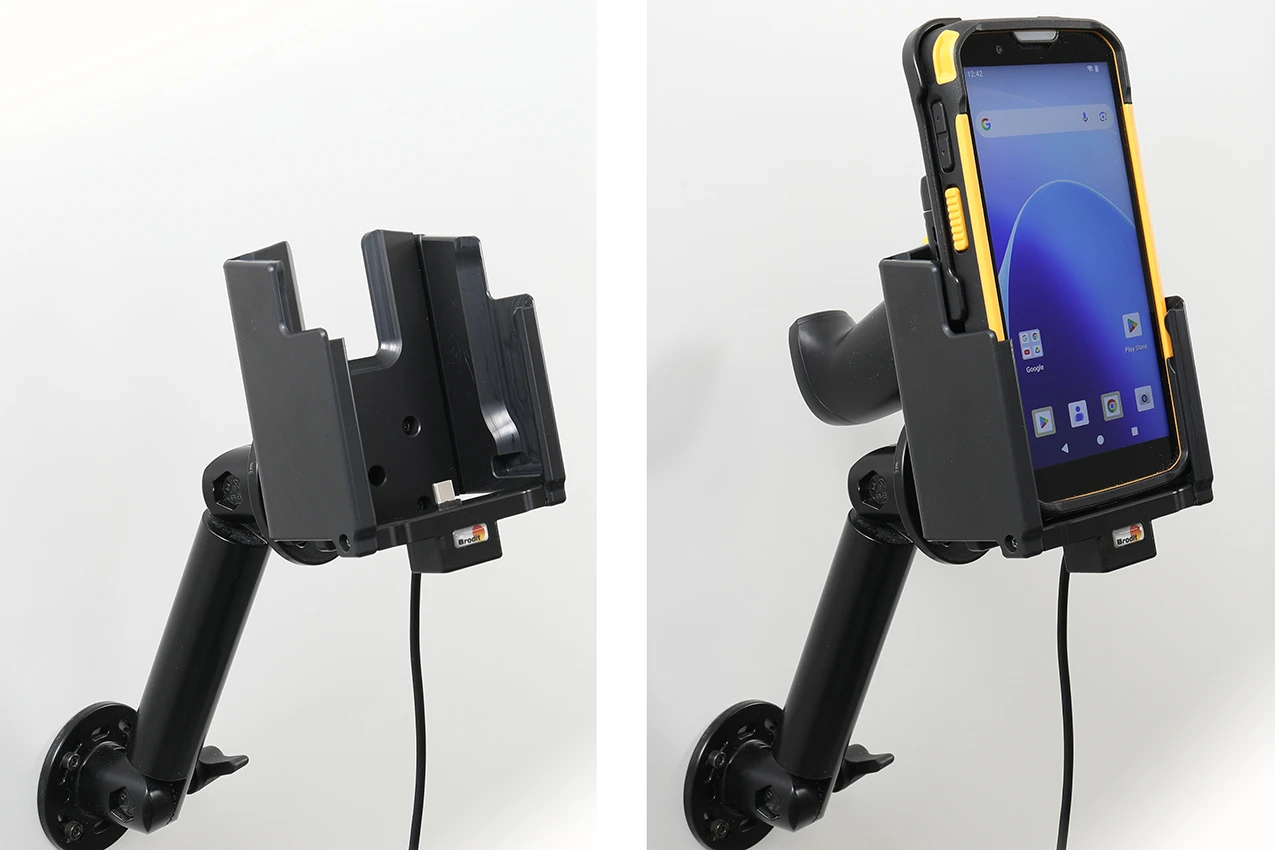

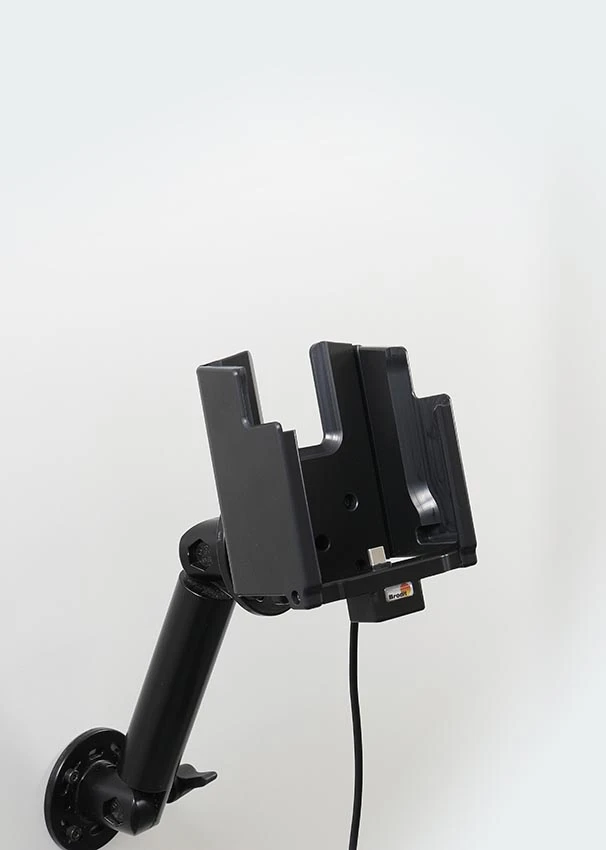

4. The holder is in place.

التوافق

• CipherLab : RS38
