Active holder for fixed installation
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
This holder for fixed installation is the perfect choice when you want to have your device installed in place as well as charging for it without any cables hanging over the interior. Safe, efficient and convenient! You have full access to the camera, buttons and ports while docked. Easy one-hand insertion and removal.

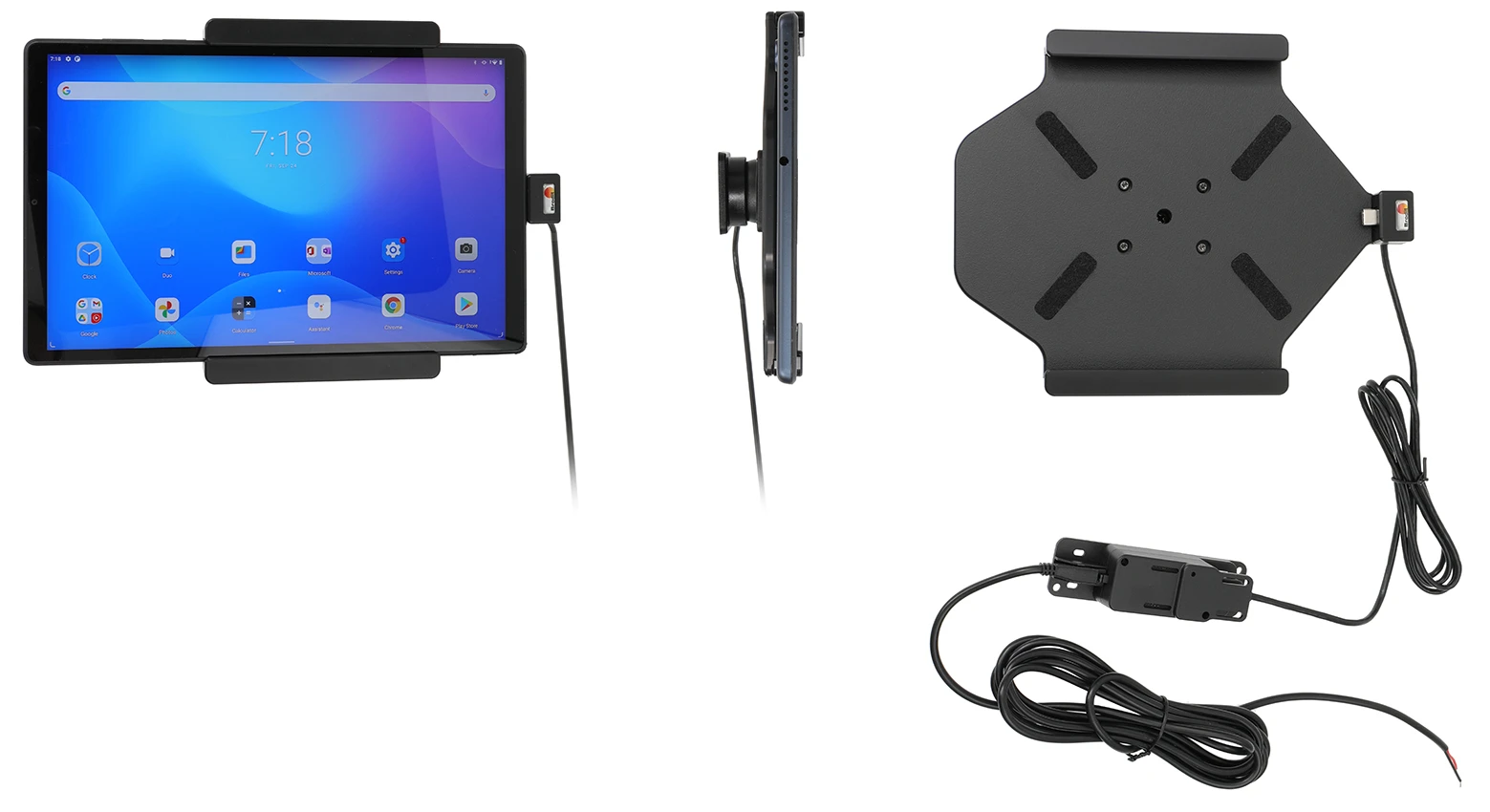

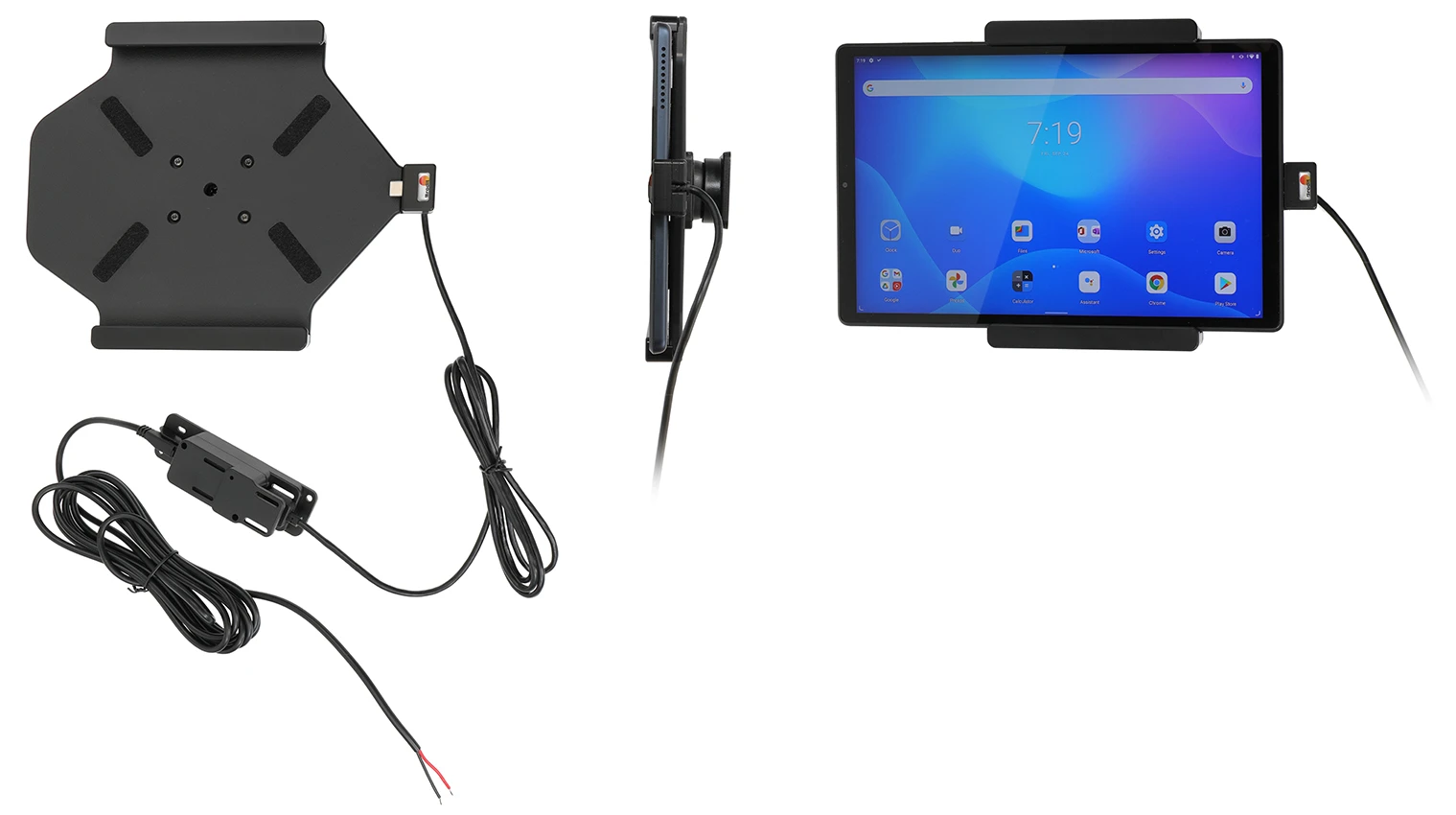

The holder is customized with a perfect fit for bare devices (not for case). With tilt swivel, you can easily adjust the angle for better viewing. Tilts 17° and swivels 360°. Attach the holder onto any flat surface, mount or Pedestal Mount in any vehicle, table top or other location. Mounting plate 42x50 mm with 4 mm AMPS-holes. The charging box has two USB-A ports: QC 3.0A + 2.4A. Connect the power cable with a 2A fuse inside the dashboard. Professional installation recommended. Made of high grade ABS/Acetal plastic. Color: Black. Made in Sweden.
Choose installation placement with care, devices must not be placed in positions where they may block the view or important controls. The cradle should only be attached onto a suitable place. Installations always take place at the customer's own discretion and responsibility.
دليل تركيب المنتج
رقم الخطوة 1

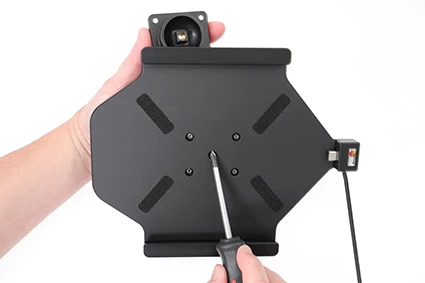

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 2

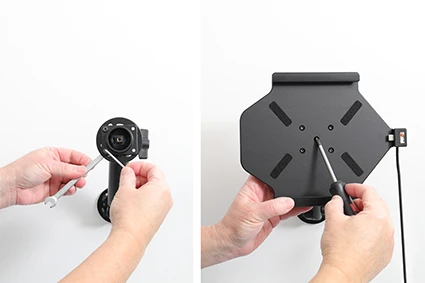

Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.
رقم الخطوة 3

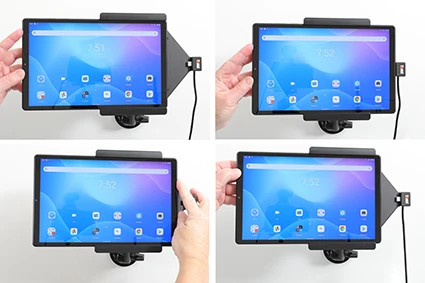

To place the device in the holder: Slide the device sideways into the holder until you hear / feel it snaps into place. To remove the device from the holder: Slide the device sideways and out.
رقم الخطوة 4
The holder is in place.
