تفاصيل المنتج

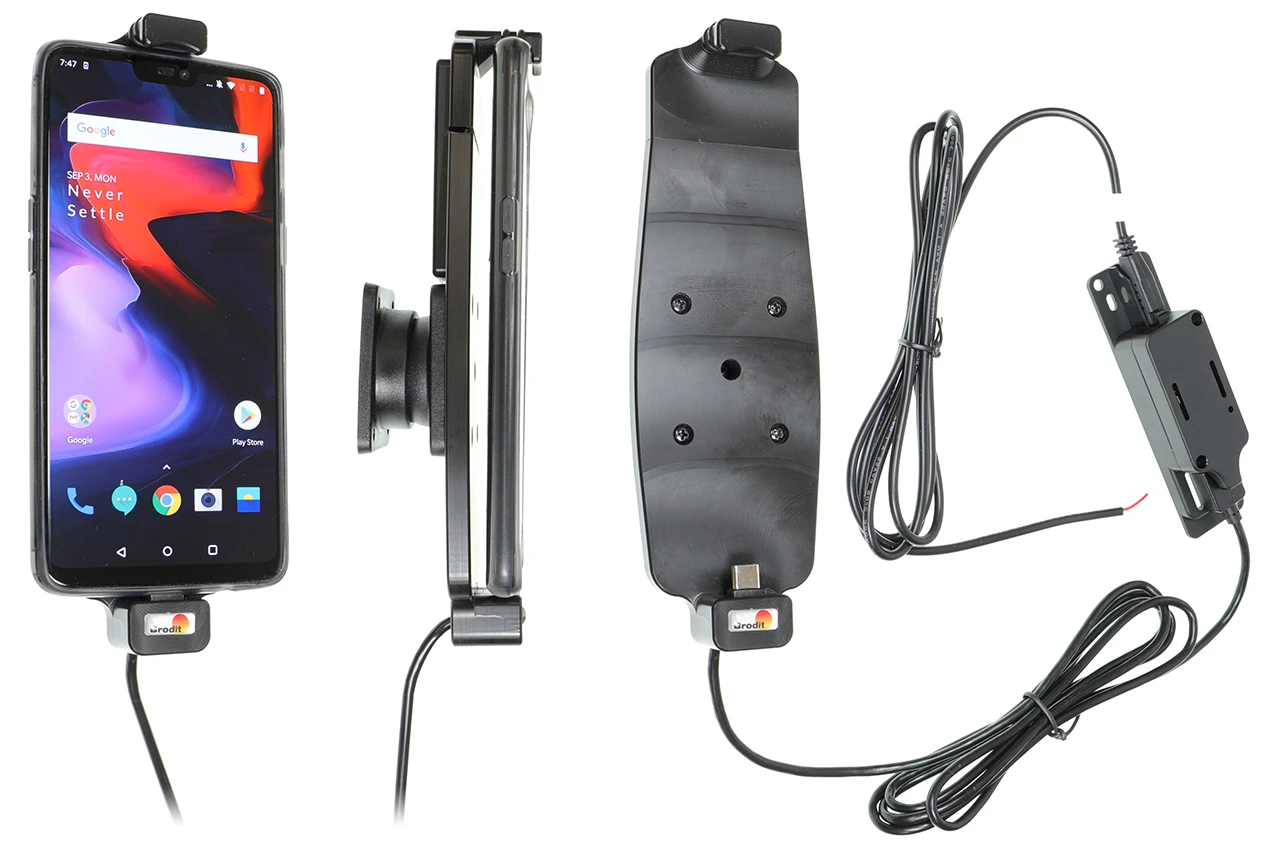

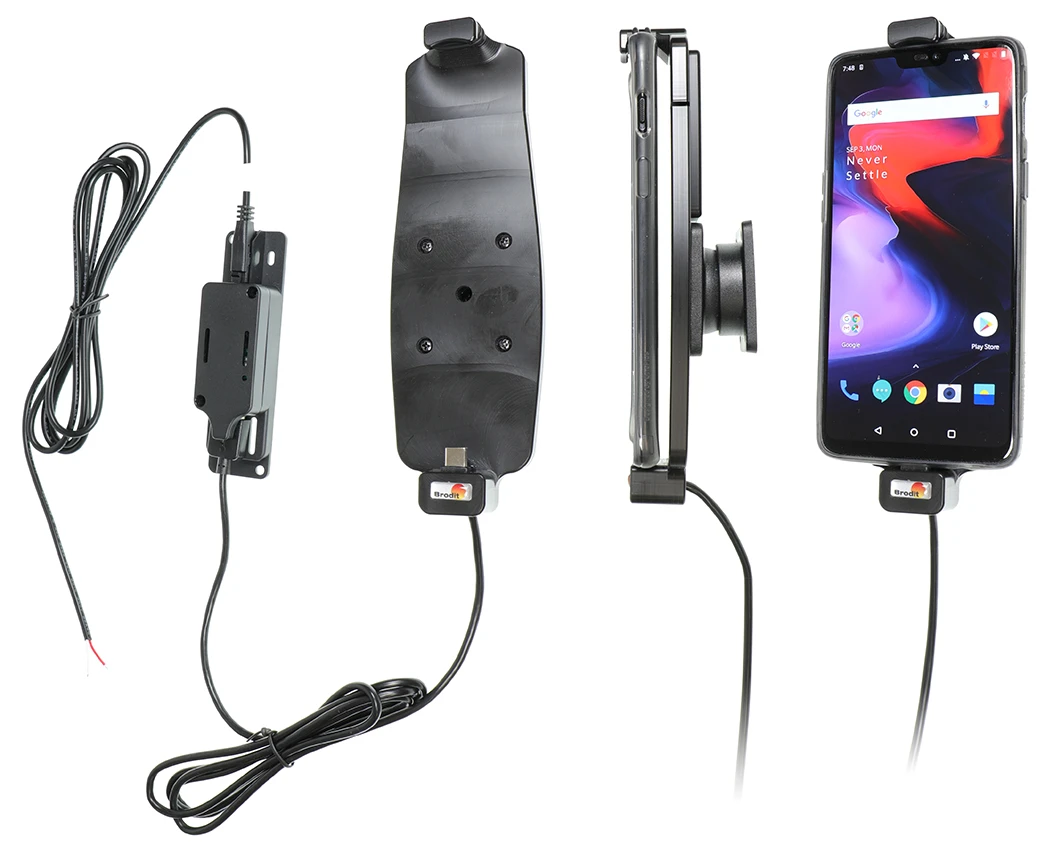

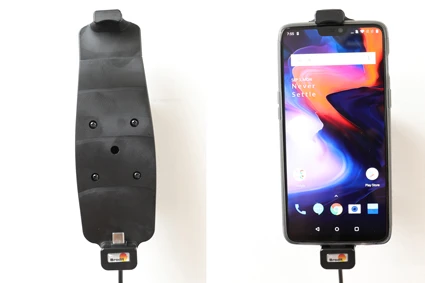

Active holder for fixed installation
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
Use an active holder for your device on the road and you will always have a freshly charged battery! In addition, you will always have your device within easy sight and reach. Safe, comfortable and convenient! The active holder is to be connected inside the dashboard. It provides an elegant installation without any cables hanging over the interior. The holder has a neat and discreet design which blends well with the vehicle's interior. Your device is held securely in place in an upright position for maximum cellular reception. Fits devices with skin. The top part of the holder is adjustable and adapts to the height of your phone.
When you place the device in the holder, it automatically connects to the charging unit. 12 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. Professional installation recommended.
The holder has a perfect fit. It is easy to put the device into the holder, and just as easy to take it with you when leaving the vehicle. The holder is equipped with a tilt swivel so you can adjust the angle of your device in order to avoid light reflection on the screen. You can tilt the holder 17° in each direction. Attach onto ProClip Mounting Platform.
دليل تركيب المنتج
رقم الخطوة 1

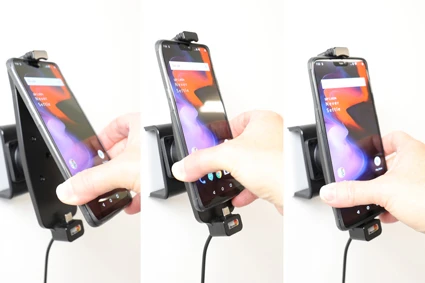

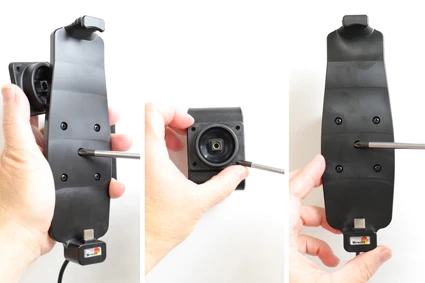

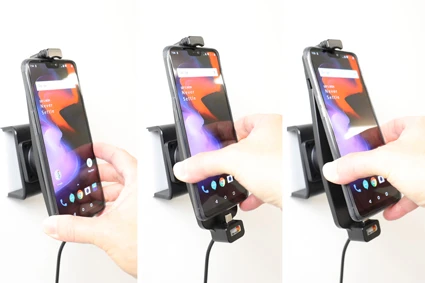

Connect the White wire to a Negative Ground connection of the vehicle or the vehicle chassis. 2. Connect the Red wire to a 12/24 Volt power supply in the vehicle that is controlled by the ignition switch of the vehicle. Attaching the holder: 1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted. 2. To place the device in the holder: Place the upper part of the device in the holder, then press the device forwards and upwards so it snaps into place in the holder. 3. To remove the device from the holder: Press upwards on the lower part of the device, in the same time pull the the device out and down from the holder. 4. The holder is in place.
