Active holder for fixed installation
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

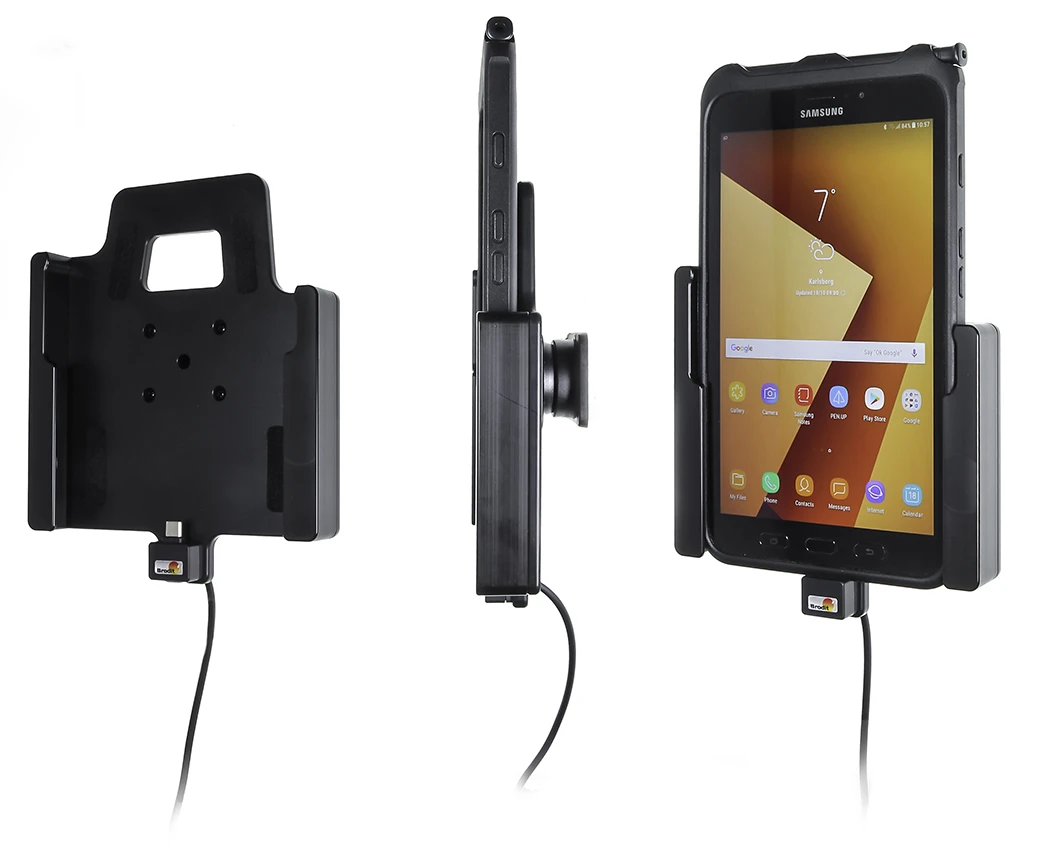

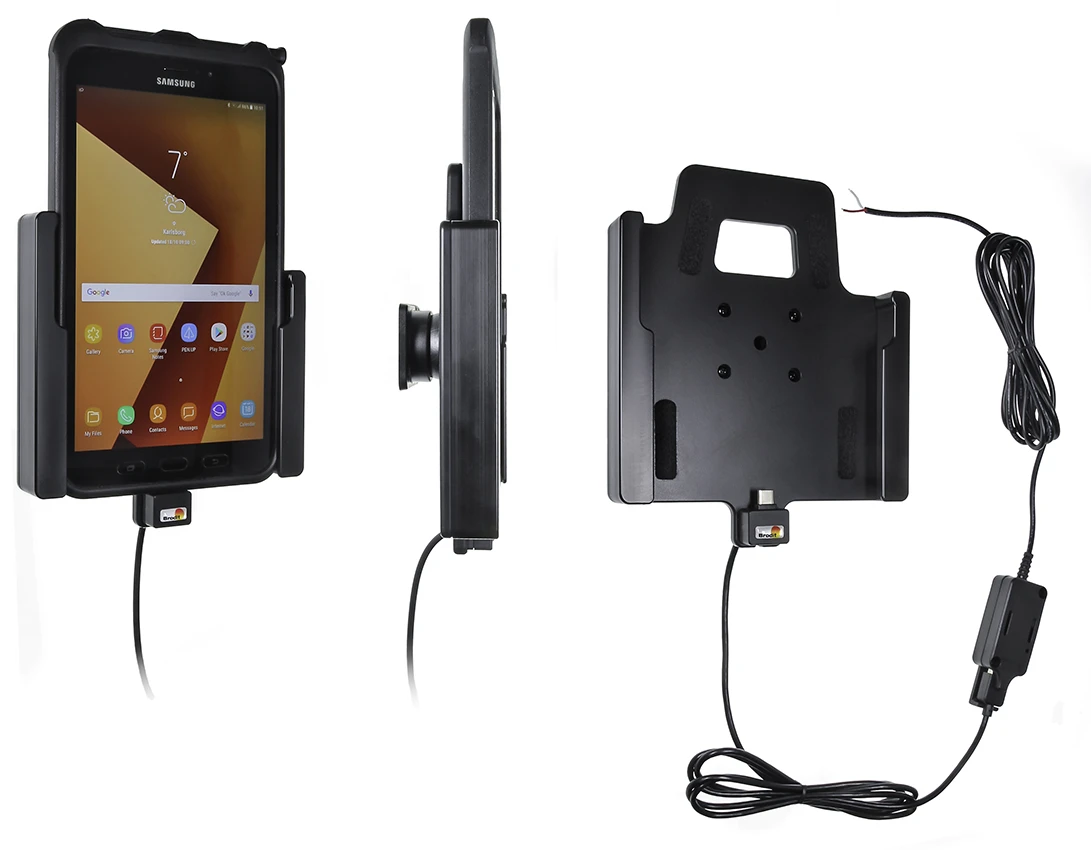

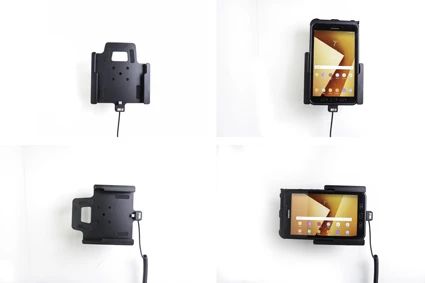

This holder is equipped with a cable for fixed installation for charging of your device. It provides a discreet and neat installation without any visible cables. 12/24 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. 2 A charger. Professional installation recommended. The holder is mounted onto a tilt swivel so you can adjust the angle and switch between portrait and landscape mode.
Tablets should not be installed onto a car’s dashboard if they block the view or block key controls. The ProClip is designed for installation of smaller devices (phones), not for large devices (tablets). If you want to place a tablet onto the car’s dashboard, each combination of tablet-car must be examined in detail by you in order to determine if such an installation is possible in the specific case. Consideration should be given to the position and how firmly the ProClip is in place, as well as the size of the tablet you wish to use. Brodit will not give any recommendations for such installations.
An installation of a tablet onto a vehicle’s dashboard is always done on the customer’s own responsibility. Brodit recommends to use tablets on the car’s headrest, installed onto a Brodit headrest mount.
This product supports Qualcomm QC 2.0 quick charge (provided the device supports Qualcomm QC 2.0 quick charge).
دليل تركيب المنتج
رقم الخطوة 1

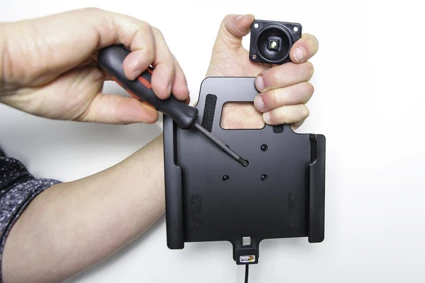

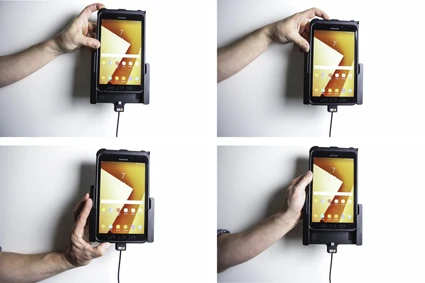

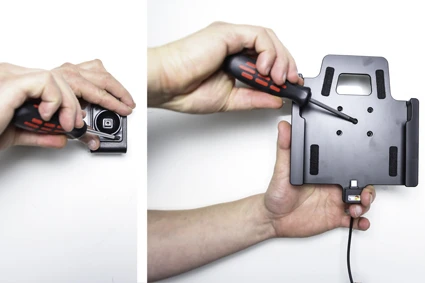

Connect the White wire to a Negative Ground connection of the vehicle or the vehicle chassis. 2. Connect the Red wire to a 12/24 Volt power supply in the vehicle that is controlled by the ignition switch of the vehicle. How to mount the holder: 1. Loosen the screw in the center of the holder. 2. Place the attaching plate onto desired position and screw it into place with the enclosed screws. Place the holder over the attaching plate. Tighten the screw until the holder is firmly in place, but still can be adjusted. 3. To place device in holder: Place the lower part into the holder where the opening between the sidewalls is widest. Flip the upper part forward so the device goes flat into the holder. Slide the device straight downward into the holder. To remove device from holder: Press the device straight upward so the lower part reaches the widest part of the opening between the sidewalls. Flip the upper part of the device away from the holder and lift the device out from the holder. 4. The holder is in place.
