Active holder for fixed installation
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

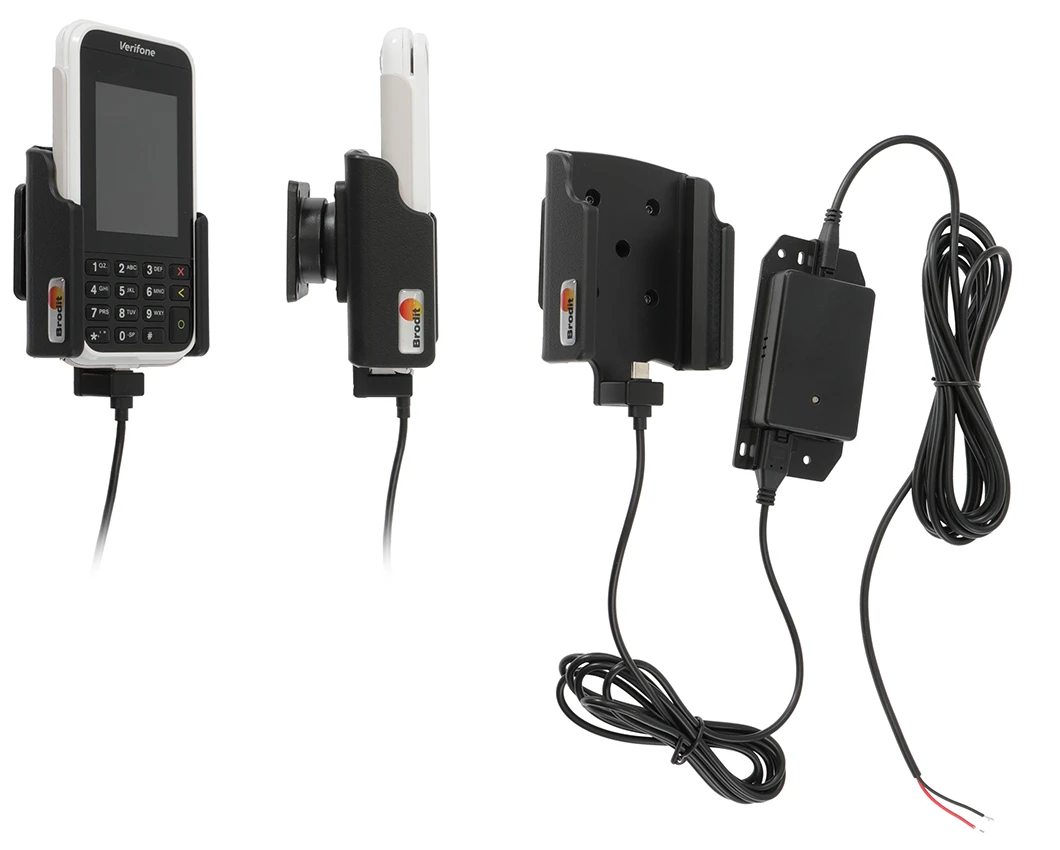

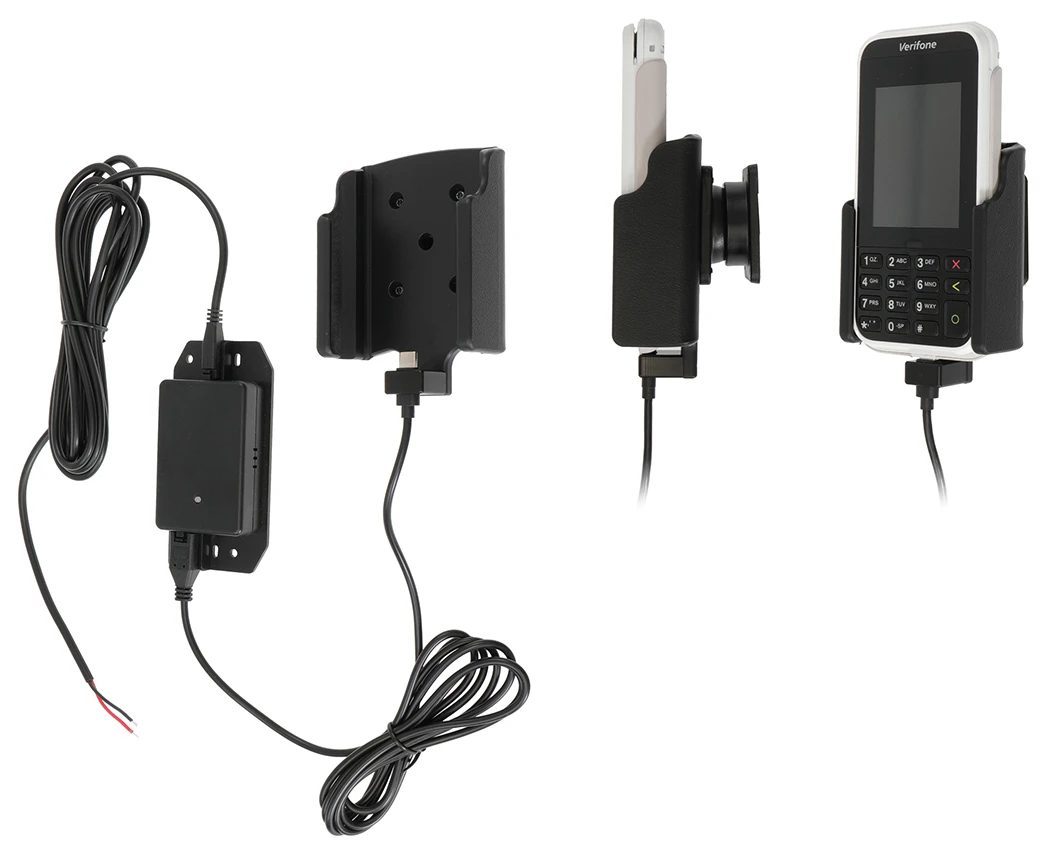

An active holder which is to be connected inside the dashboard, this gives a discreet, neat installation without cables hanging over the interior! 12/24 Volt. Safe and convenient, provides for a better work environment. Custom made with a perfect, firm fit. It is easy to slide the device into place in the holder so it connects to the charging, and to take it out of the holder when leaving the car with a one-hand grip.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS plastic. Color: black. Made in Sweden. Attach onto a ProClip Mounting Platform or a Pedestal Mount. The product is E-approved. Connect the power cable with a 2 A fuse. 2 A charger. Professional installation recommended.
دليل تركيب المنتج
رقم الخطوة 1

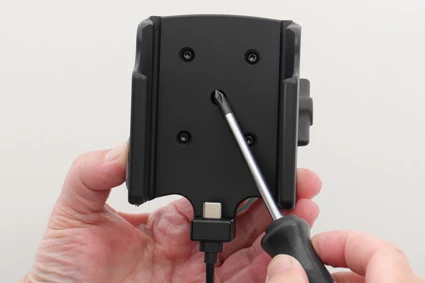

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 2

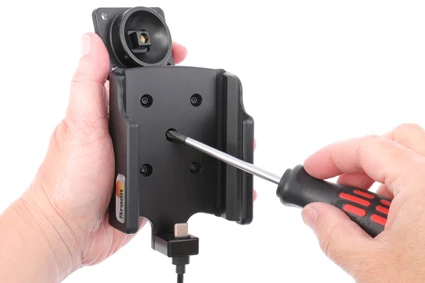

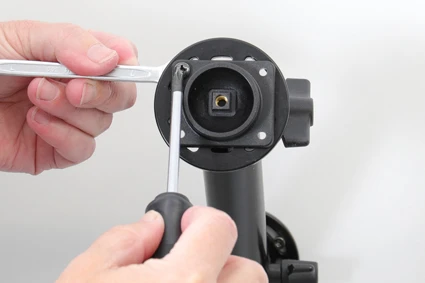

Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 3
To place the device in the holder: Place the bottom part of the device into the holder. Press the top of the device forward into place in the holder. To remove the device from the holder: Press the upper part of the holder forward/upward. Pull/flip the upper part of the device our of the holder. Lift the device out from the holder.
رقم الخطوة 4

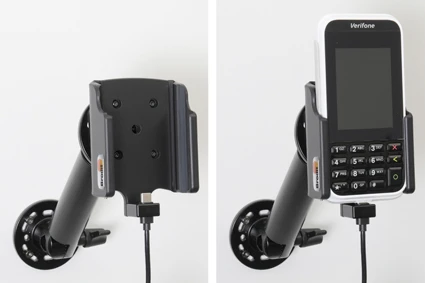

The holder is in place.
