Active holder for fixed installation
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
Extra robust holder, designed to withstand rough working conditions in everyday professional use. Customized holder with a very secure hold and unimpaired charging thanks to the 3-point hold feature. Soft connection to the charging pins which are hidden for protection from frequent wear and breakage. Easy insert/removal of the device in the holder. Discreet design.

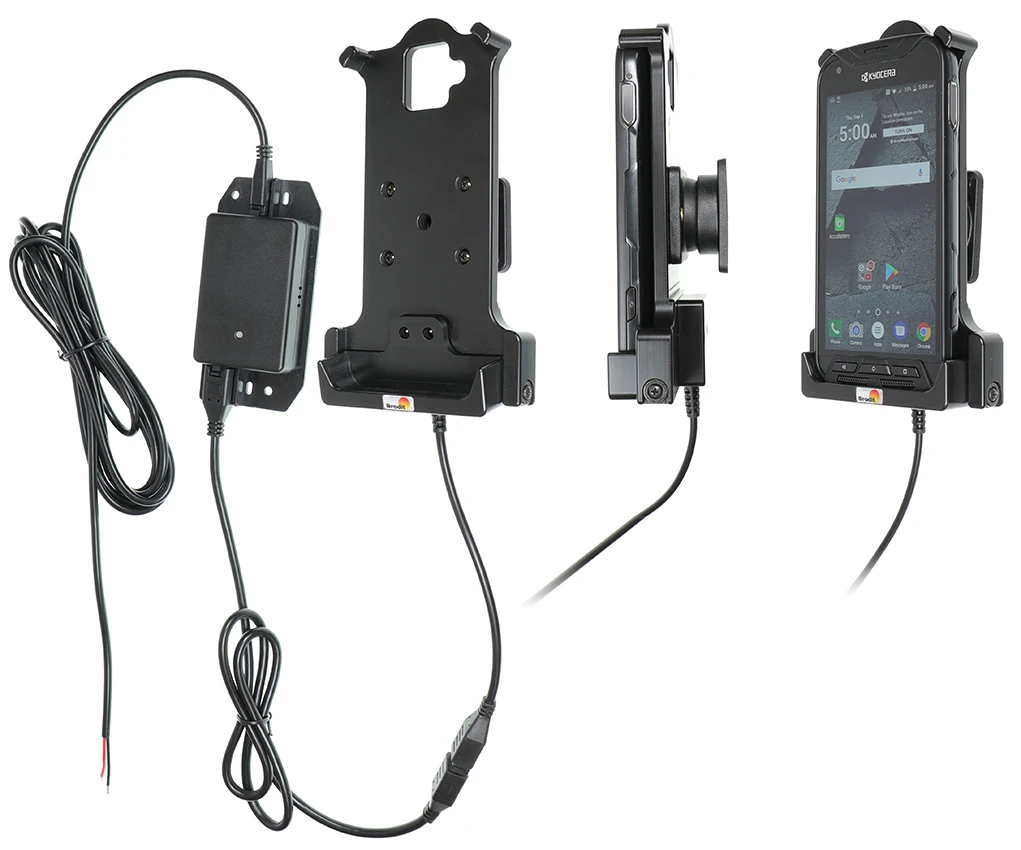

This is an active holder for fixed installation. The holder is to be connected inside the dashboard, providing an elegant installation without any cables hanging over the interior. With quick connector on the cable for easy upgrade of the holder: if you need to replace the holder simply disconnect the holder from the installed charging cable and connect a new holder without dismantling of the dashboard. Connect the power cable with a 2A fuse. Professional installation recommended
The holder is equipped with a tilt swivel so you can easily adjust the angle of your device for better viewing. Tilts 17° and swivels 360°. Made of high grade ABS/Acetal plastic. Mounting plate 42x50 mm with AMPS-holes. Color: black. Made in Sweden. Attach onto a Pedestal Mount.
دليل تركيب المنتج
رقم الخطوة 1

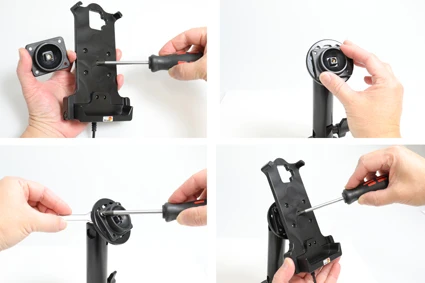

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.
رقم الخطوة 2

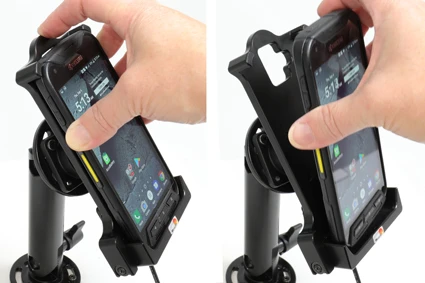

To place the device in the holder: Place the lower part of the device in the lower part of the holder. Press/flip forward on the upper part of the device so it is properly in place in the holder.
رقم الخطوة 3

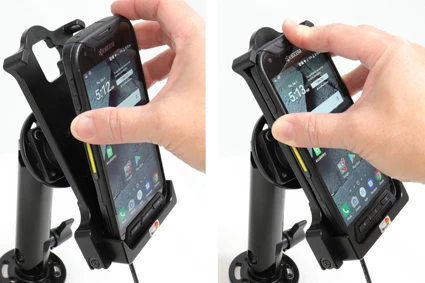

To remove the device from the holder: Take support on the upper part of the holder, in the same time pull/flip the upper part of the device away from from the upper part of the holder. Lift the device straight upward out from the holder.
رقم الخطوة 4

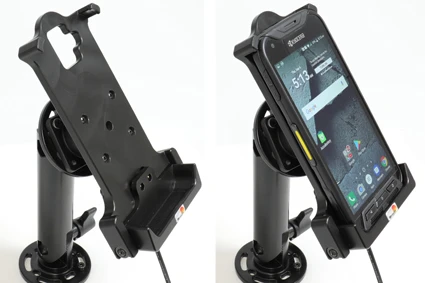

The holder is in place.
