Active holder for fixed installation
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

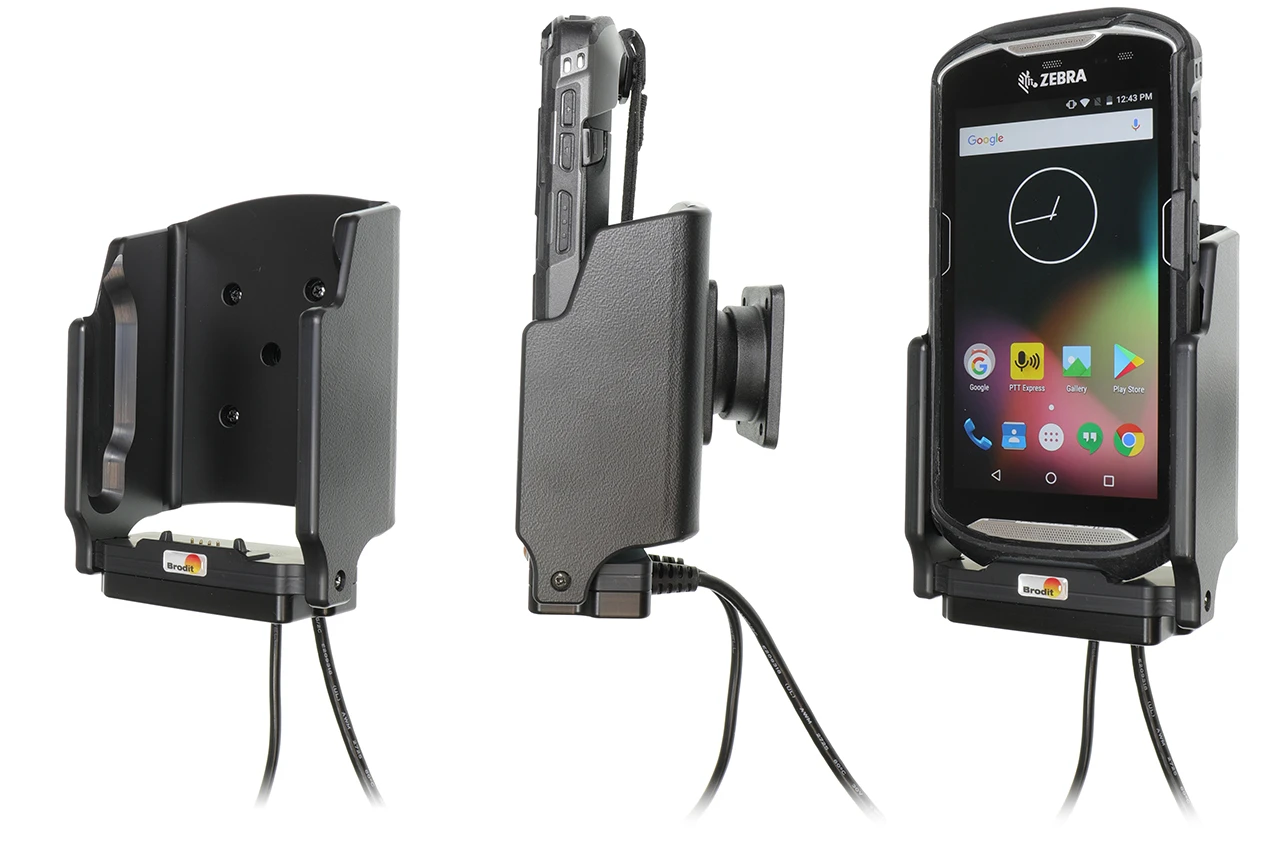

Extra durable active holder with USB Host, designed to withstand rough working conditions in professional use. Keep your device in an active holder while on the road, and you will always have a freshly charged battery! The active holder is to be connected inside the dashboard, this gives a discreet, neat installation without cables hanging over the interior! When you put the device in the holder, it is automatically connected to the charging unit.
12/24 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. 2 A charger. Professional installation recommended. The holder is attached onto a tilt swivel so you can easily adjust your device in order to avoid light reflection. Attach onto a ProClip Mounting Platform.
Dimensions: 88 x 122 x 77 mm (W x H x D mm)
Weight: 316 g
Length cabel: 418 cm, (holder + pigtale 25 cm, cabel to box 77cm, box 11cm, box to open end 305 cm.) USB Cable 47cm.
دليل تركيب المنتج
رقم الخطوة 1

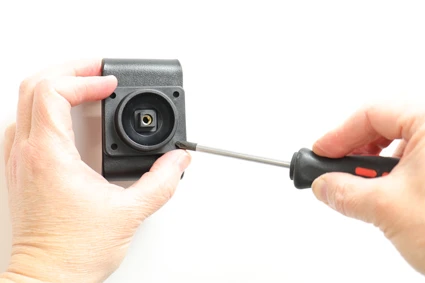

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 2
Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.
رقم الخطوة 3

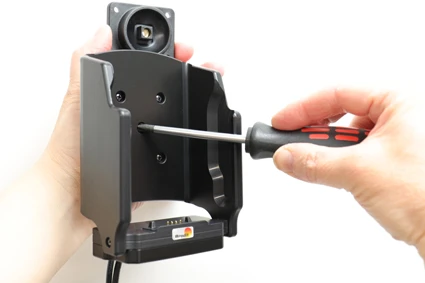

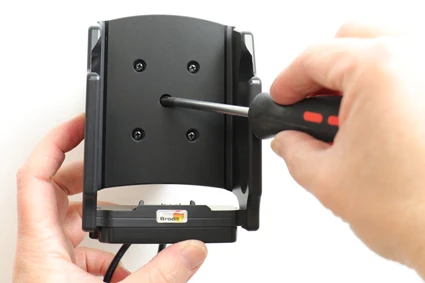

Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw firm at first, then loosen it a bit so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 4

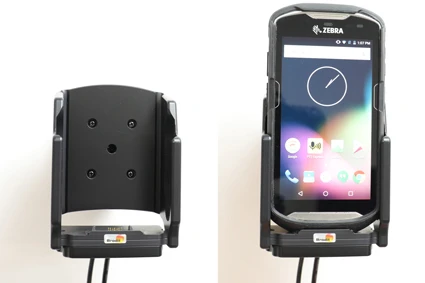

The holder is in place.
