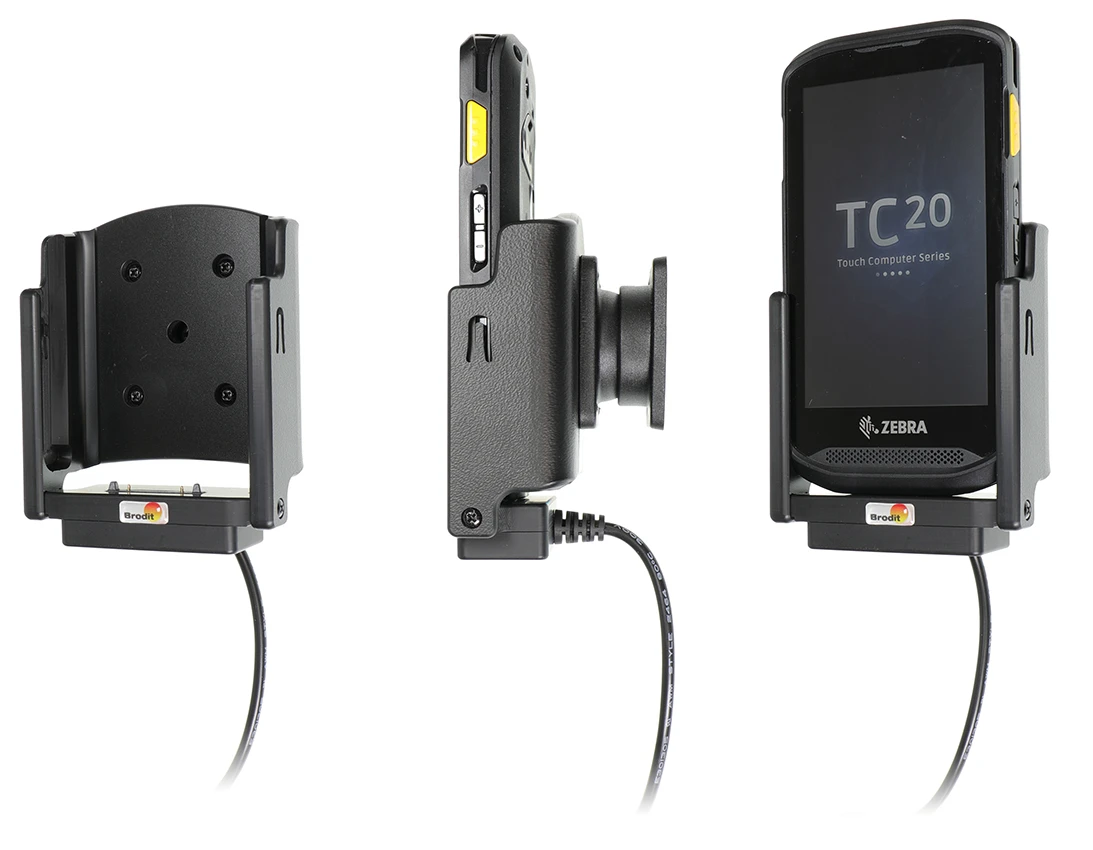

Active holder for fixed installation
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
An active holder which is to be connected inside the dashboard, this gives a discreet, neat installation without cables hanging over the interior!
You can choose to use the holder as an active holder for charging of your device only, or to connect an adapter to the Molex connector for additional features. Then you can use the holder also for power supply of a GPS receiver or other own solutions (can not be used for data communication or audio connection).
12/24 Volt. The product is E-approved. 2A charger. Professional installation recommended. The holder is attached onto a tilt swivel so you can easily adjust your device in order to avoid light reflection. Attach onto a ProClip Mounting Platform.
دليل تركيب المنتج
رقم الخطوة 1
Connect the White wire to a Negative Ground connection of the vehicle or the vehicle chassis. 2. Connect the Red wire to a 12/24 Volt power supply in the vehicle that is controlled by the ignition switch of the vehicle.
رقم الخطوة 2

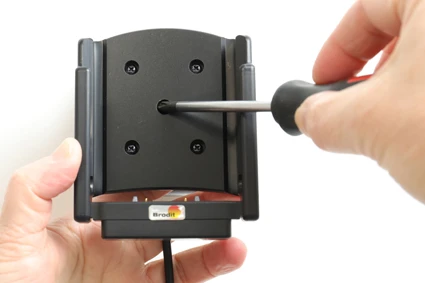

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 3

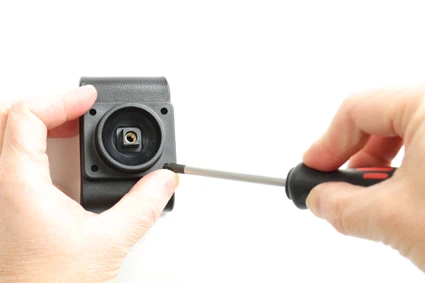

Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.
رقم الخطوة 4

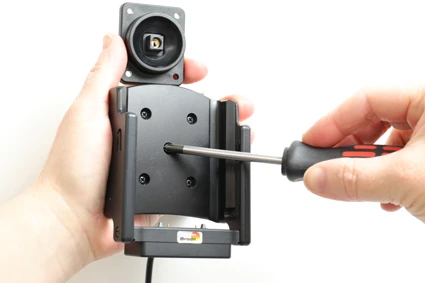

Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.
رقم الخطوة 5

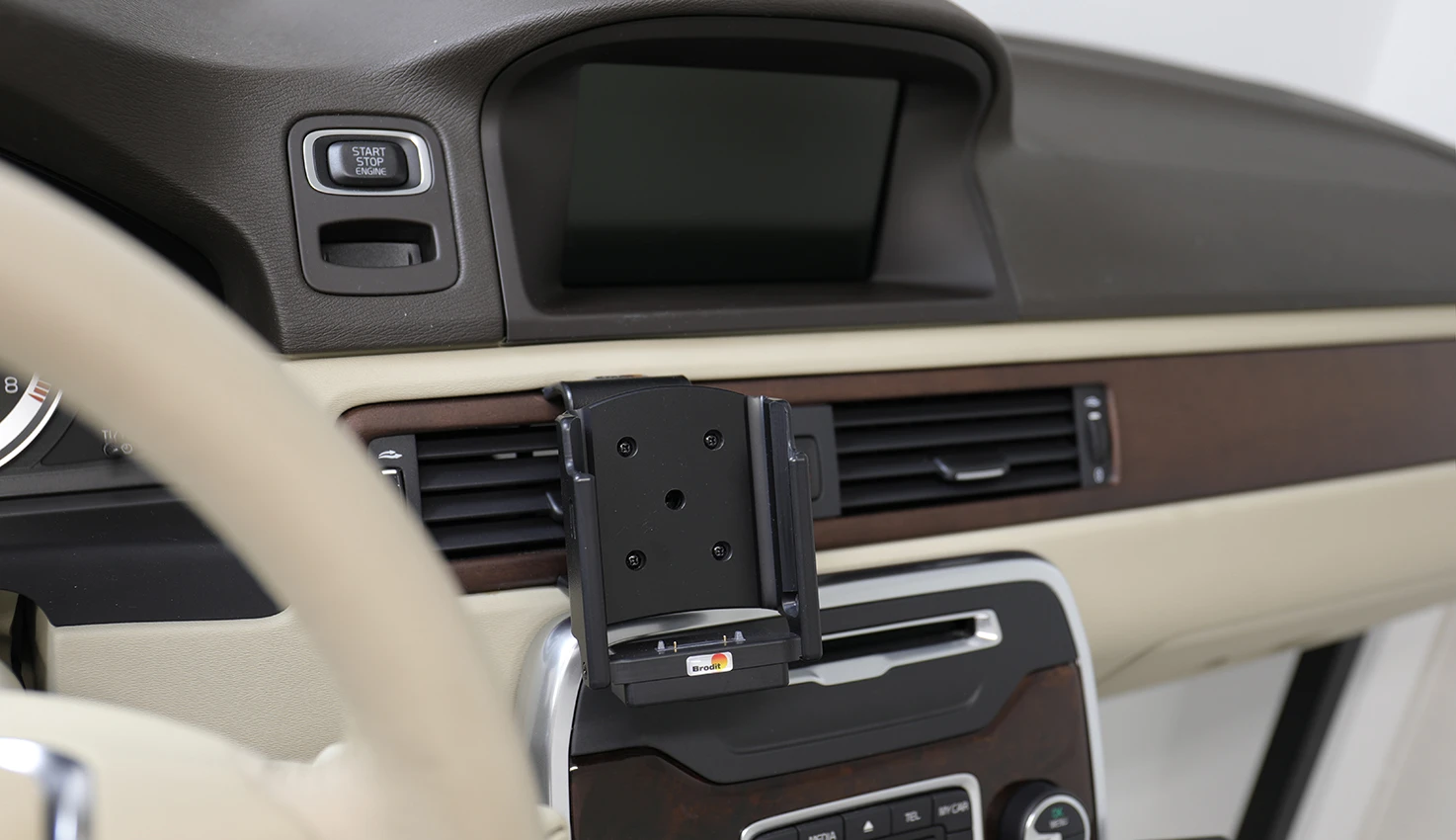

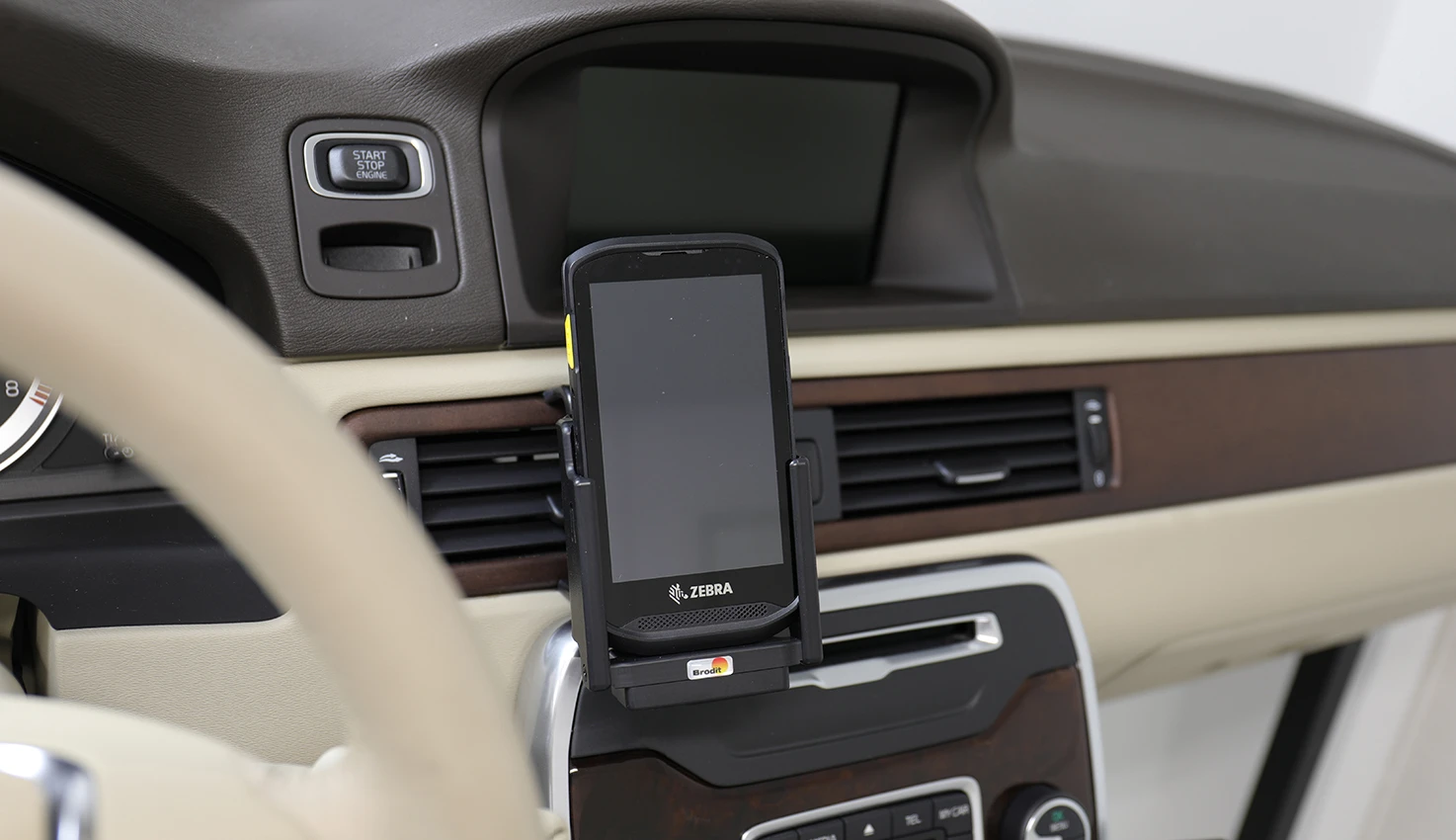

The holder is in place.
