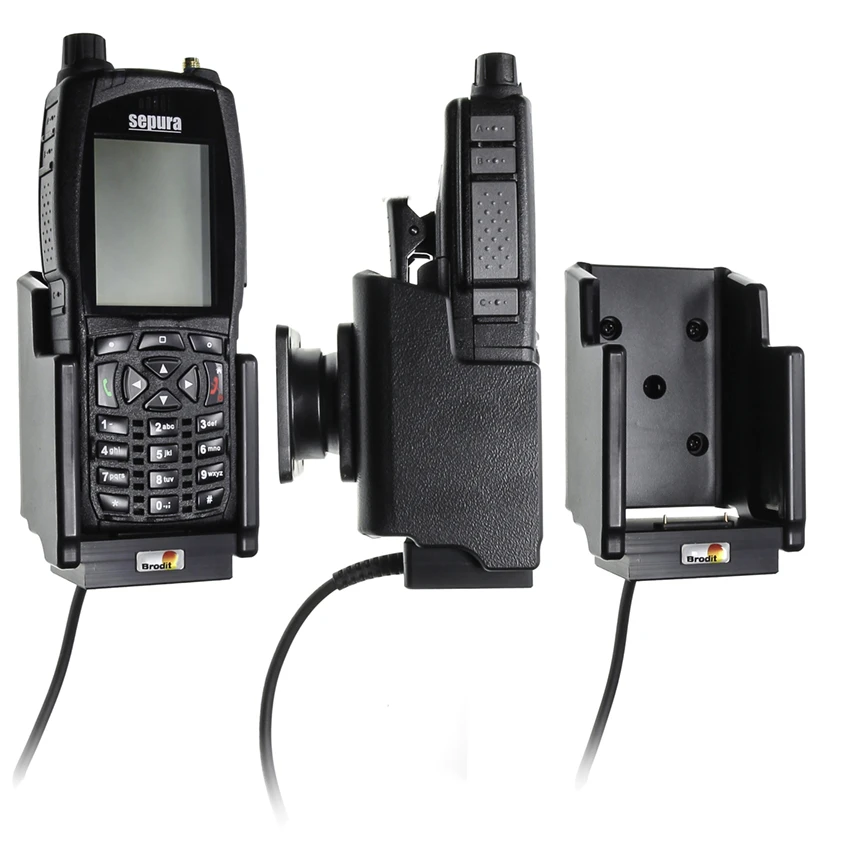

Slim design with charger integrated in the holder. With Tilt Swivel.

معلومات فنية

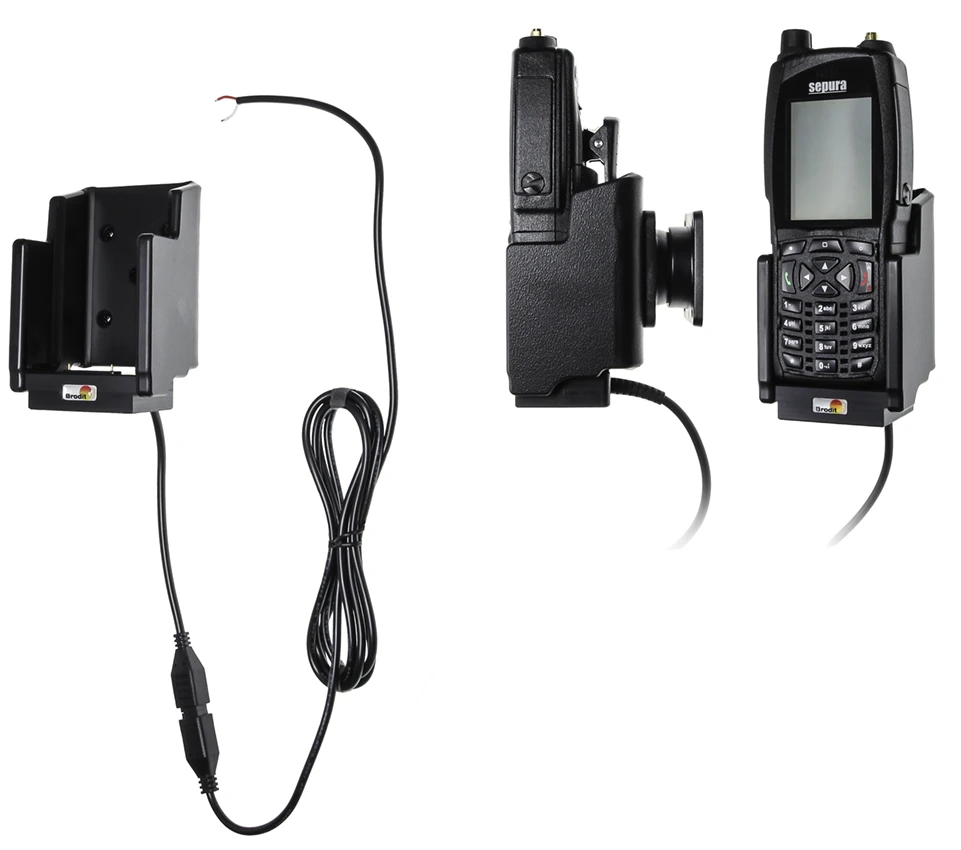

Are you using a two-way radio every day in your work? Then a Brodit active holder will make your days much easier! By keeping the device in an active holder, you will always have it within easy sight and reach while driving between jobs. The cables are to be connected inside the dashboard, this gives a discreet, neat installation without cables hanging over the interior.

The charging device is integrated in the holder itself, so there is no large charging box on the cable. 12/24 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. 2 A charger. Professional installation recommended. Attach onto ProClip Mounting Platform.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

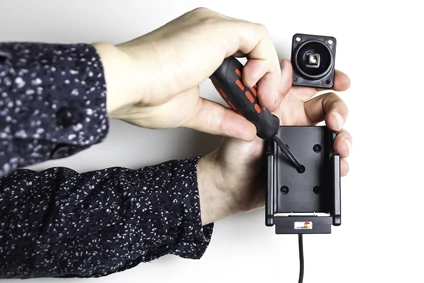

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

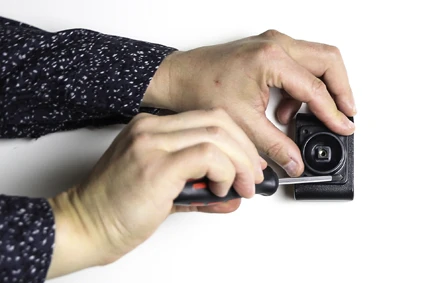

2. Place the attaching plate on desired position. Screw the attaching plate into place with the enclosed screws.

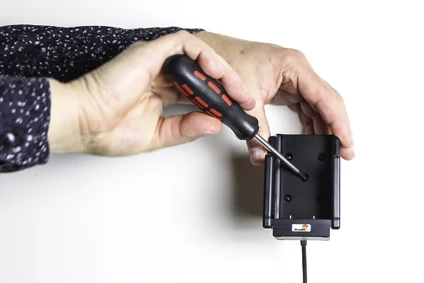

3. Place the holder over the attaching plate so the tilt swivel fits. Screw the holder onto the attaching plate.

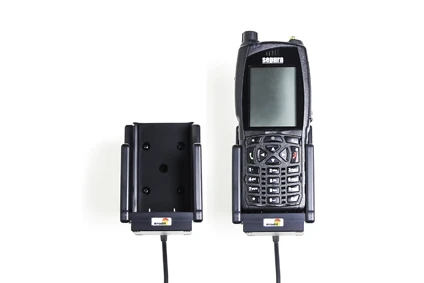

4. The holder is in place.

Charging Specifications

Battery Chemistry: Li-ion or Li-Poly batteries

Input Voltage: 11-30 V

Charging Voltage: 9.5 V

Max. Charging Time: 2-3 hours depending on battery capacity

Rapid Charge: 1,2 A +/- 5%

RoHS Compliant: Yes

Input Transient Protected: Withstands +150V & -450V. A 2,5A fuse is mounted on the incoming supply.

Output Short Circuit Protected: The charger will supply a maximum current of 1,2 A which protects both the charger and the connected equipment. The current limit is set to standards of the producer and shall not be higher.

التوافق

• Sepura : SC2020
