تفاصيل المنتج

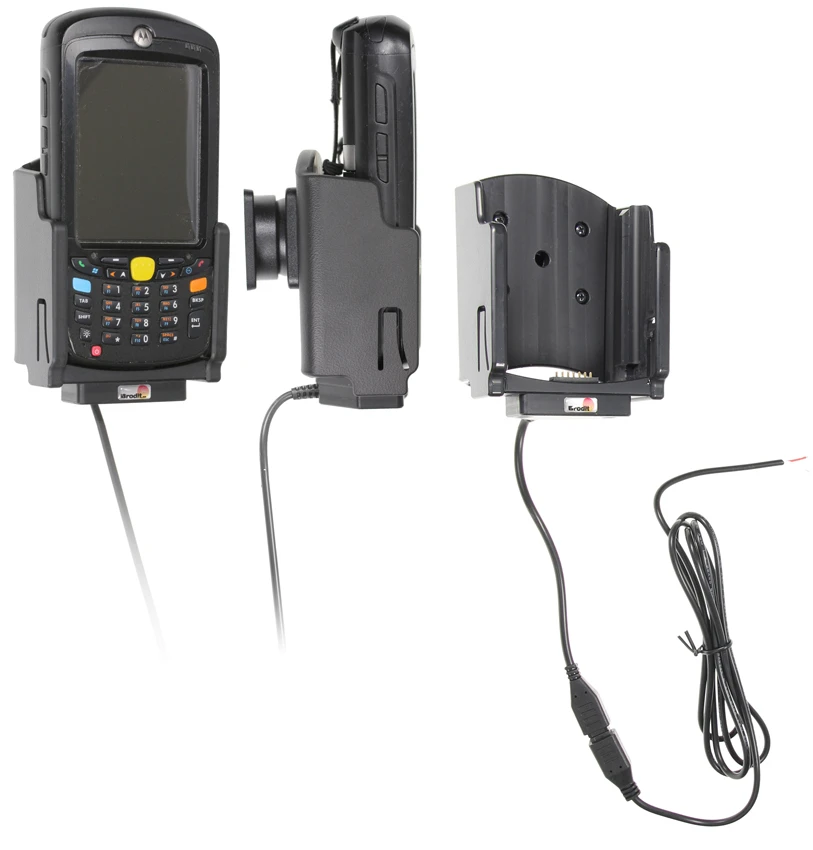

Active holder for fixed installation
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
The cables are to be connected inside the dashboard, this gives a discreet, neat installation without cables hanging over the interior. The charging device is integrated in the holder itself, so there is no large charging box on the cable.
12/24 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. 2 A charger. Professional installation recommended.
The holder is attached onto a tilt swivel and can be adjusted in order to avoid light reflection. The holder fits devices both with standard and extended battery. Attach onto ProClip Mounting Platform.
دليل تركيب المنتج
رقم الخطوة 1
Connect the White wire to a Negative Ground connection of the vehicle or the vehicle chassis. 2. Connect the Red wire to a 12/24 Volt power supply in the vehicle that is controlled by the ignition switch of the vehicle.
رقم الخطوة 2
Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 3

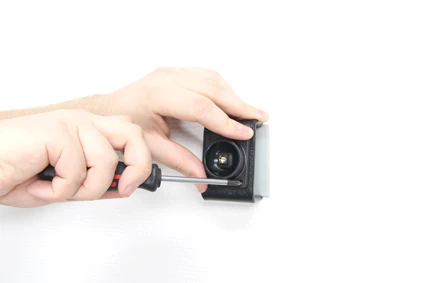

Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.
رقم الخطوة 4

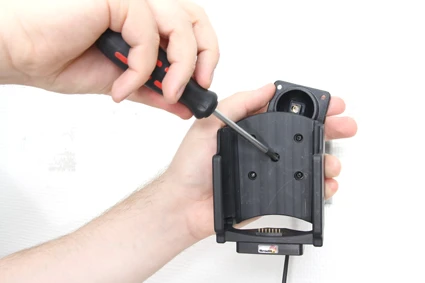

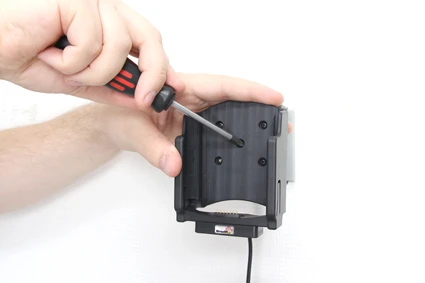

Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.
رقم الخطوة 5

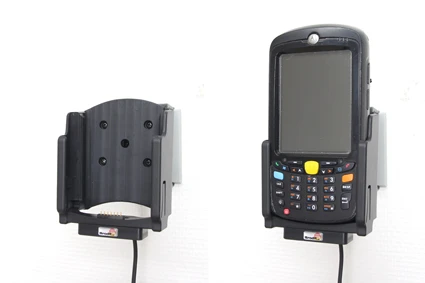

The holder is in place.
