تفاصيل المنتج

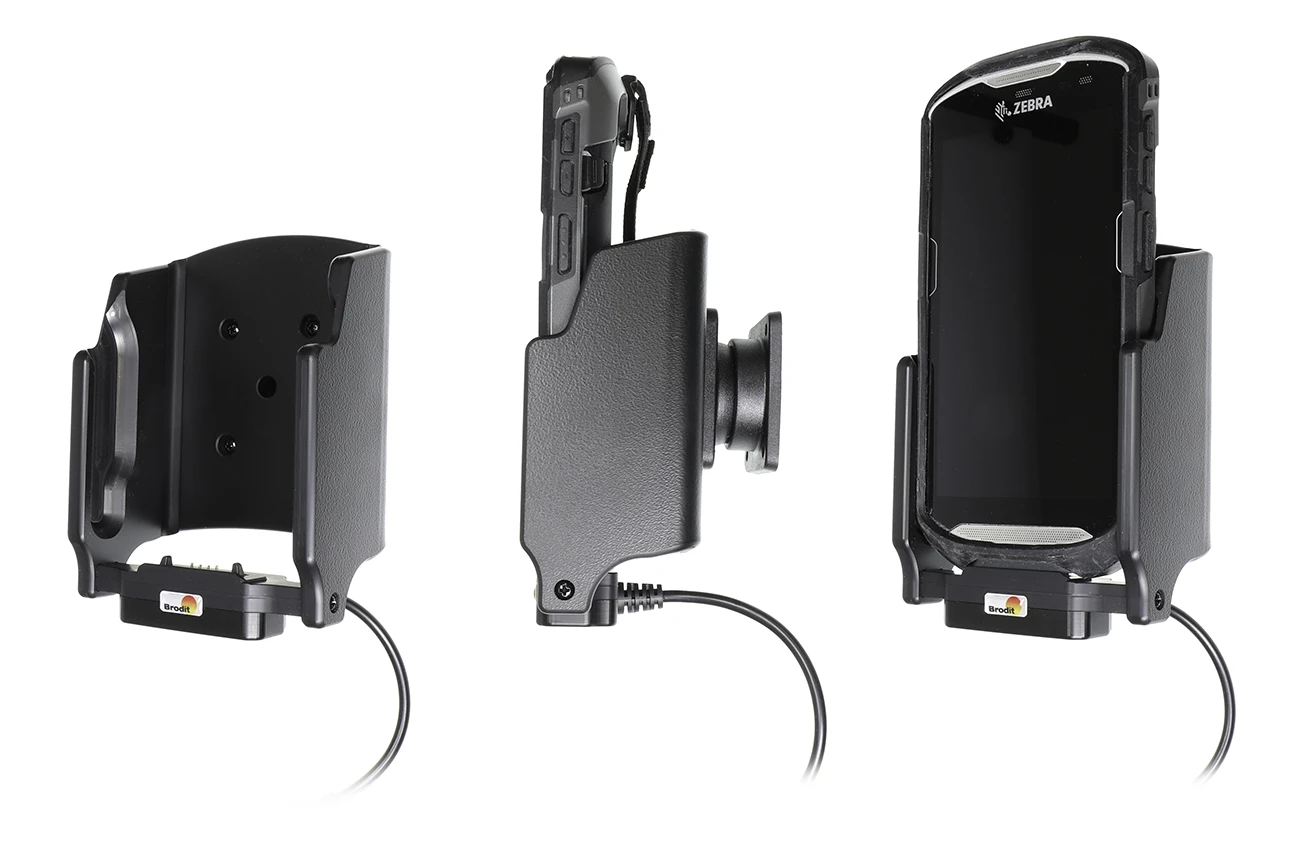

Active holder for fixed installation
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
An active holder which is to be connected inside the dashboard, this gives a discreet, neat installation without cables hanging over the interior!

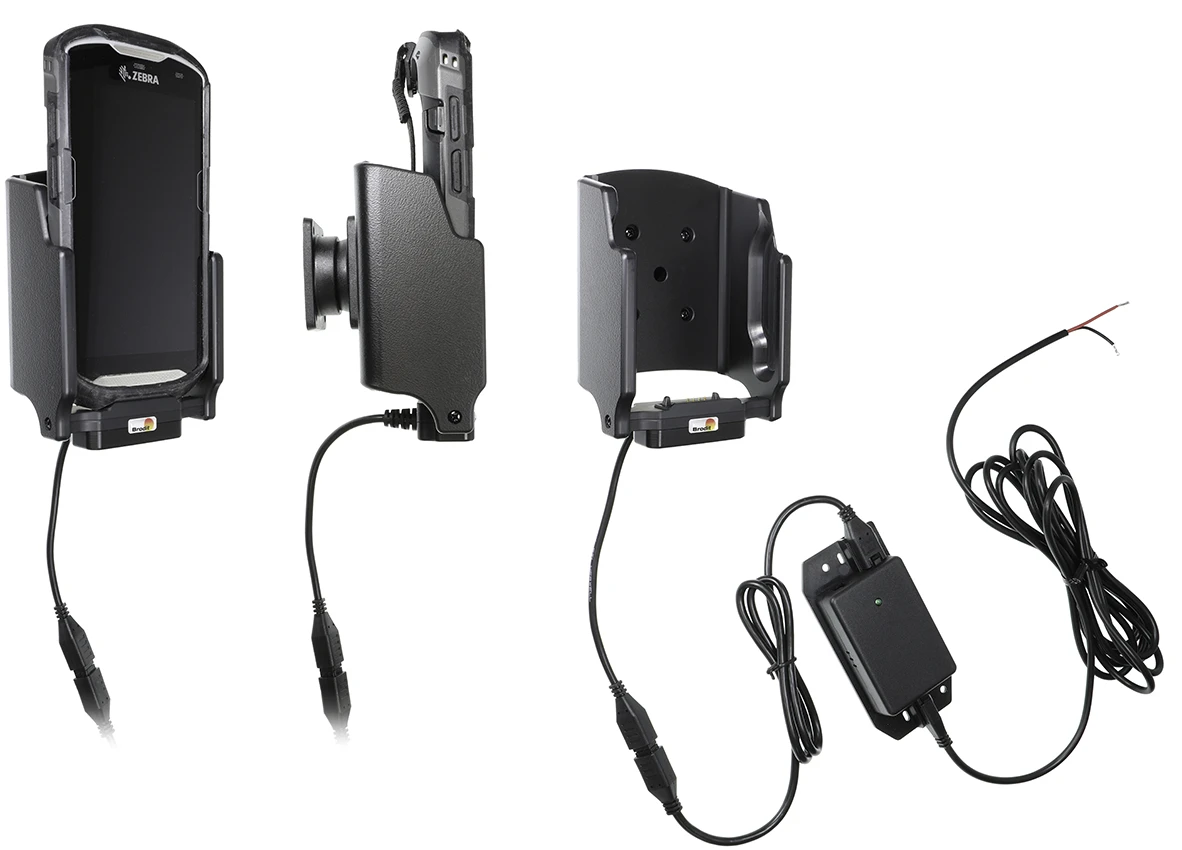

You can choose to use the holder as an active holder for charging of your device only, or to connect an adapter to the Molex connector for additional features. Then you can use the holder also for power supply of a GPS receiver or other own solutions (can not be used for data communication or audio connection).
12/24 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. 2,7 A charger. Professional installation recommended. The holder is attached onto a tilt swivel so you can easily adjust your device in order to avoid light reflection. Attach onto a ProClip Mounting Platform.
Dimensions: 87 x 125 x 76 mm (W x H x D mm)
Weight: 315 g
Length cabel: 420 cm, (holder + pigtale 27 cm, cabel to box 77cm, box 11cm, box to open end 305 cm.
دليل تركيب المنتج
رقم الخطوة 1

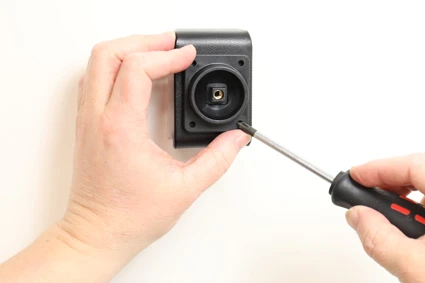

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 2
Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.
رقم الخطوة 3

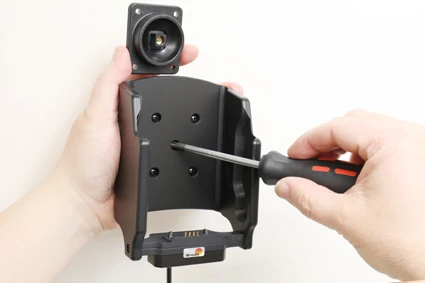

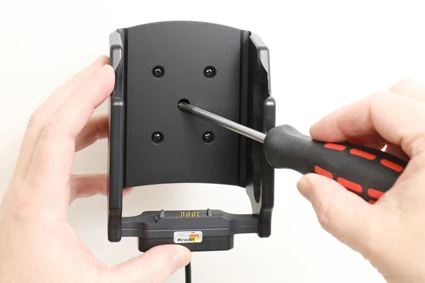

Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw firm at first, then loosen it a bit so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 4

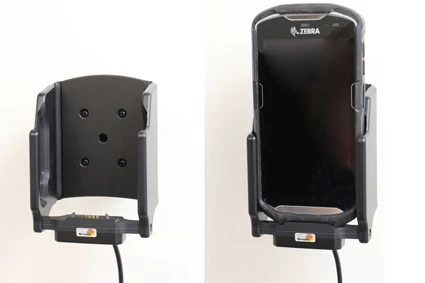

The holder is in place.
