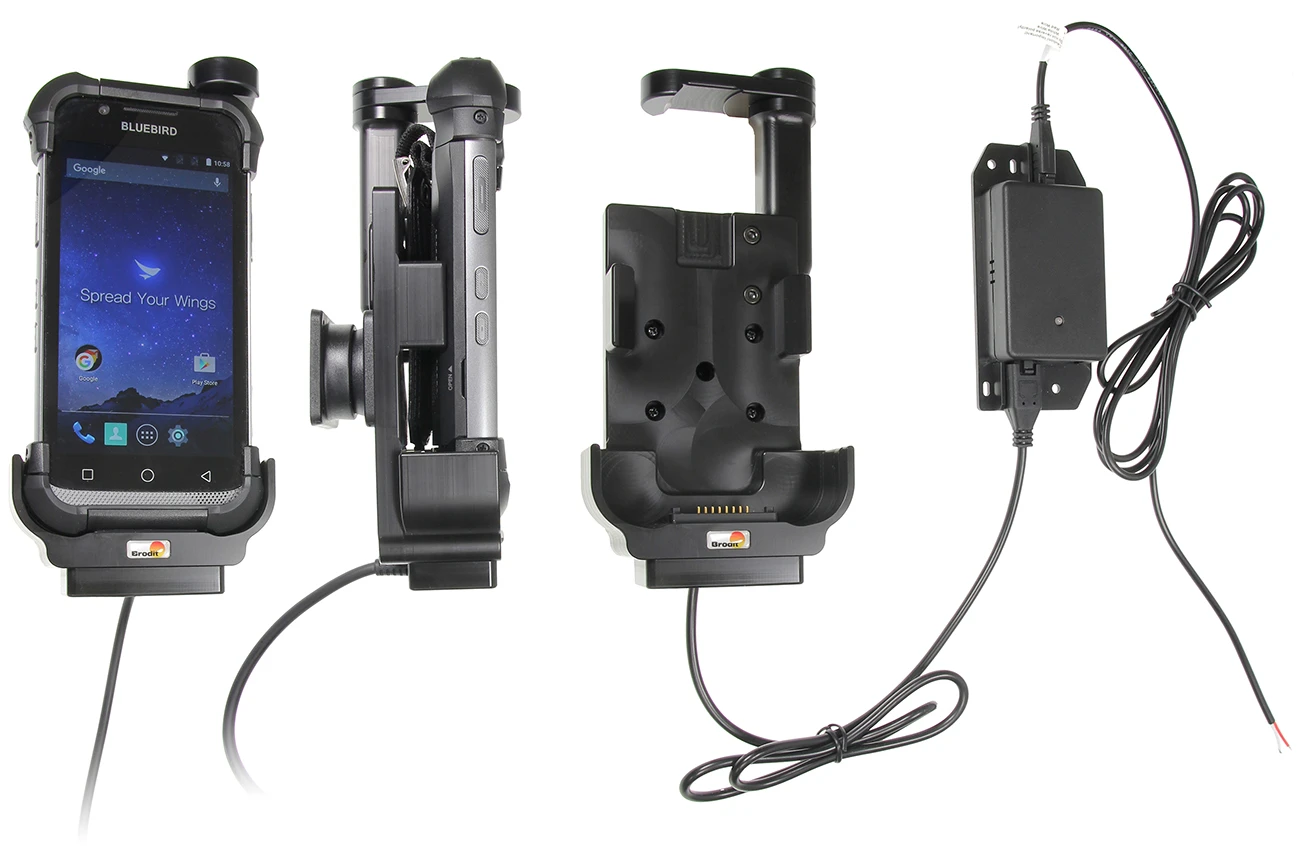

Active holder for fixed installation
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

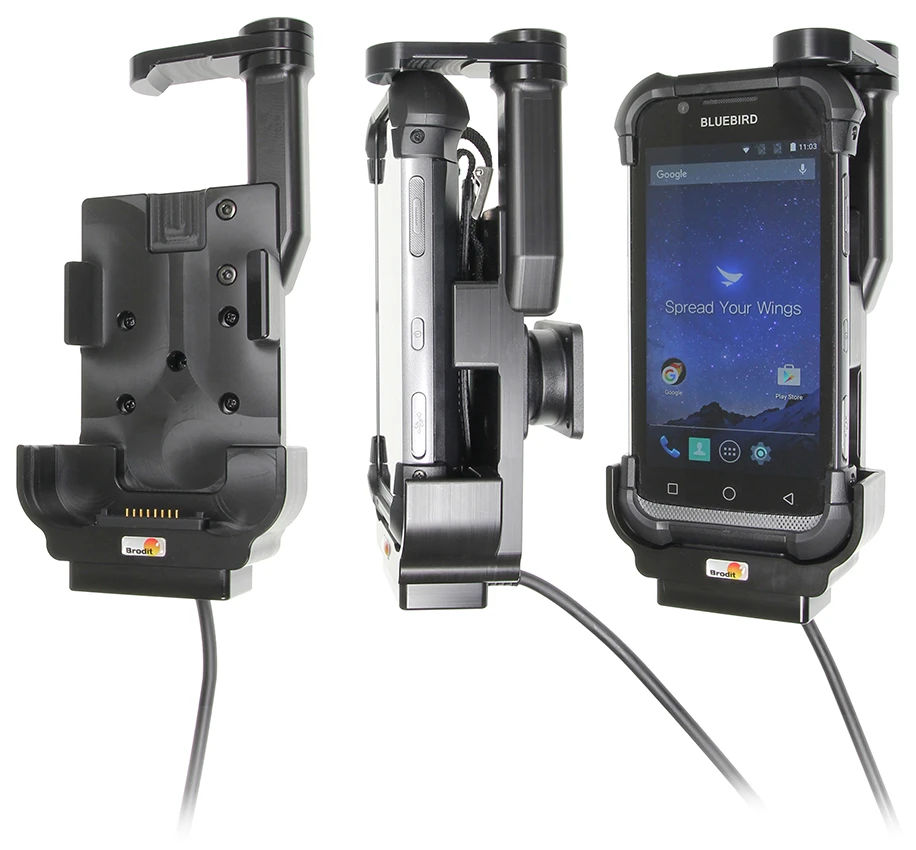

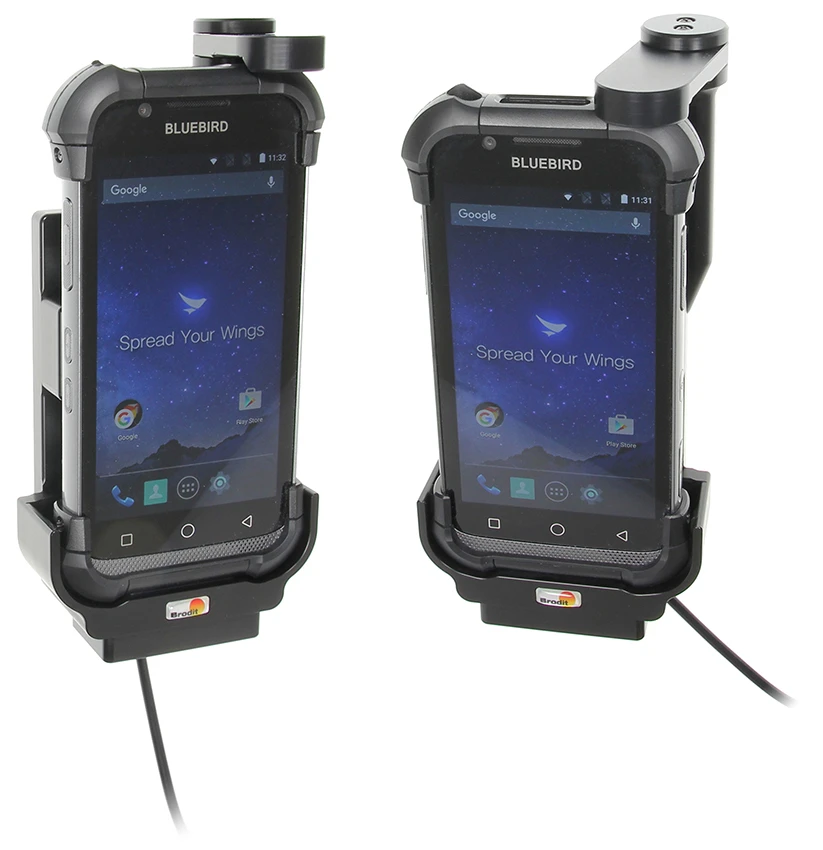

Robust active holder with rugged design to withstand rough handling in professional everyday use. Keeps your device extra securely in place in the holder. Thanks to the swiveling top part which ”locks” the device in the holder, the charging is properly connected at all times and the device can not shake the least. Custom made with a perfect fit.
An active holder which is to be connected inside the dashboard, this gives a discreet, neat installation without cables hanging over the interior. You can choose to use the holder as an active holder for charging of your device only, or to connect an adapter to the Molex connector for additional features. Then you can use the holder also for power supply of your own solutions (can not be used for data communication or audio connection).
The product is E-approved. Connect the power cable with a 2 A fuse. Professional installation recommended. The holder is equipped with a tilt swivel so you can easily adjust the angle for good viewing. Tilts 15°, swivels 360°. Attach onto a Pedestal Mount or High Strength ProClip Mounting Platform. Made of black Acetal/ABS plastic. Made in Sweden
Dimensions: 93 x 198 x 79 mm (W x H x D mm)
Weight: 400 g
Cable length: Total length: 240 cm (Holder to box: 70 cm, Connectors+box 14 cm, Box to open end: 156 cm.)
Charging specifications:
Input voltage: DC/10-24V
Charging voltage: DC/4.6-5.3V
Output current(Typ): 3.0A
Input & output protection: Input polarity reversal/Output over voltage/Output over current/Output short protection
LED charging indicator: Product output indicator
Operating temperature: 0°C ~ +40°C
Storage temperature: -20°C ~ +80°C
RoHS compliant: ROHS
دليل تركيب المنتج
رقم الخطوة 1

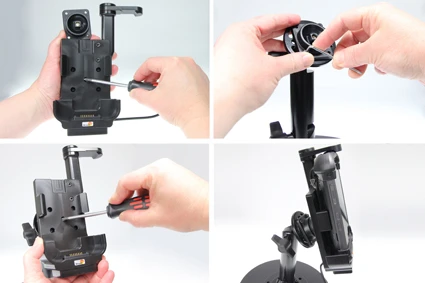

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw firm at first, then loosen it a bit so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 2

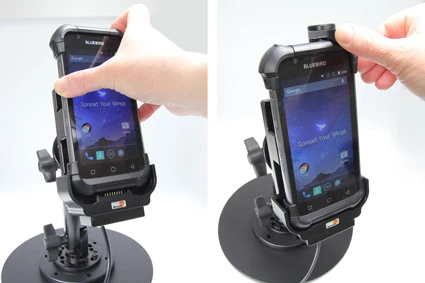

To place the device in the holder: Place the device over the holder and slide it downward into the holder so the charging connector connects. Turn the swiveling top sideways so it is placed over the device and hold it extra securely in place.
رقم الخطوة 3

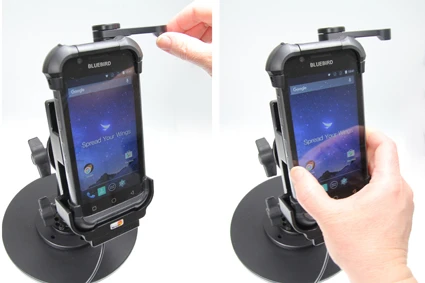

To remove the device from the holder: Turn the swiveling top sideways away from the device so the device is set free. Lift the device upward out from the holder.
رقم الخطوة 4

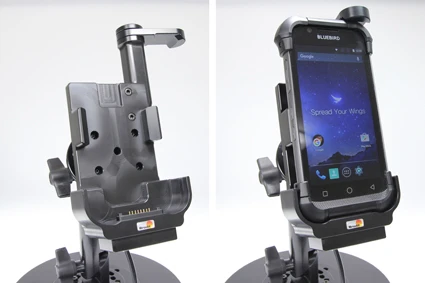

The holder is in place.
