Active holder for fixed installation

رقم الصنف : 216086

With swiveling top support for an extra firm installation. 2A charger. 12/24 Volt. With Easy-switching system.

Zebra MC3300

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

With swiveling top support for an extra firm installation. 2A charger. 12/24 Volt. With Easy-switching system.

معلومات فنية

The choice for you who want to have you PDA firmly in place, properly attached and still within easy reach. The holder has a strong, robust design to withstand rough handling in professional use. The swiveling top part keeps your device extra securely in place in the holder, it "locks" the device in the holder so that it can not shake the least. It is easy to place the PDA in the holder, and to take it with you when leaving the vehicle.

Easy-switching system:

The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

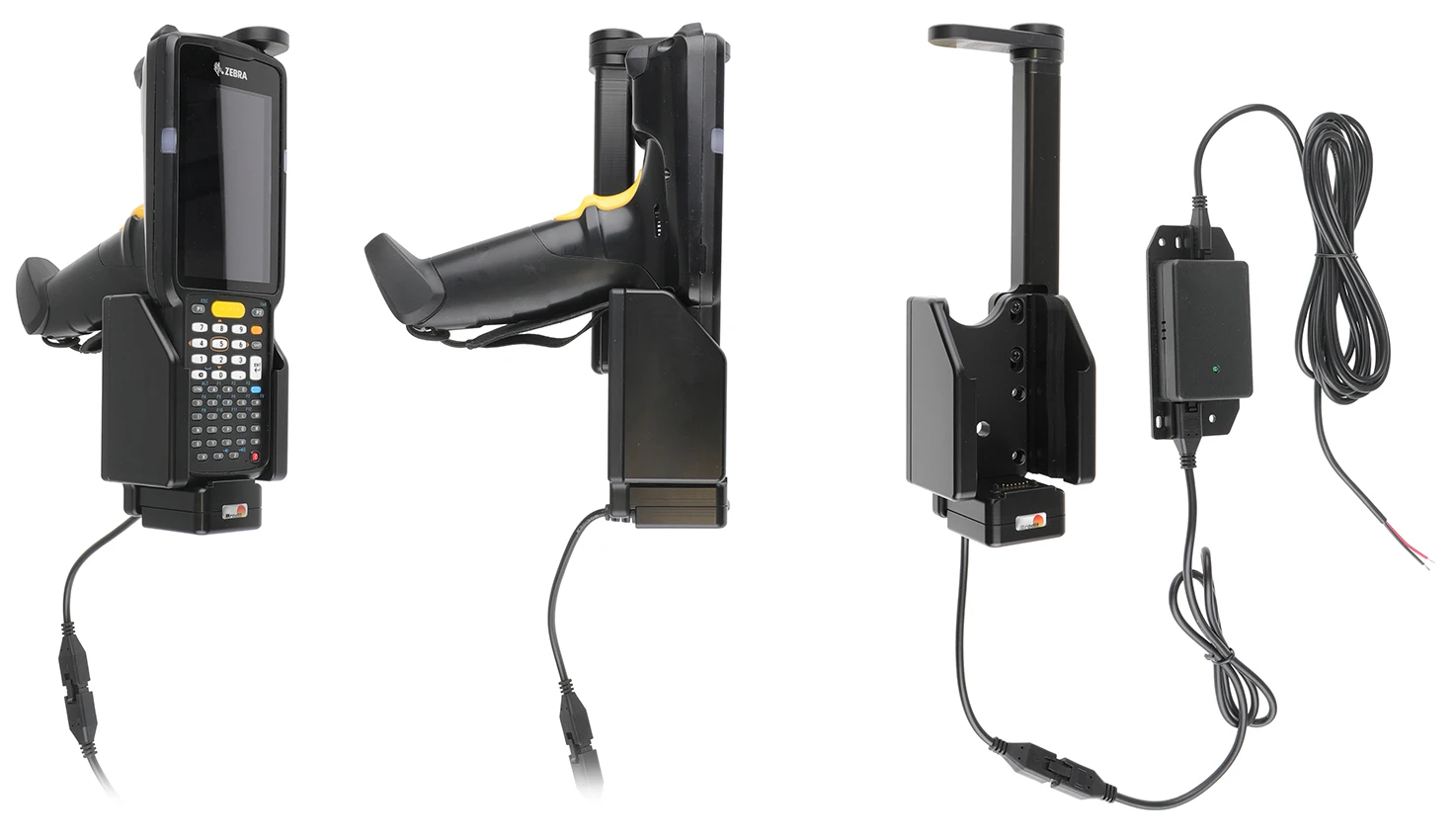

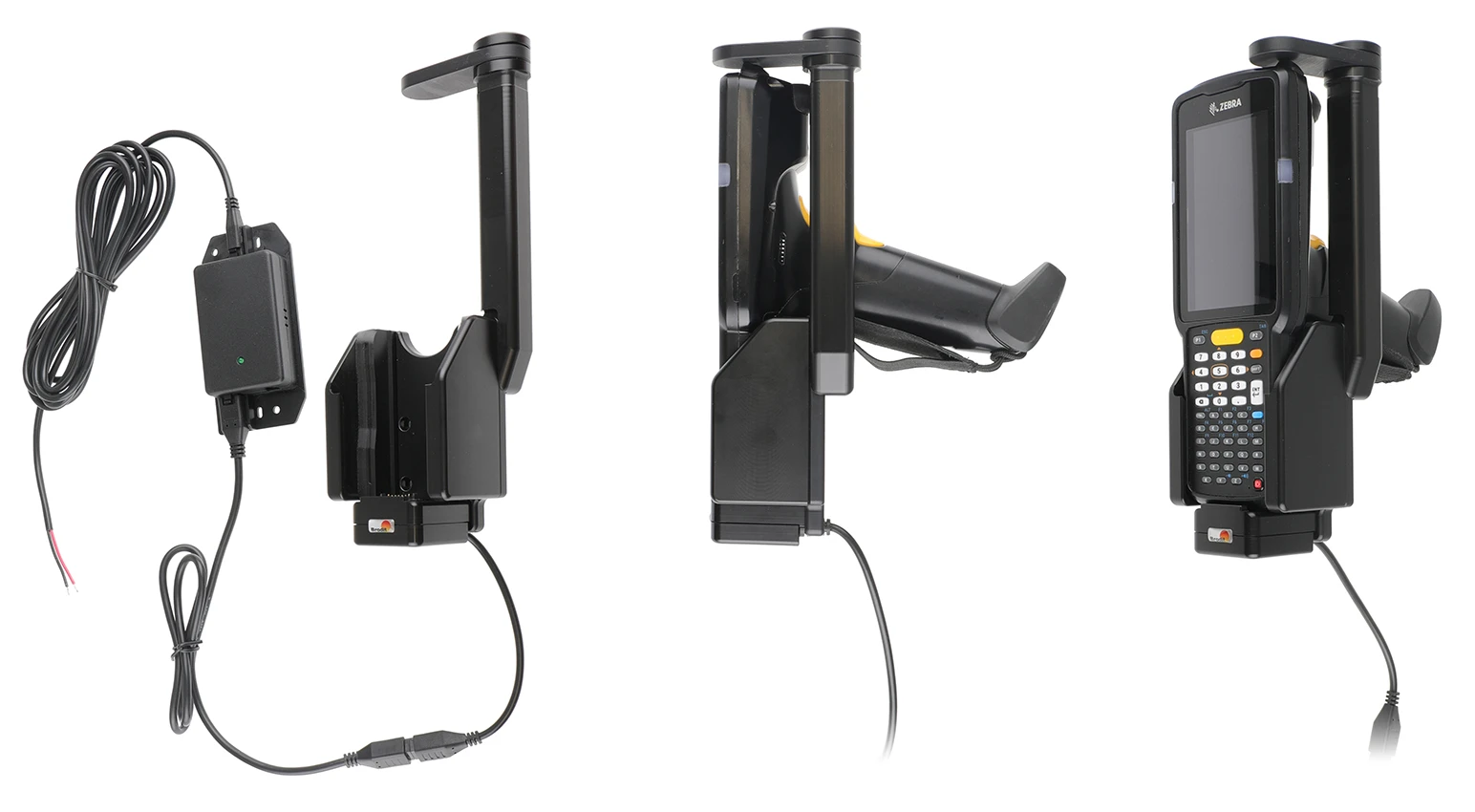

The holder is equipped with a tilt swivel so you can easily adjust the angle for good viewing. Attach onto a Pedestal Mount. The charging device is automatically connected when you put the device in the holder. Connects to the vehicle's cigarette lighter socket, 12/24 Volt.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

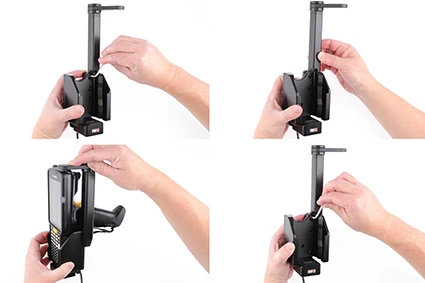

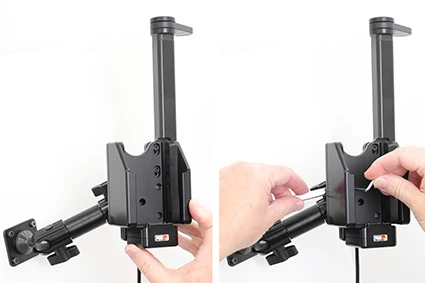

1. To adjust the length of the top arm: Loosen both screws in the holder with the enclosed tool. Pull the arm upward to maximum length. Place the device in the holder. Turn the swiveling top part over the device and press it downward. Carefully turn the swiverling top part away from the device and remove the device without changing the position of the arm. Tighten both screws in the holder to lock the position of the top arm.

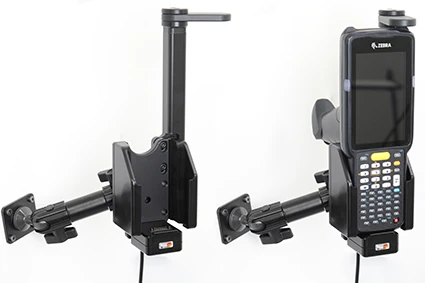

2. Attach the mount: Place the mount into the desired position attach it with the enclosed screws.

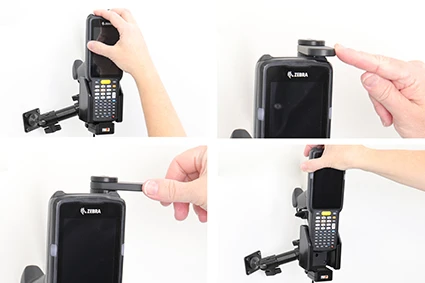

3. To place the device in the holder: Hold the device over the holder and slide it straight downward into the holder. Turn the swiveling top over the device. To remove the device from the holder: Turn the swiveling top sideways so the device is set free. Lift the device straight upward, out from the holder.

4. The holder is in place.

التوافق

Zebra : MC3300
