الوصف

With USB Type-C to Type-C cable. For device with Zebra original Rugged Boot. Power Supply Sold Separately.

معلومات فنية

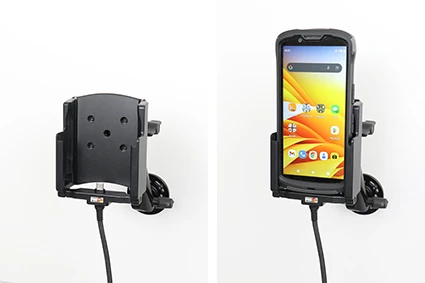

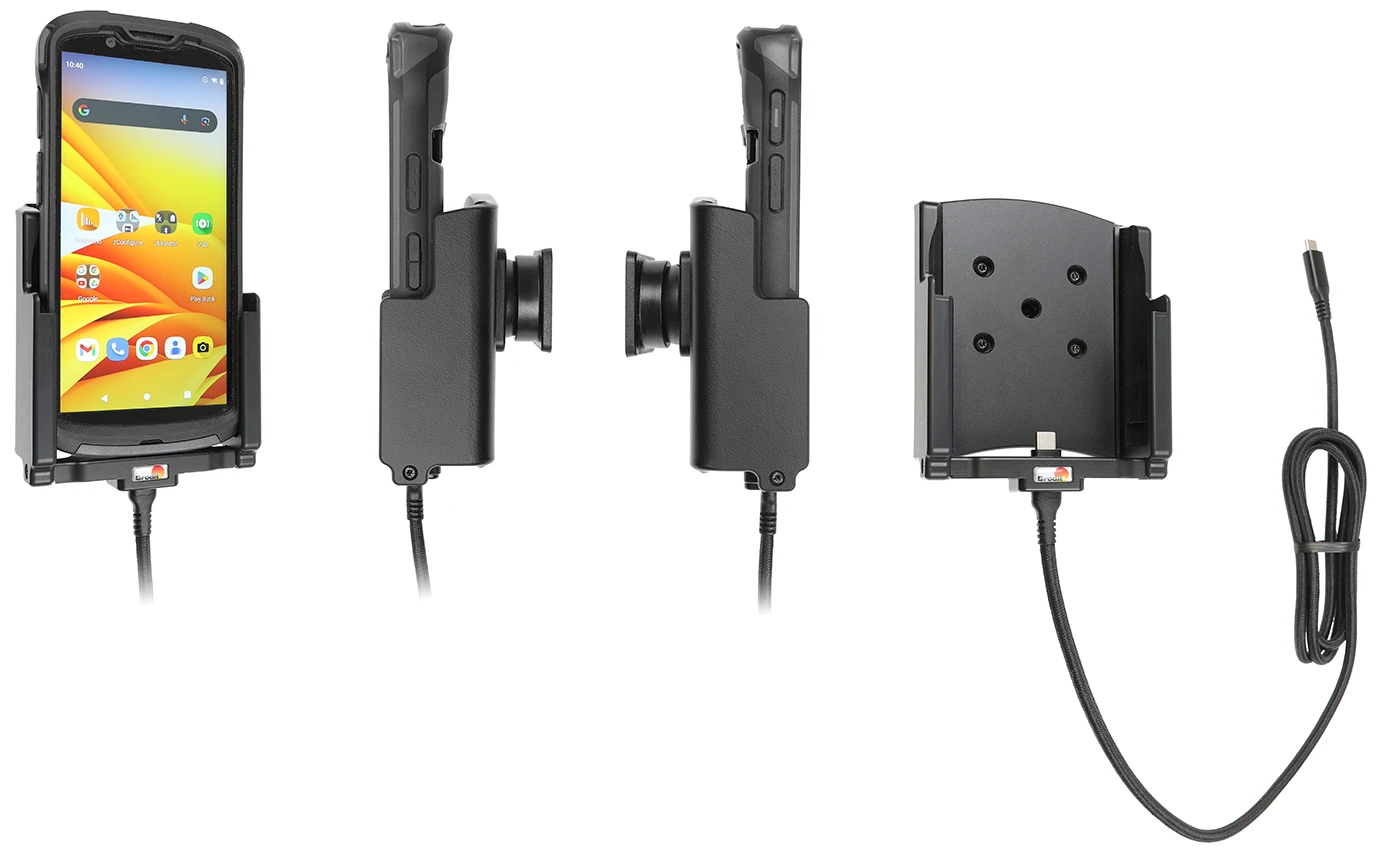

This holder is the perfect choice when you want to have your device firmly in place within easy reach. Custom fit for devices with Rugged Boot. The holder is made of extra strong plastic. Attach the holder to any flat surface or a Pedestal Mount in a truck, distribution vehicle, warehouse etc. You have full access to the camera and all buttons and outlets when the device is in the holder.

Power Supply Sold Separately.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS plastic. Color: black. Made in Sweden. For easy and optimal installation, attach the holder onto a custom ProClip Vehicle Mount, a Pedestal Mount or attach it directly to any surface.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

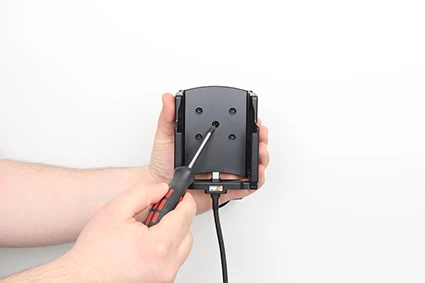

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

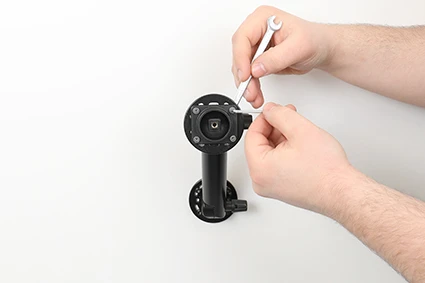

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.

3. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.

4. The holder is in place.

التوافق

• Zebra : TC58e
• Zebra : TC58
• Zebra : TC53e
• Zebra : TC53
