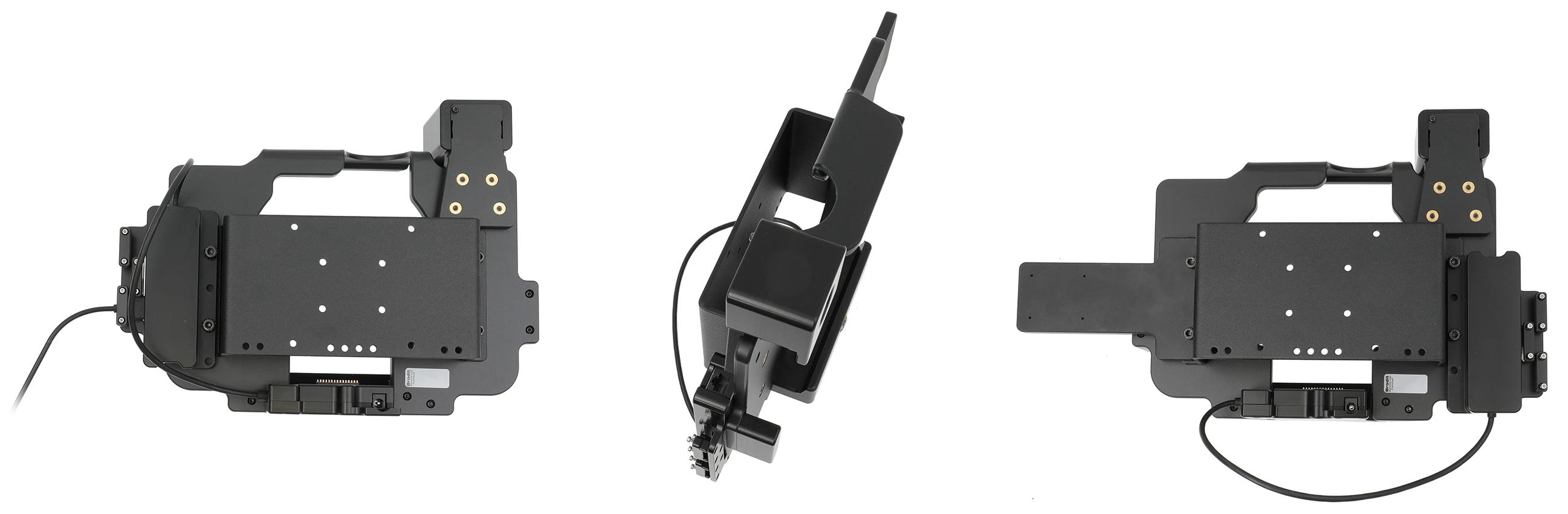

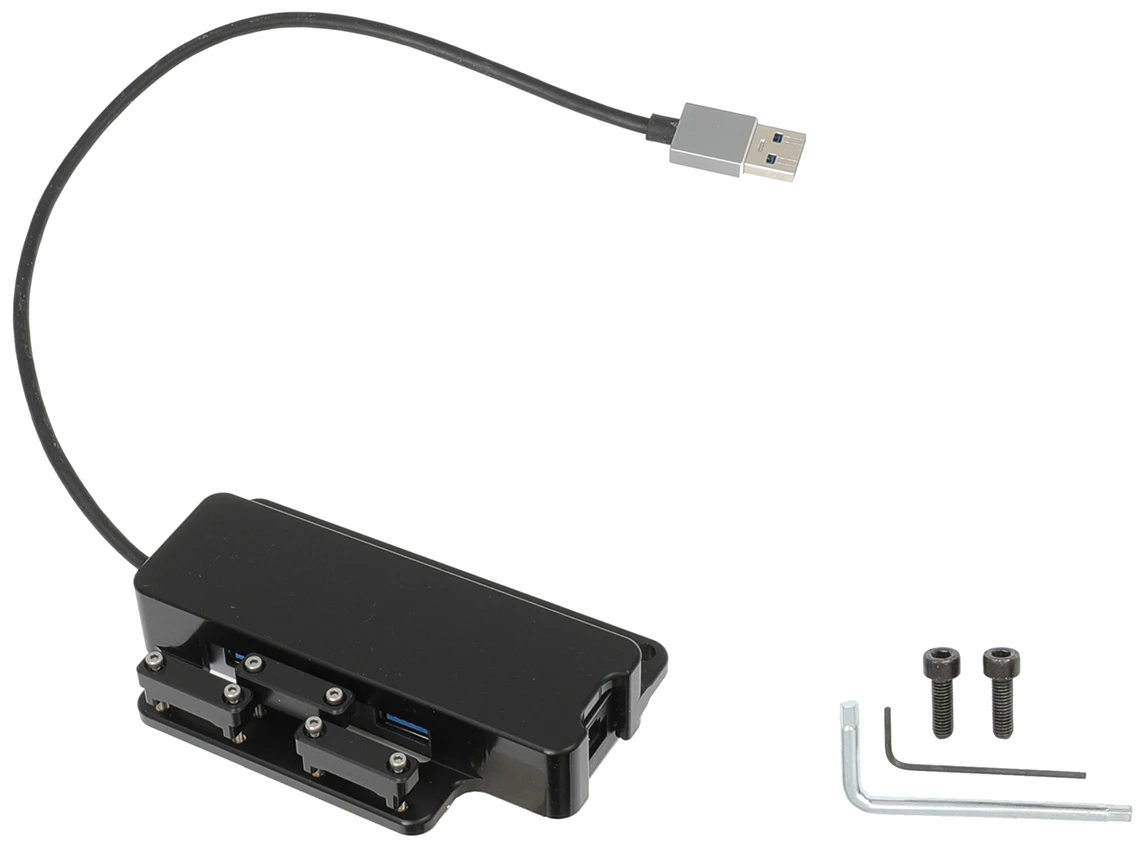

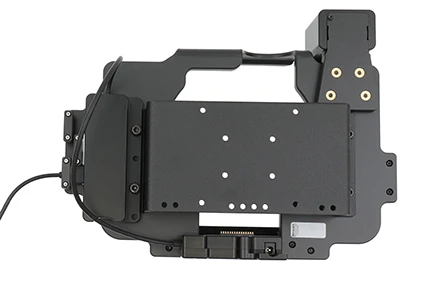

Hub mount for Module Upgrade Cradles. Hub with three USB-A ports with USB-Host function and one Ethernet port.

معلومات فنية

The Module Upgrade Cradles from Brodit are designed to withstand frequent wear and tear in professional every day use, providing a more productive working day and better working environment with your device within sight and reach. Safe, efficient and convenient!

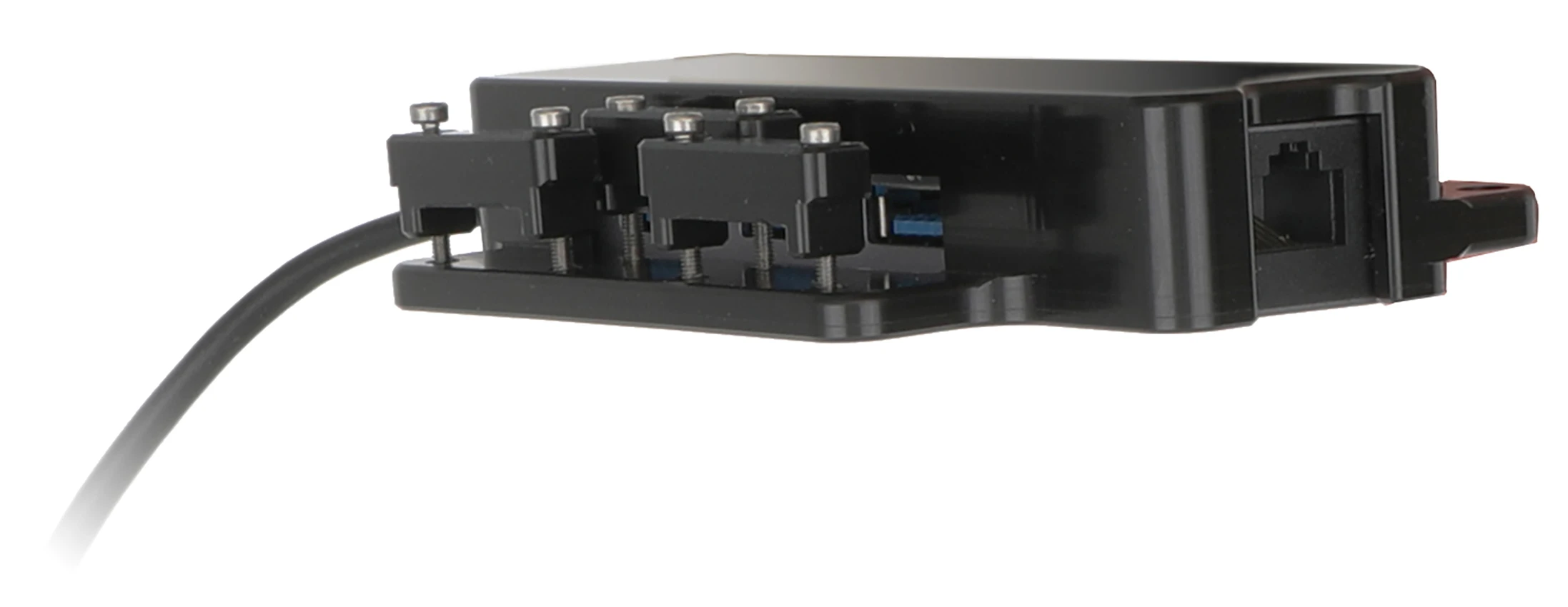

This mount with the Hub included is the perfect choice for you when you want three USB-A ports with USB-Host function and one Ethernet port connected to your Zebra unit. Only connect the cable to the USB-A port on the active Module Upgrade holder.

Fits Module Upgrade holder with expansion back for Zebra ET4x, ET5x.

Fits Honeywell EDA10A Module Upgrade holders 712403 and 713403.

التعليمات

Read all of the instructions and look at the pictures before installing.

Please note: The Hub mount can be placed on either side of the holder.

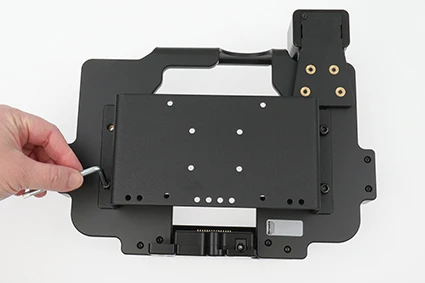

1. Turn the device back side up in order to demount the screws.

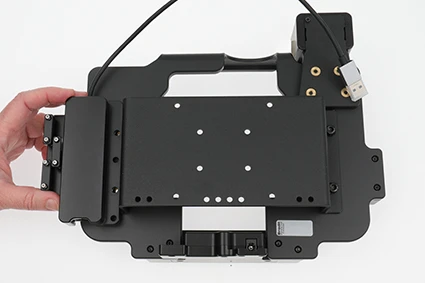

2. Place the Hub mount over the holes. Attach the Hub mount by using the enclosed screws.

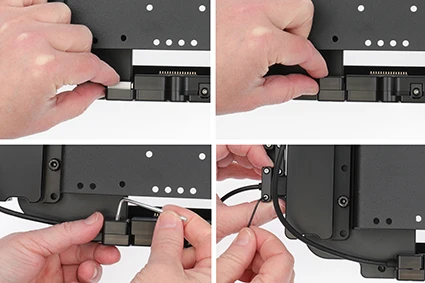

3. To attach the cable: Attach the cable to the device. Place the lid over the cable and screw it into place with the enclosed screws.

4. The mount is in place.

التوافق

• Honeywell : EDA10A
• Pepperl+Fuchs : Tab-IND 10
• Pepperl+Fuchs : Tab-IND 08
• Zebra : ET56 8.4
• Zebra : ET56 10.1
• Zebra : ET55 8.3
• Zebra : ET55 10.1
• Zebra : ET51 8.4
• Zebra : ET51 10.1
• Zebra : ET50 8.3
• Zebra : ET50 10.1
• Zebra : ET45 8
• Zebra : ET45 10
• Zebra : ET40 8
• Zebra : ET40 10
