الوصف

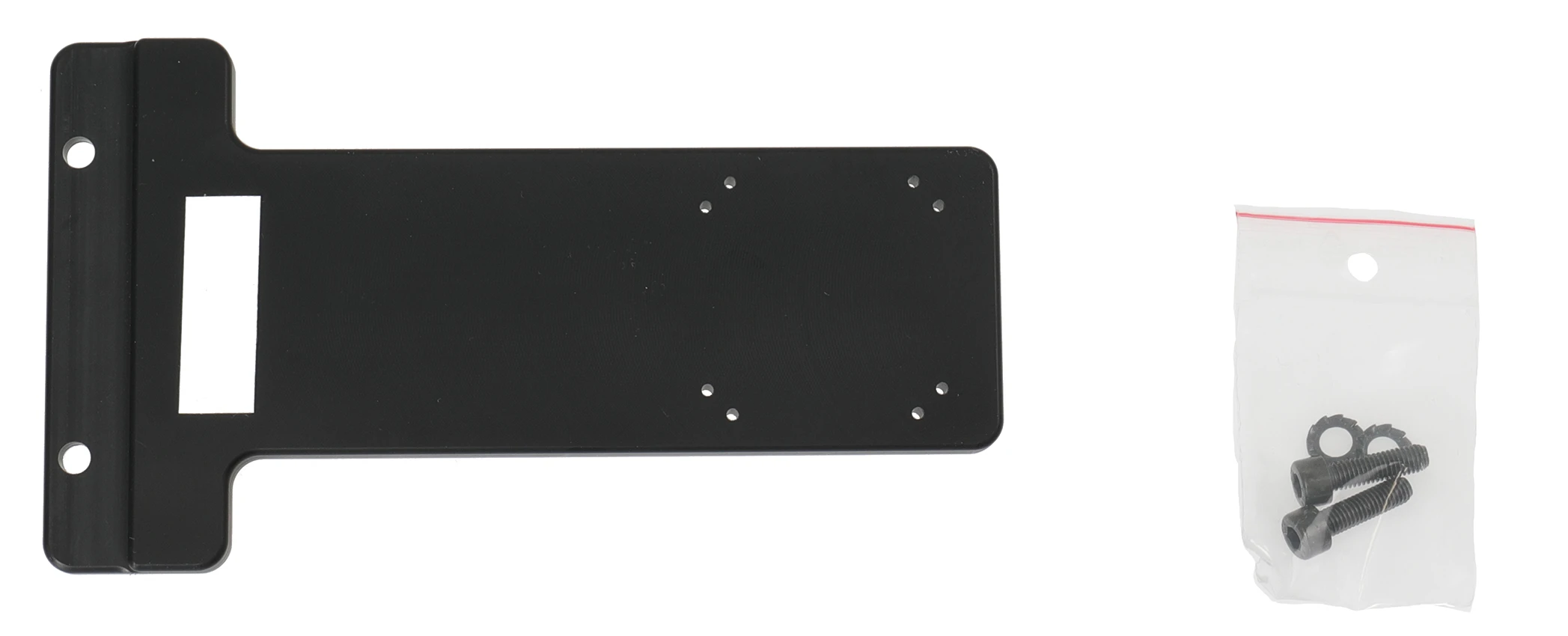

Extension plate, for Module Upgrade Cradles.

معلومات فنية

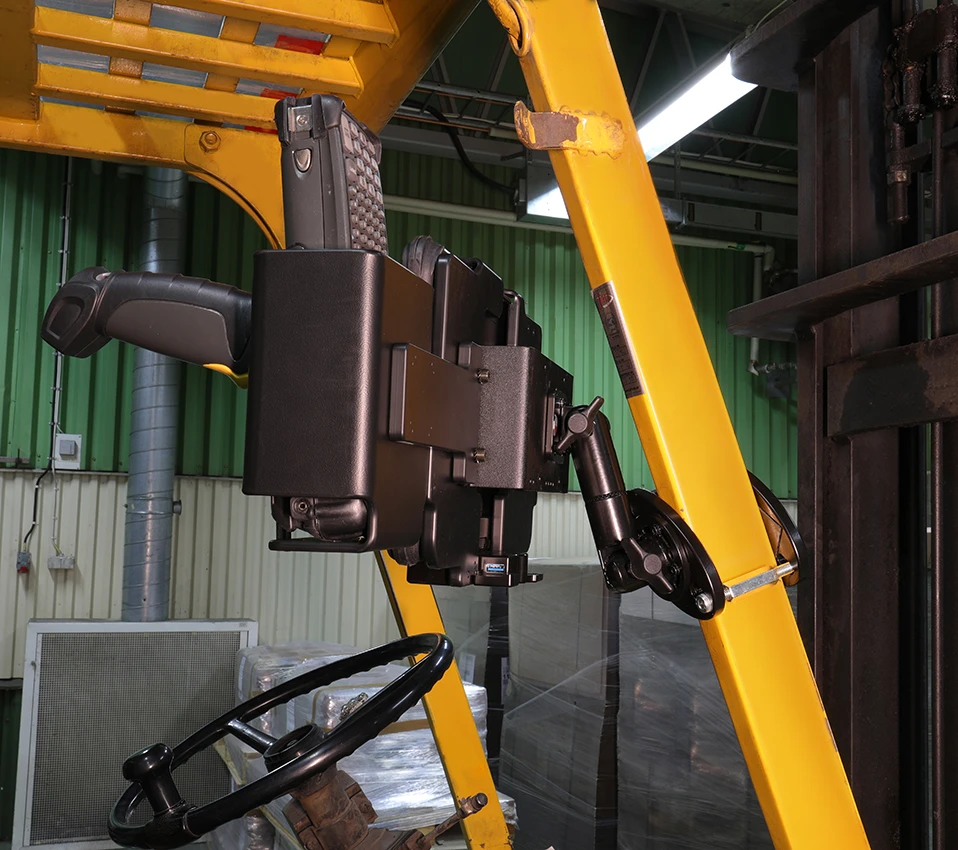

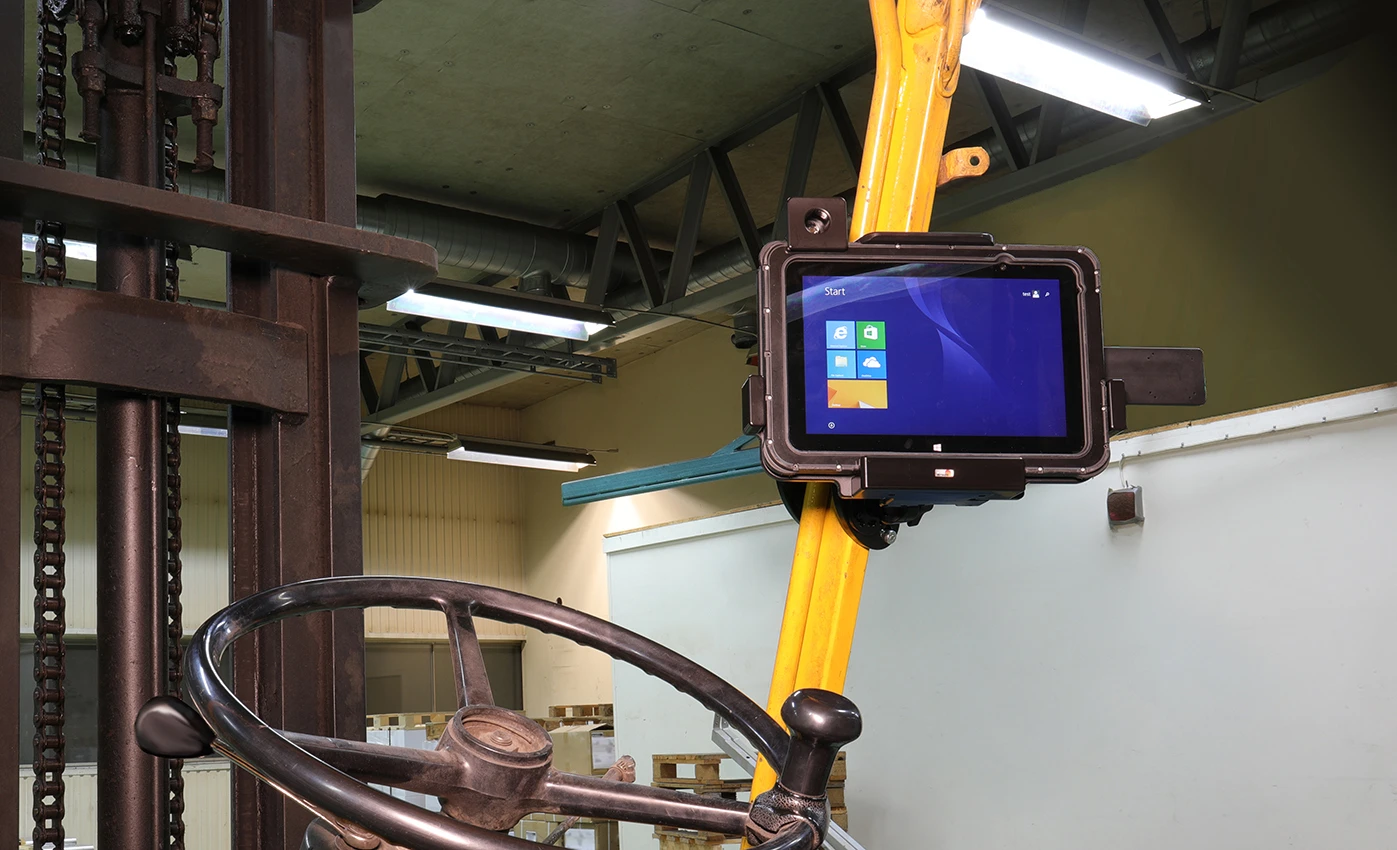

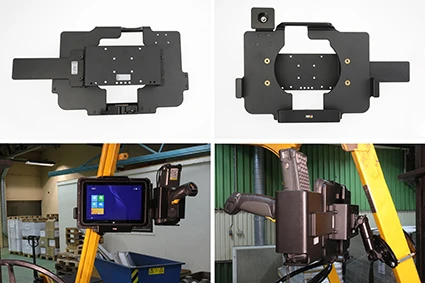

With an extension plate mounted onto your Module Upgrade Cradles you can attach another smaller device and easily carry it with you. The extension plate is mounted onto the back of your holder. The plate has dubble pre-drilled AMPS-holes in order to with Brodit holders with tilt swivel. The extension plate can be placed on either right or left side on the device.

Fits Module Upgrade holder with expansion back for Zebra ET4x 10", ET5x 10.1"

التعليمات

Read all of the instructions and look at the pictures before installing.

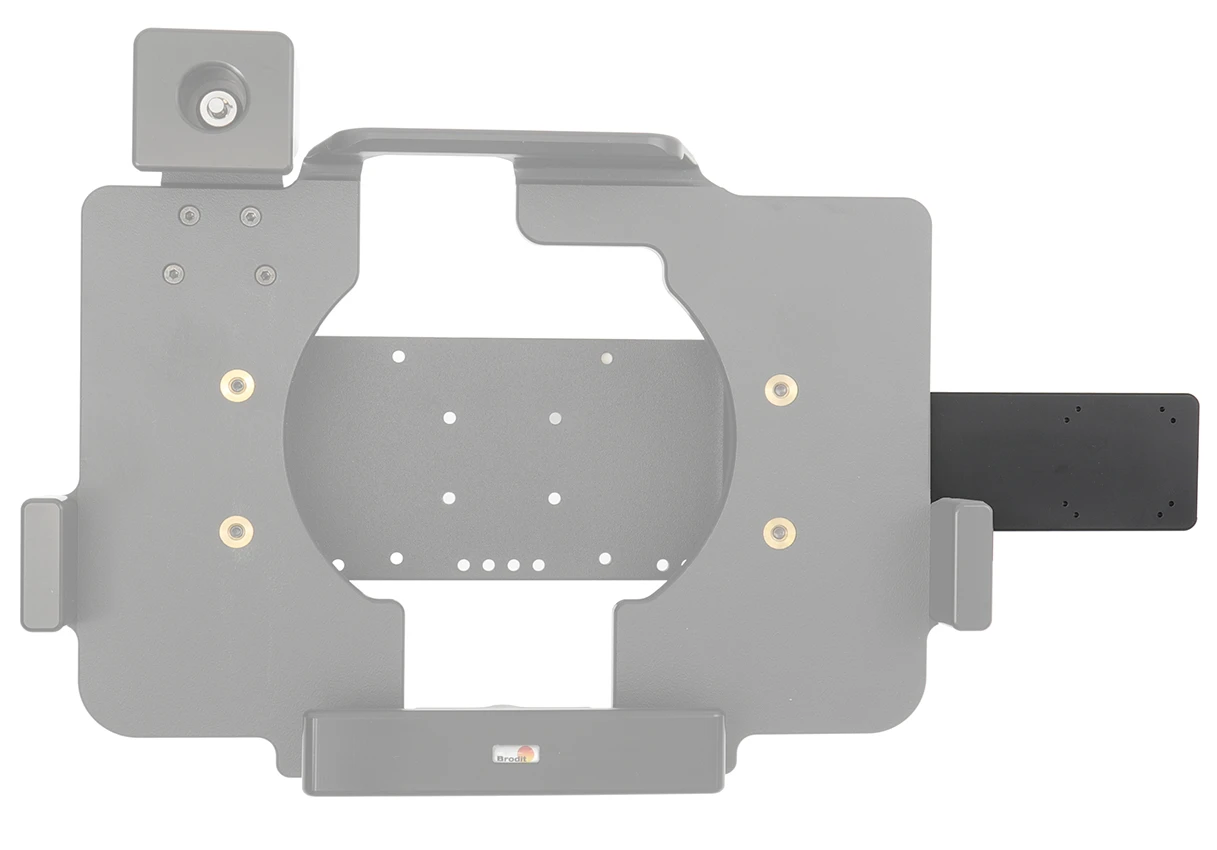

Please note: The extension plate can be placed on either side of the holder.

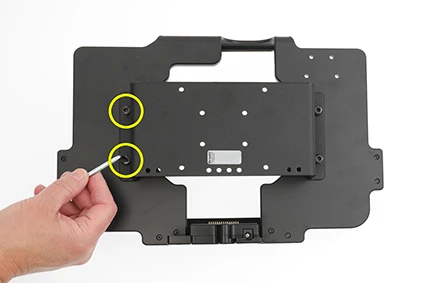

1. Turn the device back side up in order to demount the screws.

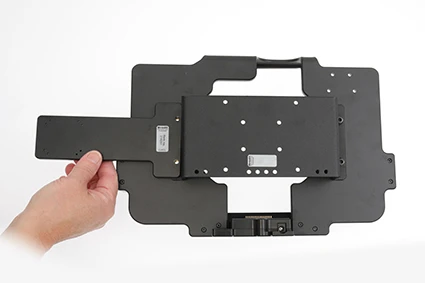

2. Place the extension plate over the holes.

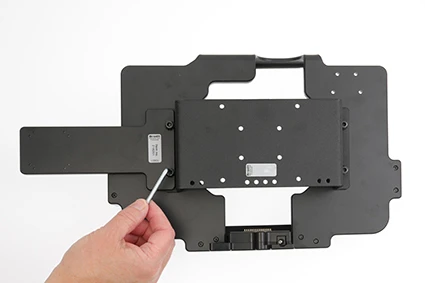

3. Attach the extension plate using the enclosed screws.

4. The extension plate is in place.

التوافق

• Pepperl+Fuchs : Tab-IND 10
• Zebra : ET56 10.1
• Zebra : ET55 10.1
• Zebra : ET51 10.1
• Zebra : ET50 10.1
• Zebra : ET45 10
• Zebra : ET40 10
