3-Port Expansion Hub with Mounting Cover

رقم الصنف : 217196

4K USB-C Hub with Mounting Cover

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

4K USB-C Hub with Mounting Cover

معلومات فنية

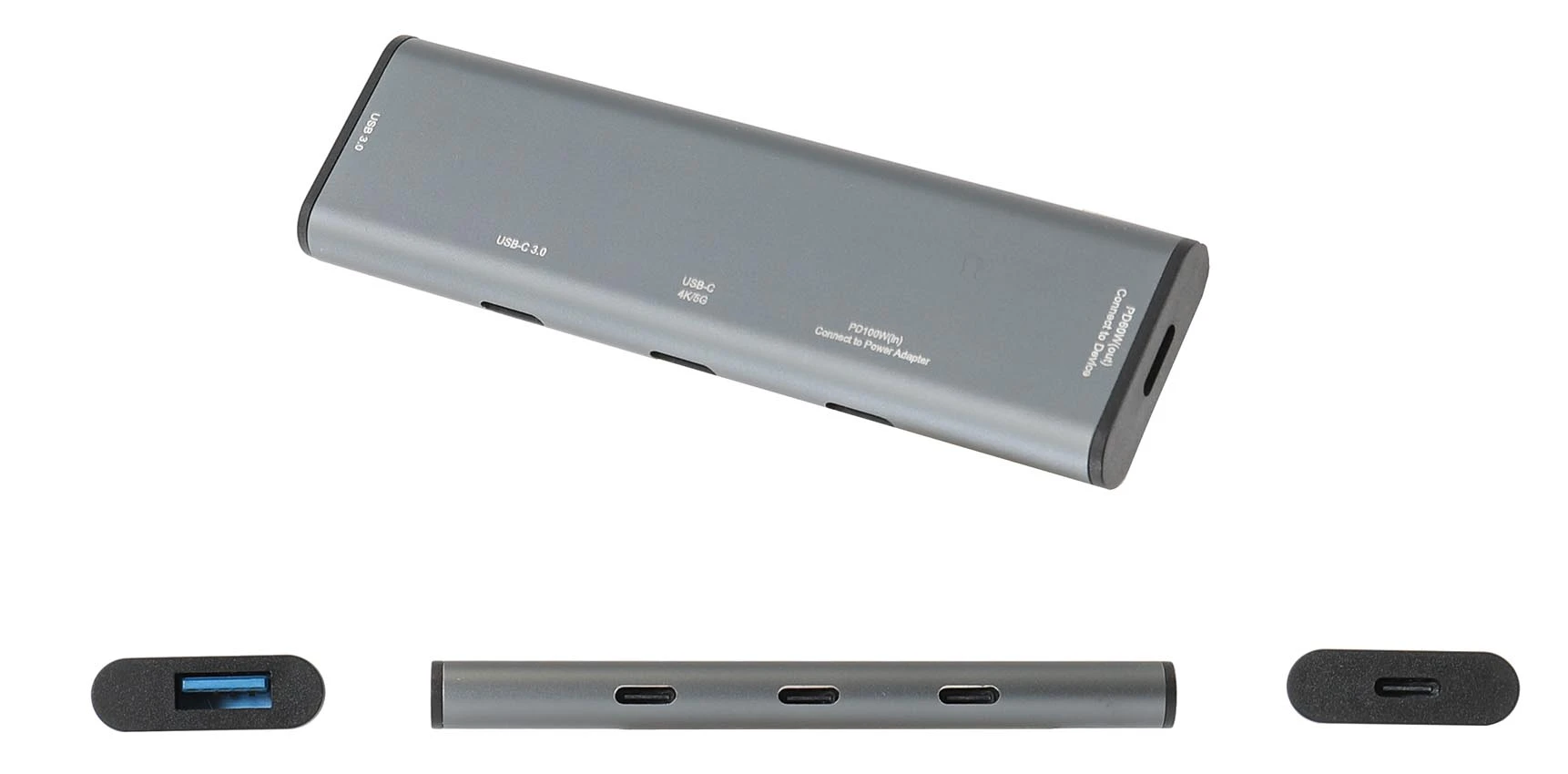

This compact and durable USB-C hub expands one USB-C port into three functional ports: one USB-A and two USB-C connections for data transfer, charging, and 4K video output.

It allows you to charge your device while simultaneously connecting accessories such as USB drives, keyboards, scanners, mice, speakers or external displays – all through a single hub.

The included mounting cover features cable retention that allows you to secure connected cables using cable ties, preventing them from shaking loose or disconnecting during use. It is designed to mount easily onto existing ModTek Docks and selected USB-C charging tablet holders using the included fastener kit – no tools required.

Function:

USB-A 3.0: 5 Gbps data transfer, 7.5 W max output charging

USB-C 3.0: 5 Gbps data transfer, 7.5 W max output charging

USB-C 4K/5G: 4K video and audio output, 5 Gbps data transfer, 15 W max output charging

USB-C PD input: Connect to power adapter, supports up to 100 W Power Delivery

USB-C PD output: Connect to device, supports up to 60 W Power Delivery

التعليمات

Please read all of the instructions and look at the pictures before attaching the module.

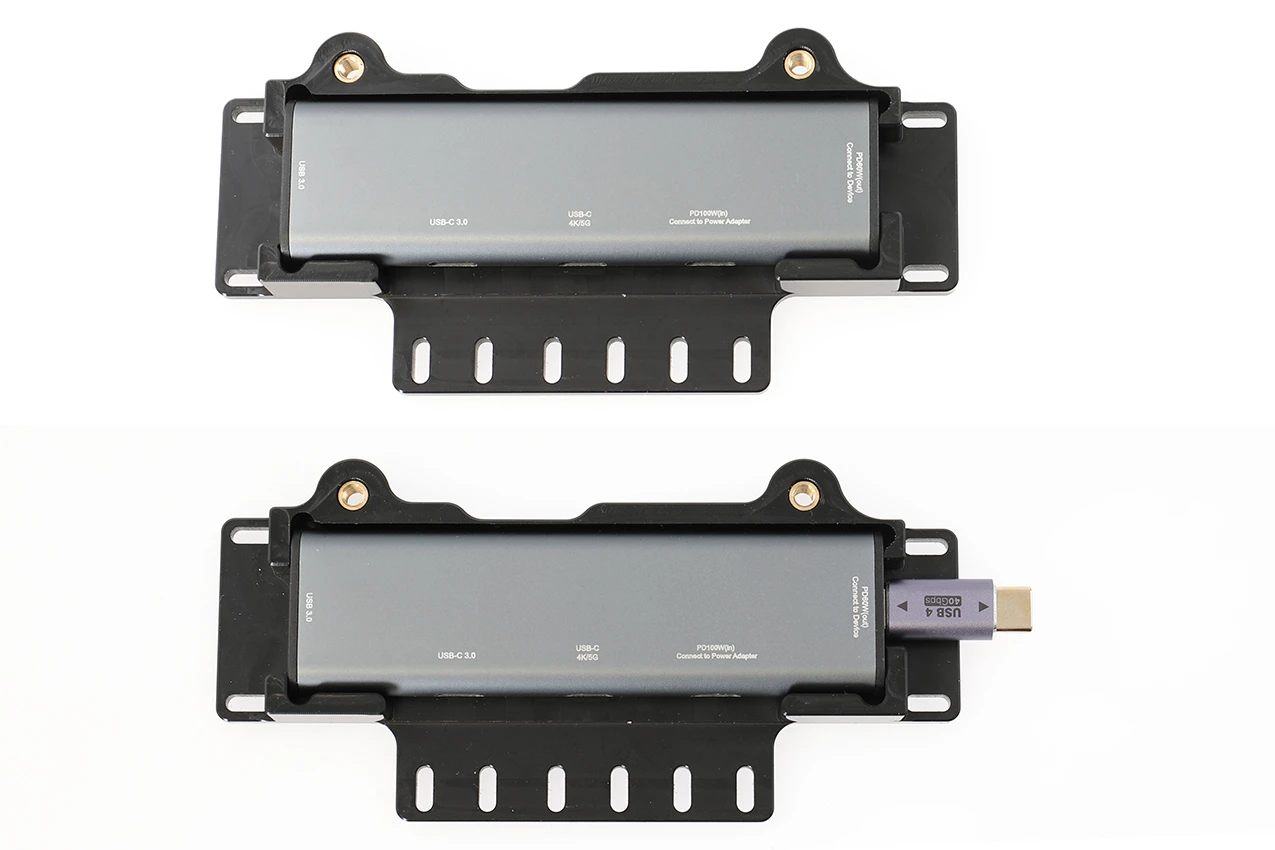

1. Hub and Cover: Before installing the hub, it needs to be inserted into the cover. Ensure the hub ports align with the cable retention slots as shown in the pictures. The included USB-C male to male adapter included is used to connect the hub directly to the back of the USB-C 3.1 dock.

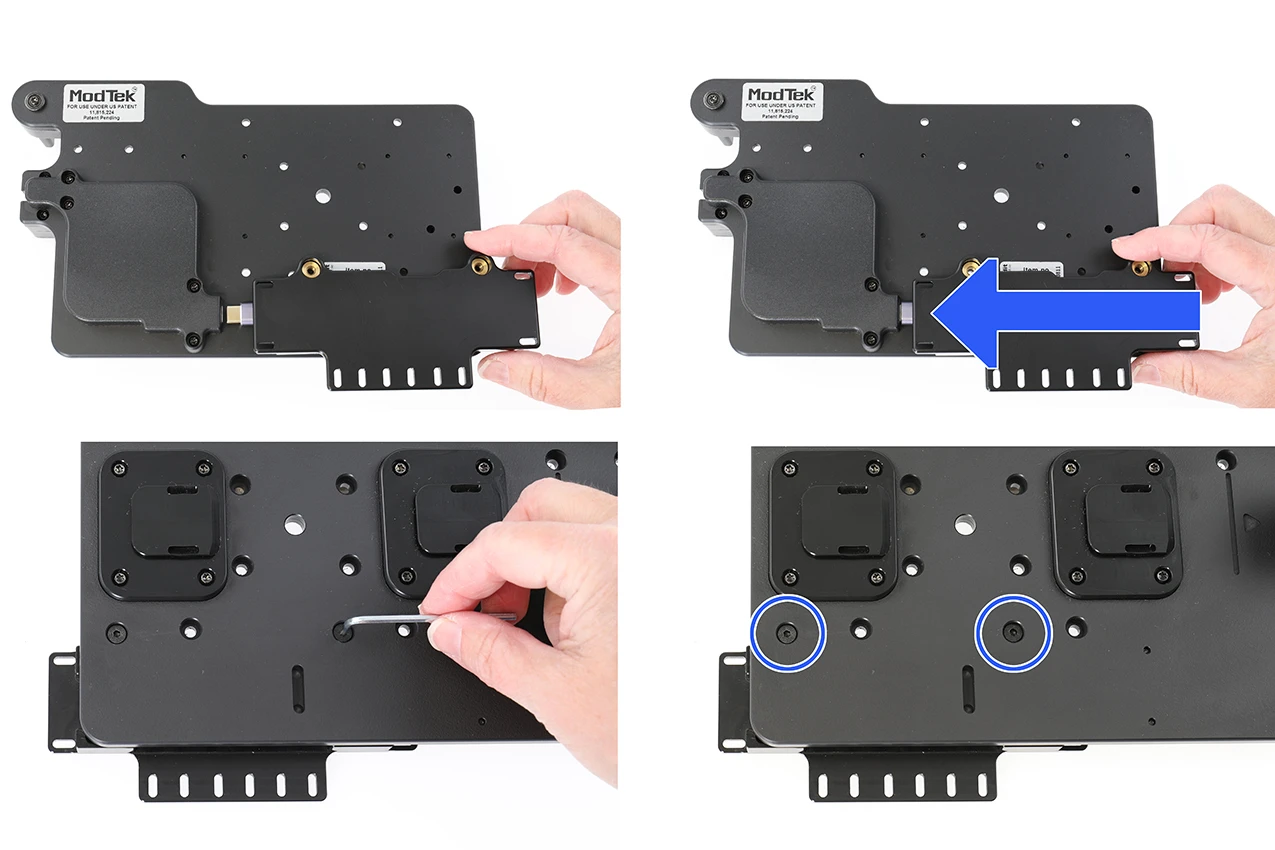

2. Slide the hub and cover onto back of the dock ensuring the USB-C adapter engages into the hub and secures it. Secure the Hub: Using the included fasteners and tool, secure the hub cover to the dock.

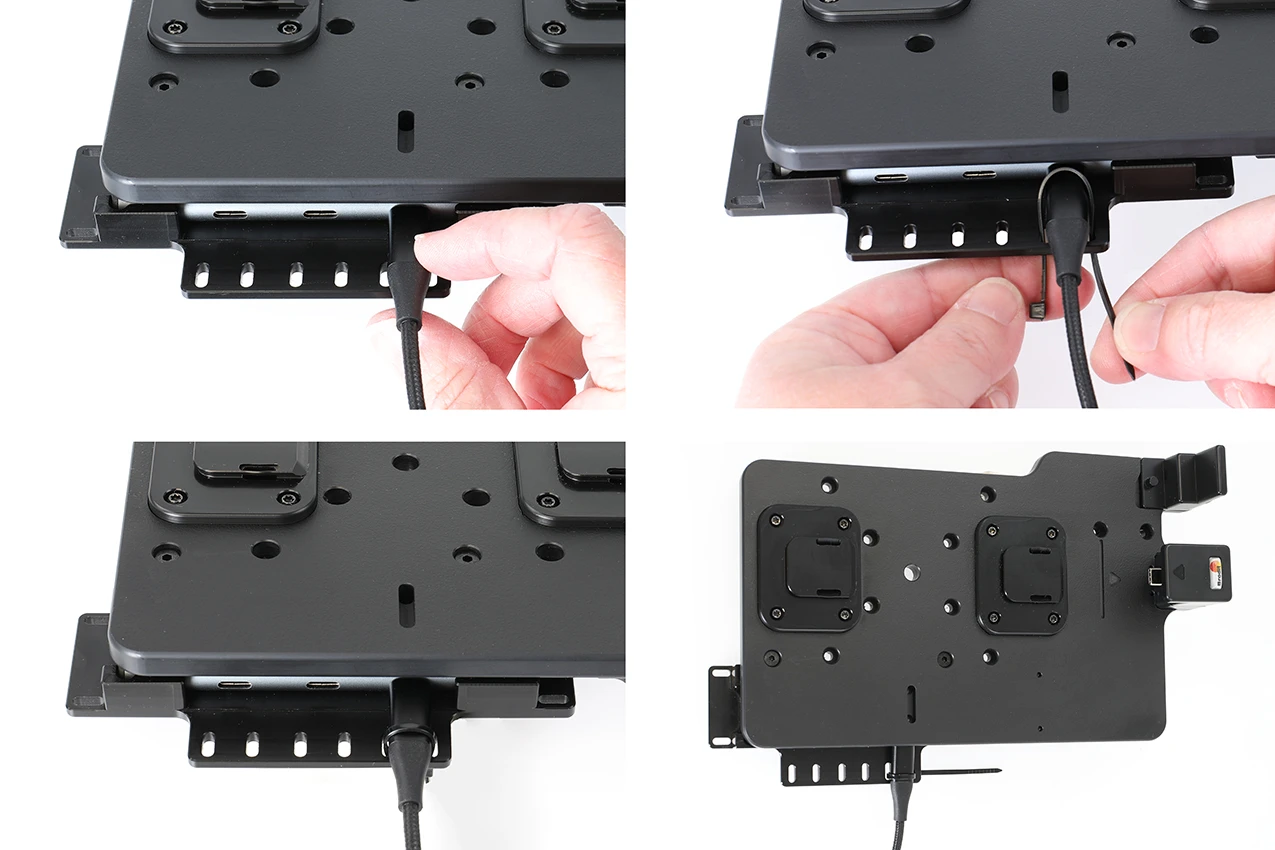

3. Secure any USB cables with the included Zip ties as shown in the pictures.

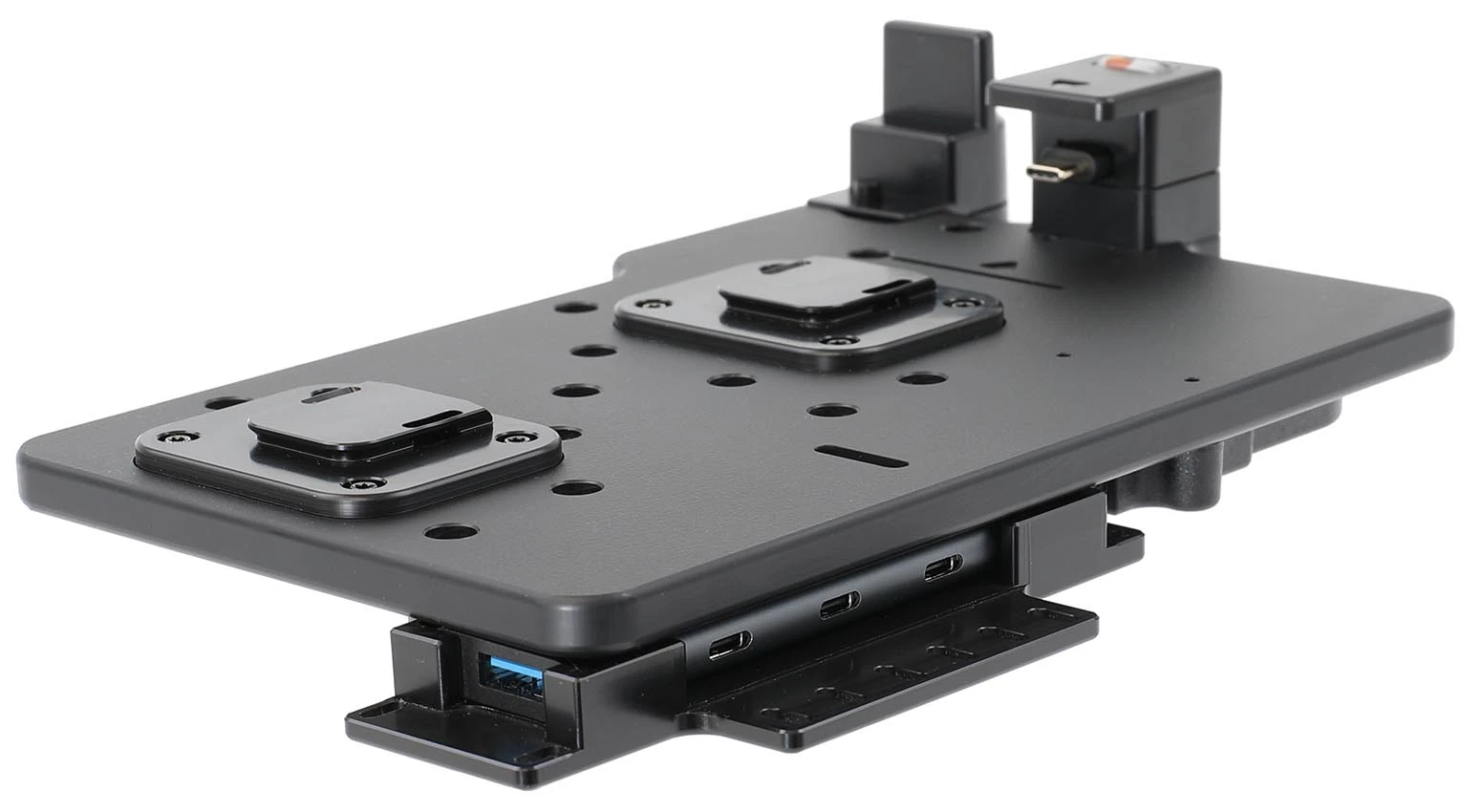

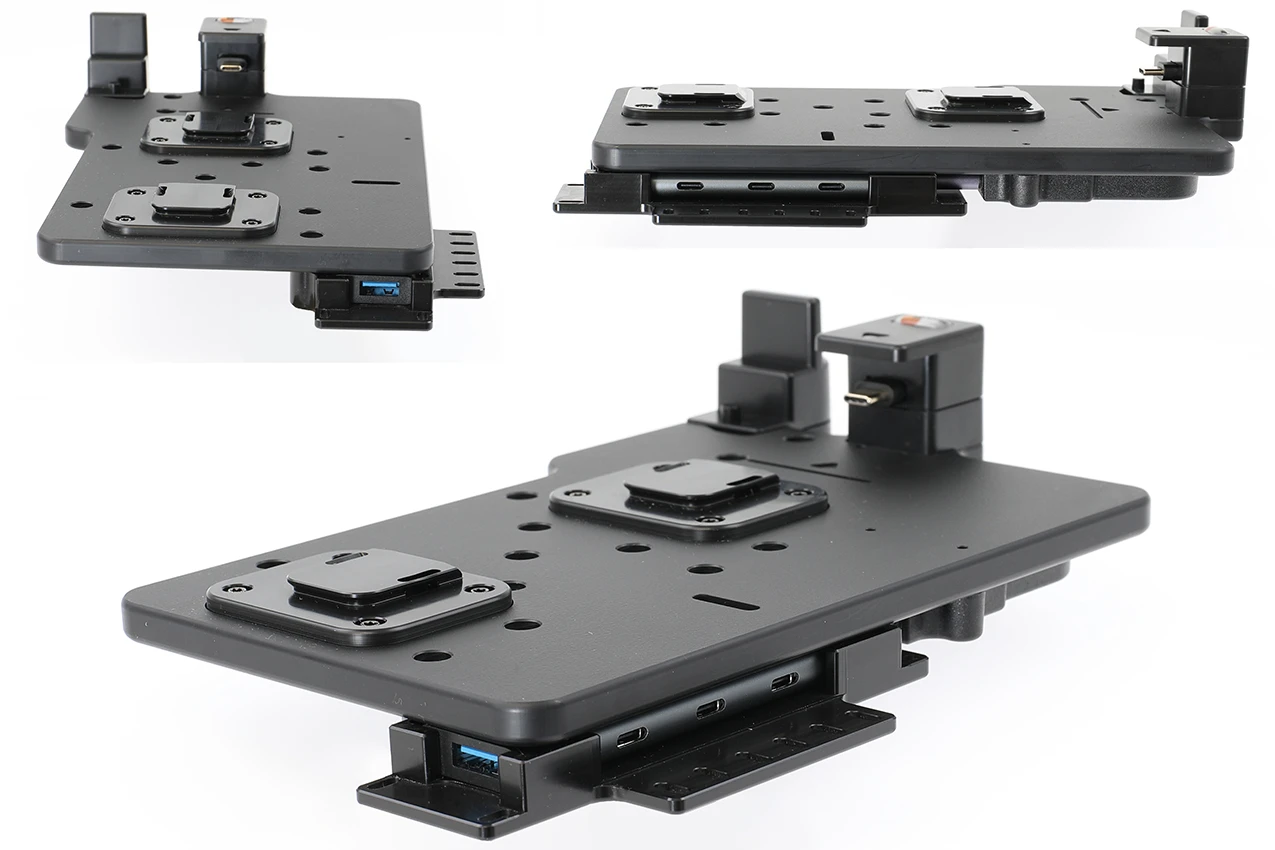

4. The holder and hub is in place.
